Cooling System - Cooling Fan Circuit Change

Group:
ELECTRICAL

Number:
2-90-012

Date:
NOVEMBER, 1989

Model:
SONATA ALL

Subject:
COOLING FAN CIRCUITS

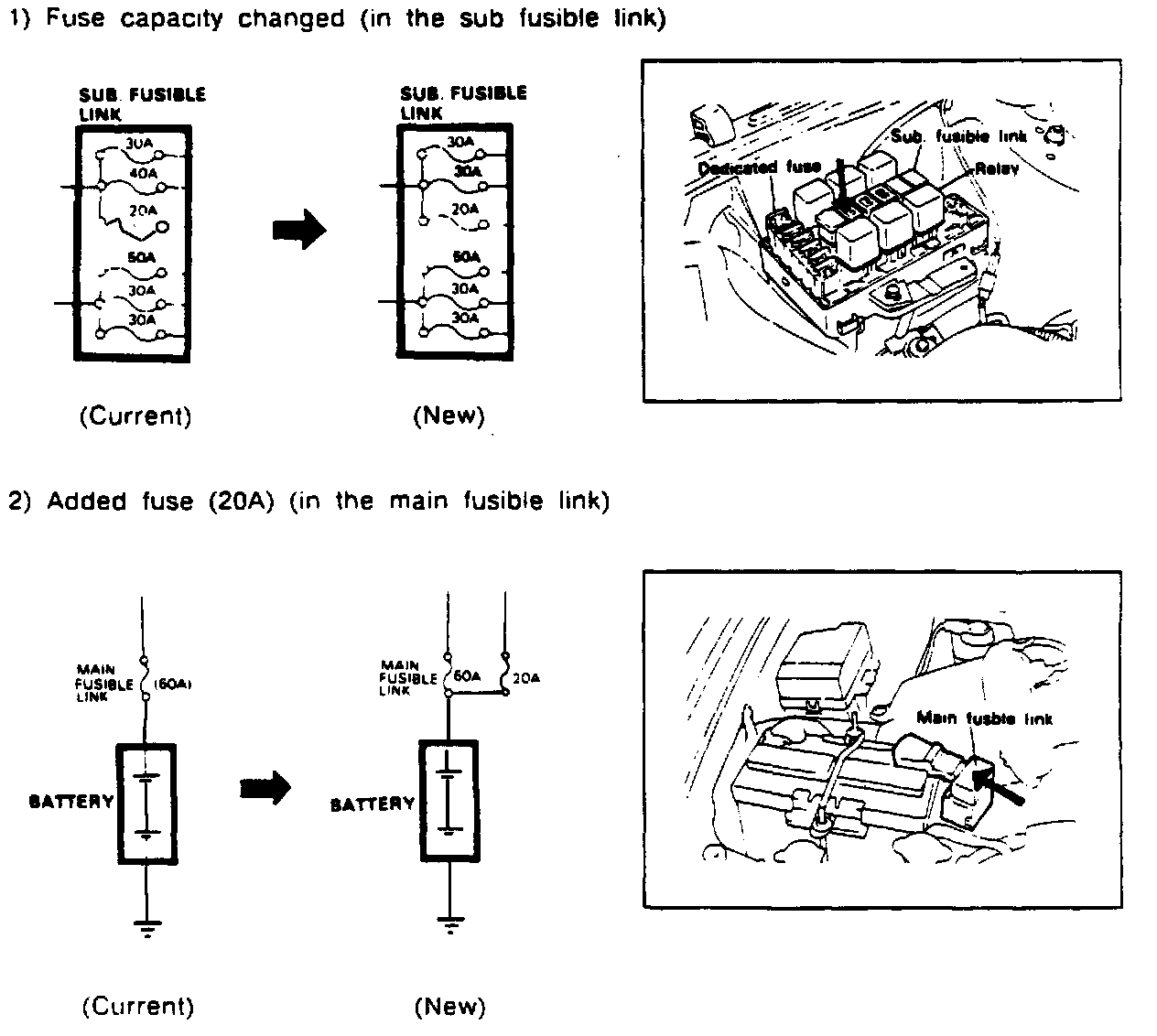

The circuits for the radiator fan motor and the condenser fan motor have been separated. As a result, the 40 amp sub fusible link capacity has been reduced to 30 amps. Additionally, a 20 amp sub fusible link for the new condenser fan circuit has been added at the main fusible link location.

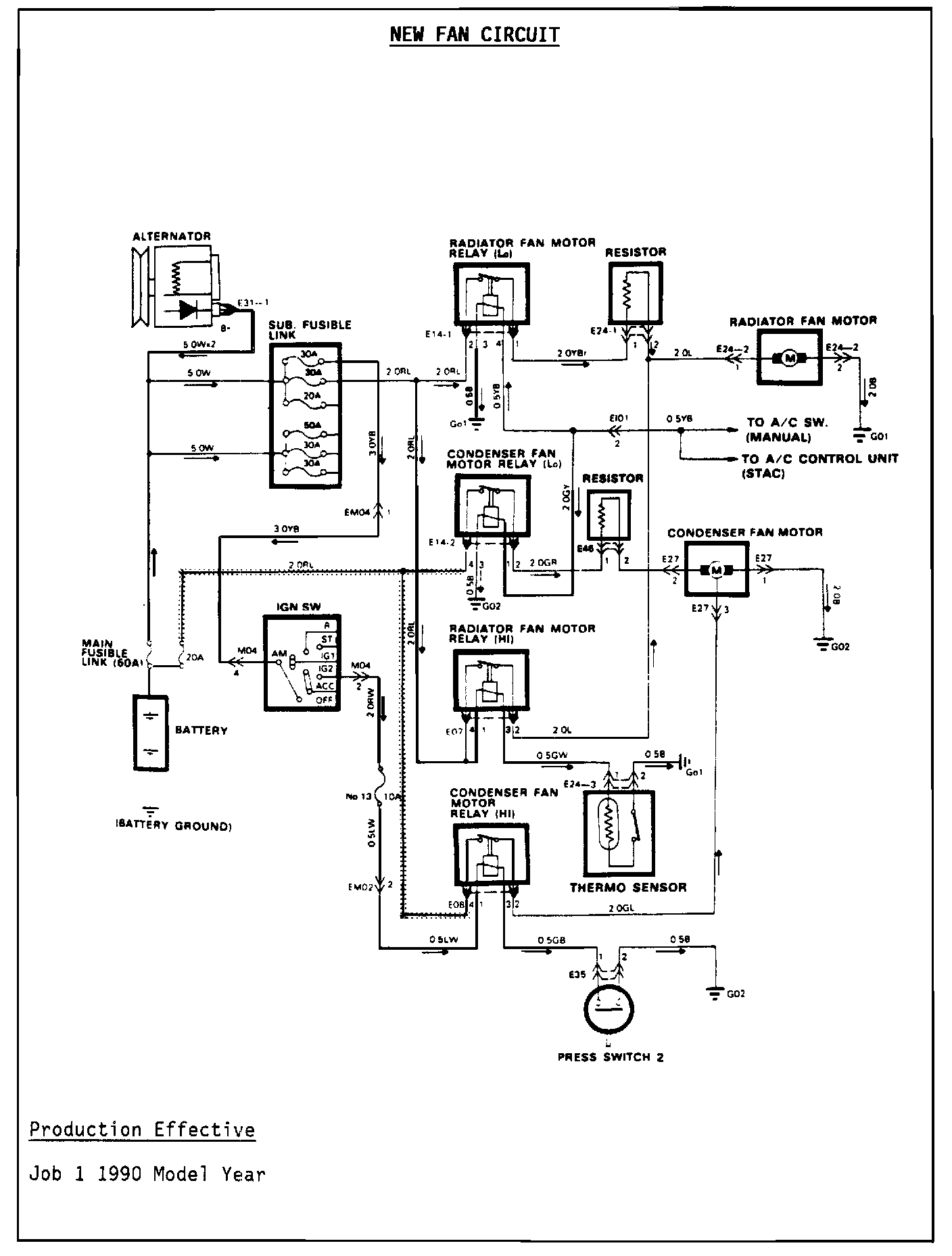

A circuit diagram of this change is shown.
