A/T Valve Body - Manual Correction

Group: TRANSAXLE
Number: 93-40-014-1
Date: OCTOBER, 1993
Model: SONATA, SCOUPE, ELANTRA, 1990-CURRENT EXCEL

Subject:
ATM UPPER VALVE BODY DIAGRAM

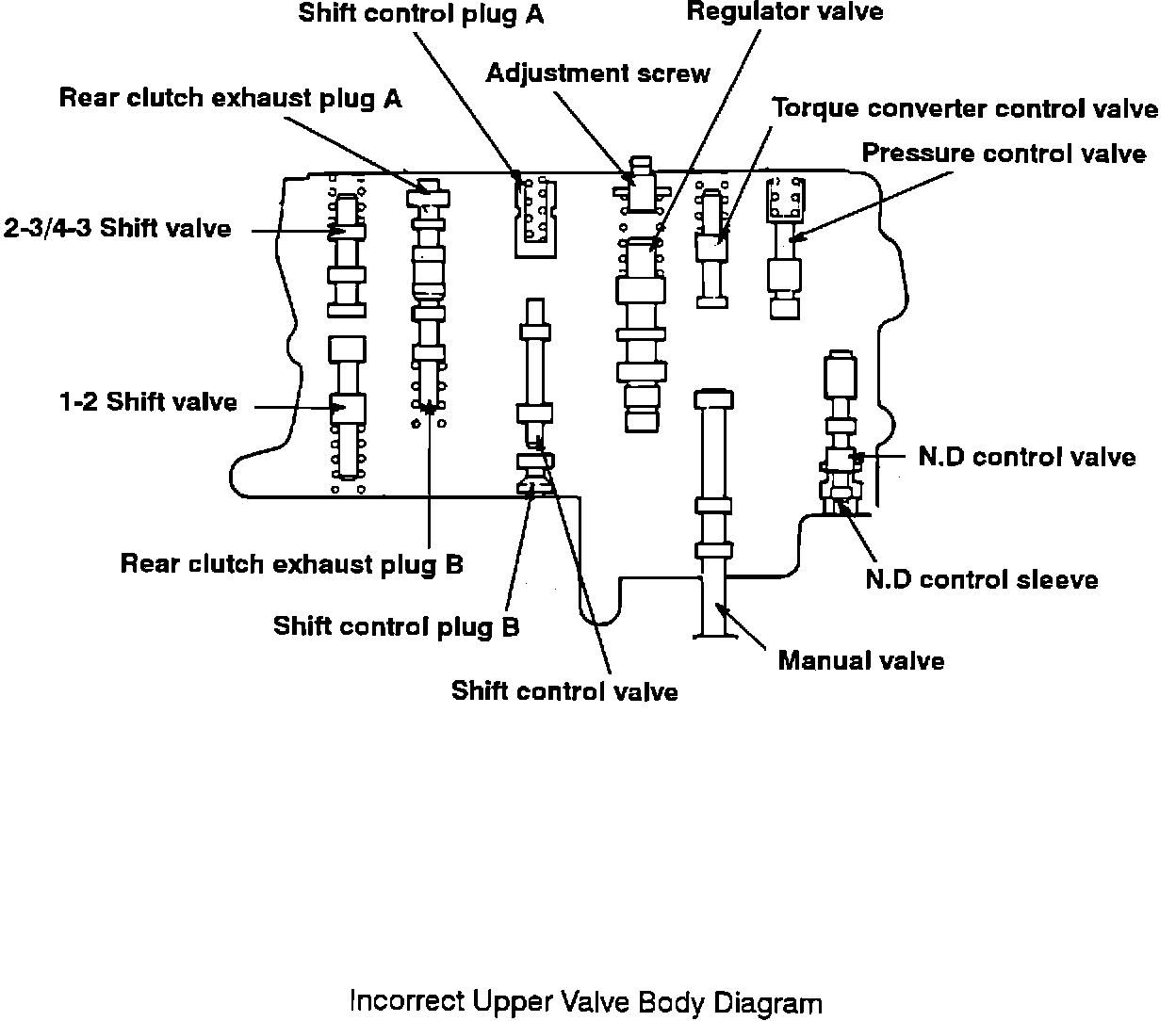

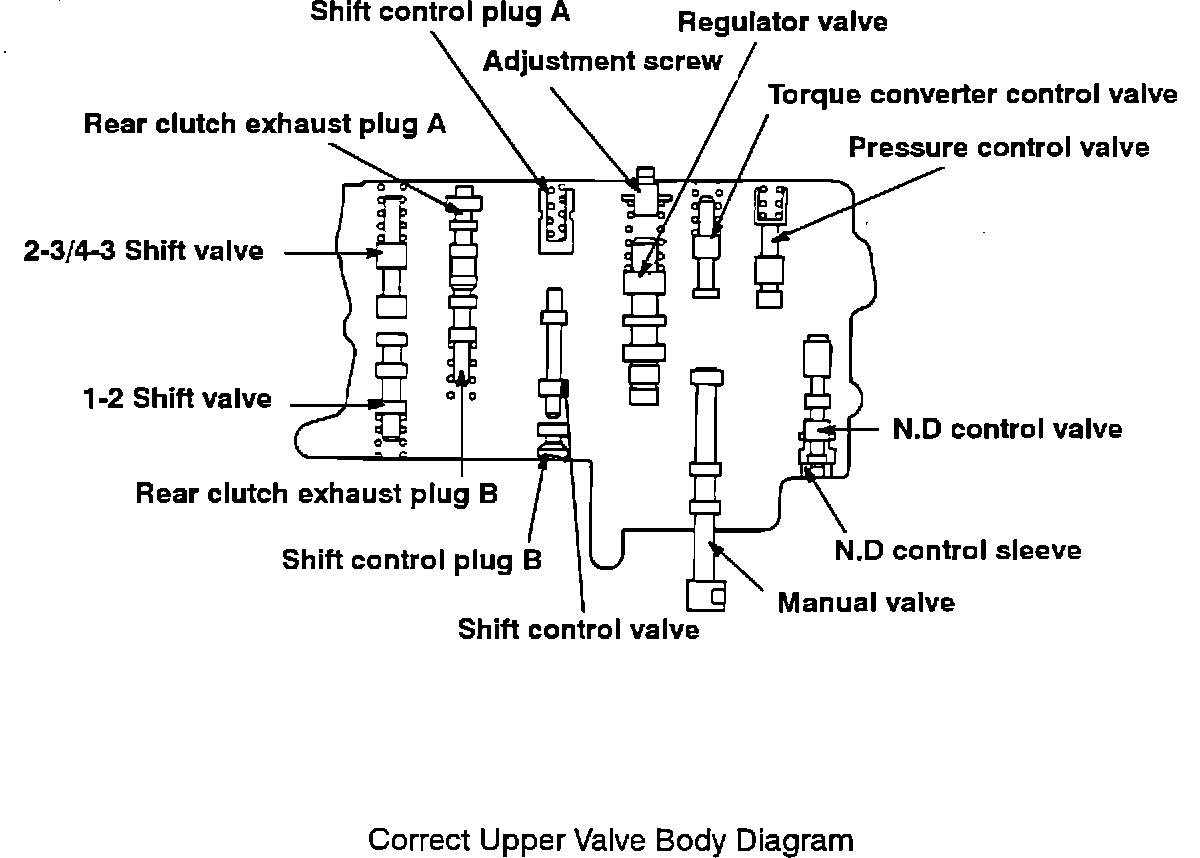

Some 1992 and earlier ATM upper valve body diagrams in the shop manual are incorrect. The 2-3/4-3 shift valve and 1-2 shift valve are reversed. The 2-3/4-3 shift valve has 2 lands and the 1-2 shift valve has 3 lands. For the correct shift valve configuration and location, see the diagrams.
