Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
California
>>
Vacuum Hose Routing
Vacuum Hose Routing

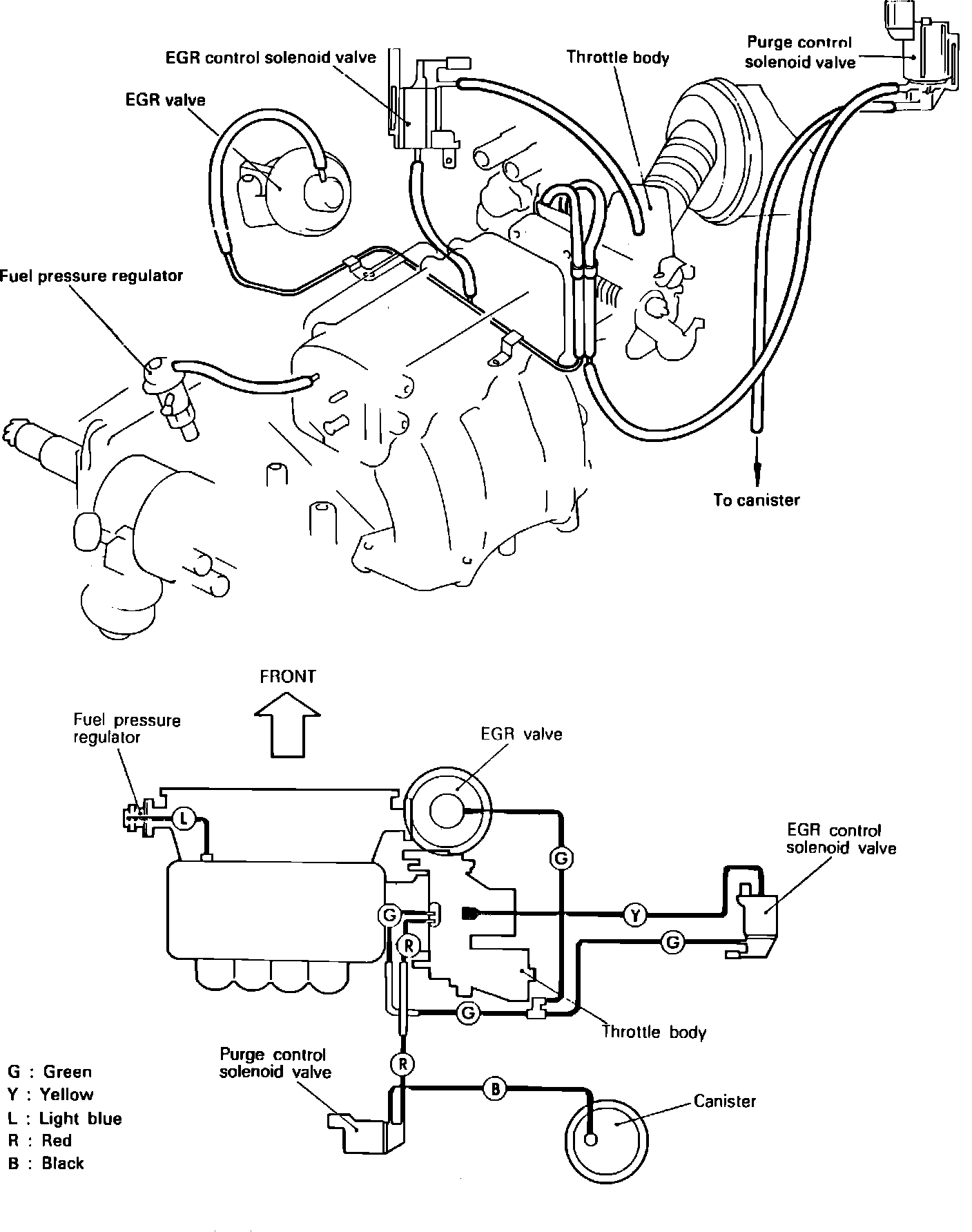

Vacuum Hose Routing Diagram:
