Vacuum Brake Booster: Adjustments

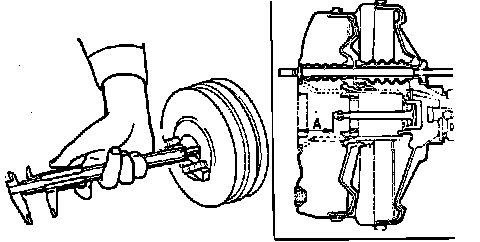

Fig. 7 Brake Booster Push Rod Clearance:

1. Measure dimensions A as shown in Fig. 7.
2. Brake booster push rod clearance, dimension A, should be 1.470-1.482 inch at 19 1/2 inches Hg of vacuum. If not within specifications, adjust push rod length.
