Wheel Speed Sensor: Service and Repair

Front Wheel Sensors

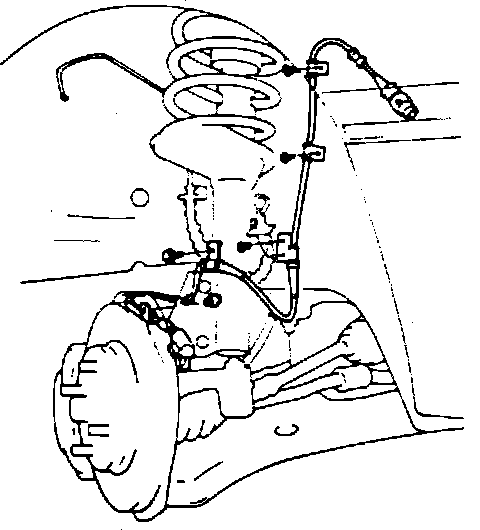

Fig. 17 Front Wheel Sensor:

1. Disconnect sensor electrical connector, Fig. 17, then remove sensor cable and sensor head mounting bolts.
2. Remove sensor.
3. Reverse procedure to install.

Rear Wheel Sensors

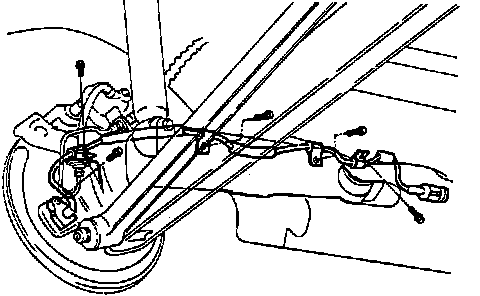

Fig. 18 Rear Wheel Sensor:

1. Disconnect sensor electrical connector, Fig. 18, then remove sensor cable and sensor mounting bolts.
2. Remove sensor.
3. Reverse procedure to install.
