Passive Seat Belts - Control Unit Change

89hyundai05

Subject


PASSIVE SEAT BELT CONTROL UNIT CHANGE
Group: ELECTRICAL


Number: 009


Date: JULY, 1989


Model: SONATA

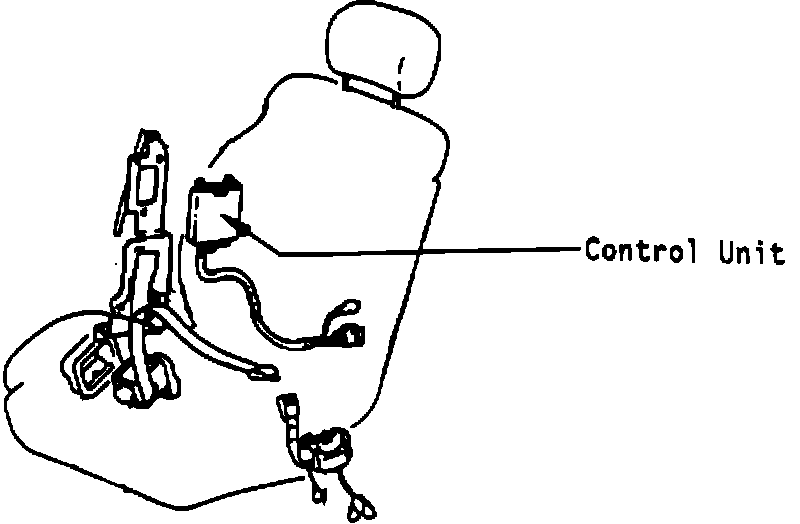

Effective March 7, 1989, the control unit for the passive seat belt system was changed from an ignition key-in type to an ignition key-on type.

The control units are NOT interchangeable.

Production Change Effective

March 7, 1989

Part Number Information

Old Part Number New Part Number

94490-33000 94490-33010

Interchangeability

Code N, NONE
