A/T - Wiring Diagram

89hyundai02

Group:

TRANSMISSION/DRIVELINE

Number:

004

Date:

MARCH 1989

Model:

SONATA
Subject:

AUTOMATIC TRANSMISSION WIRING DIAGRAM

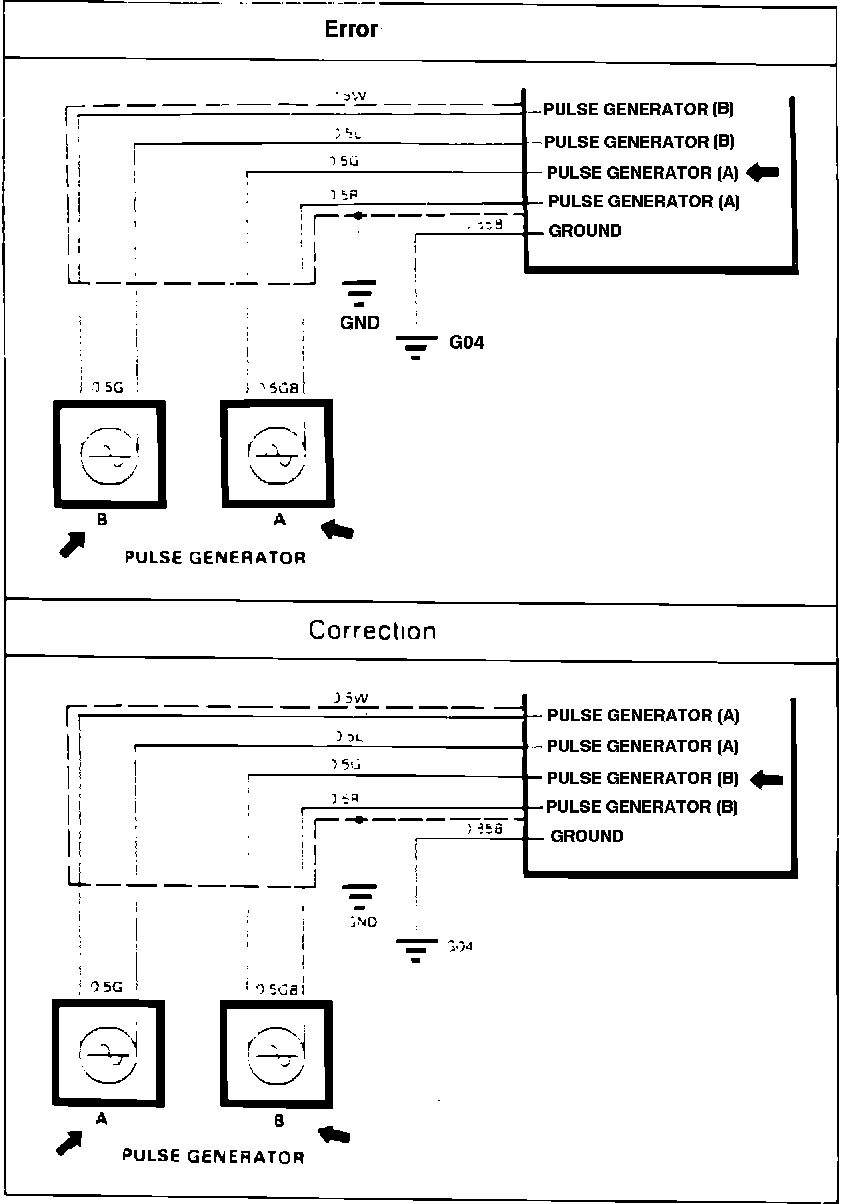

There is an error in the wiring diagram on page WS-13 of the Sonata Shop Manual (YEAS-880802) wiring diagram of the electronic lock up control transmission's A & B pulse generators. There are two illustrations of this circuit in the manual. The circuit illustration on page 45-29 is correct. See the correction for page WS-13 below.
