Home
>>
Hyundai
>>
1989
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
California
>>
Complete System Diagram
Complete System Diagram

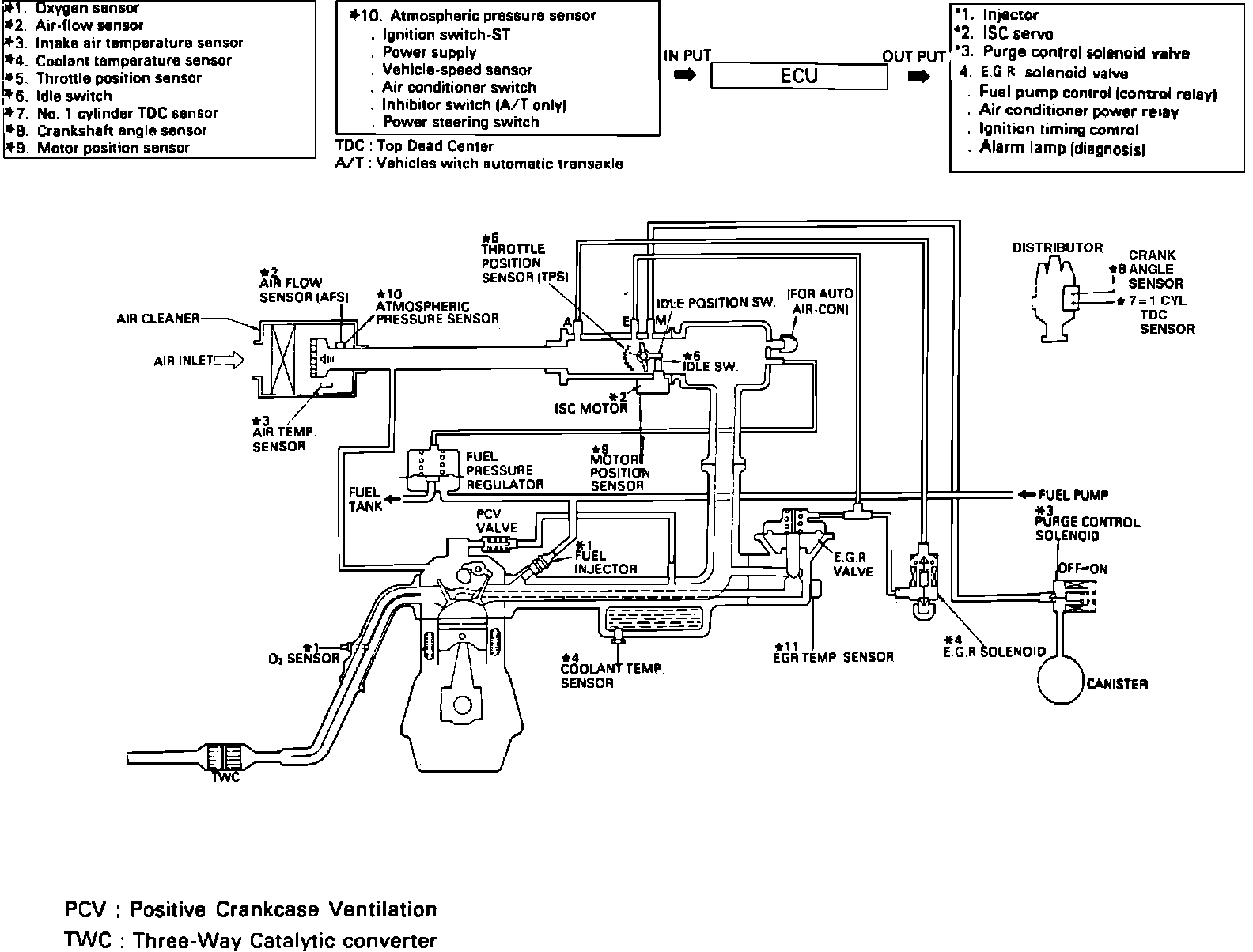

Complete Emission Control System Diagram:
