A/C - Thermo Cutout Addition
89hyundai04Subject: A/C THERMOT CUTOUT ADDITION
Group: ENGINE
Number: 008
Date: APRIL
Model: SONATA
An air conditioning compressor thermo cutout has been added to all factory A/C equipped Sonatas. The sensor turns off the A/C compressor when engine coolant temperature reaches 240~F (115~C) to reduce the possibility of engine overheating.
Production Change Effective
Date VIN
2/1/89 KMHBF21S4KU051270
Part Number Information
Part Name Old Part Number New Part Number
Radiator Ass'y 25310-33050 (AT) 25310-33B00 (AT)
25310-33000 (MT) 25310-33A00 (MT)

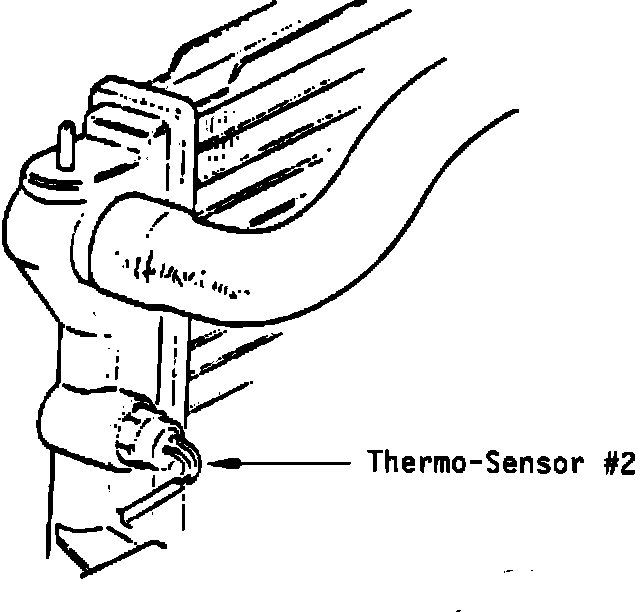

Thermo-Sensor # 2 ----- 93920-33000
Wiring Ass'y, Engine 91201-33051 (AT) Same
91201-33151 (MT) Same
Interchangeability
Only when all related parts are changed as a set.
