Rocker Arm Assembly: Service and Repair

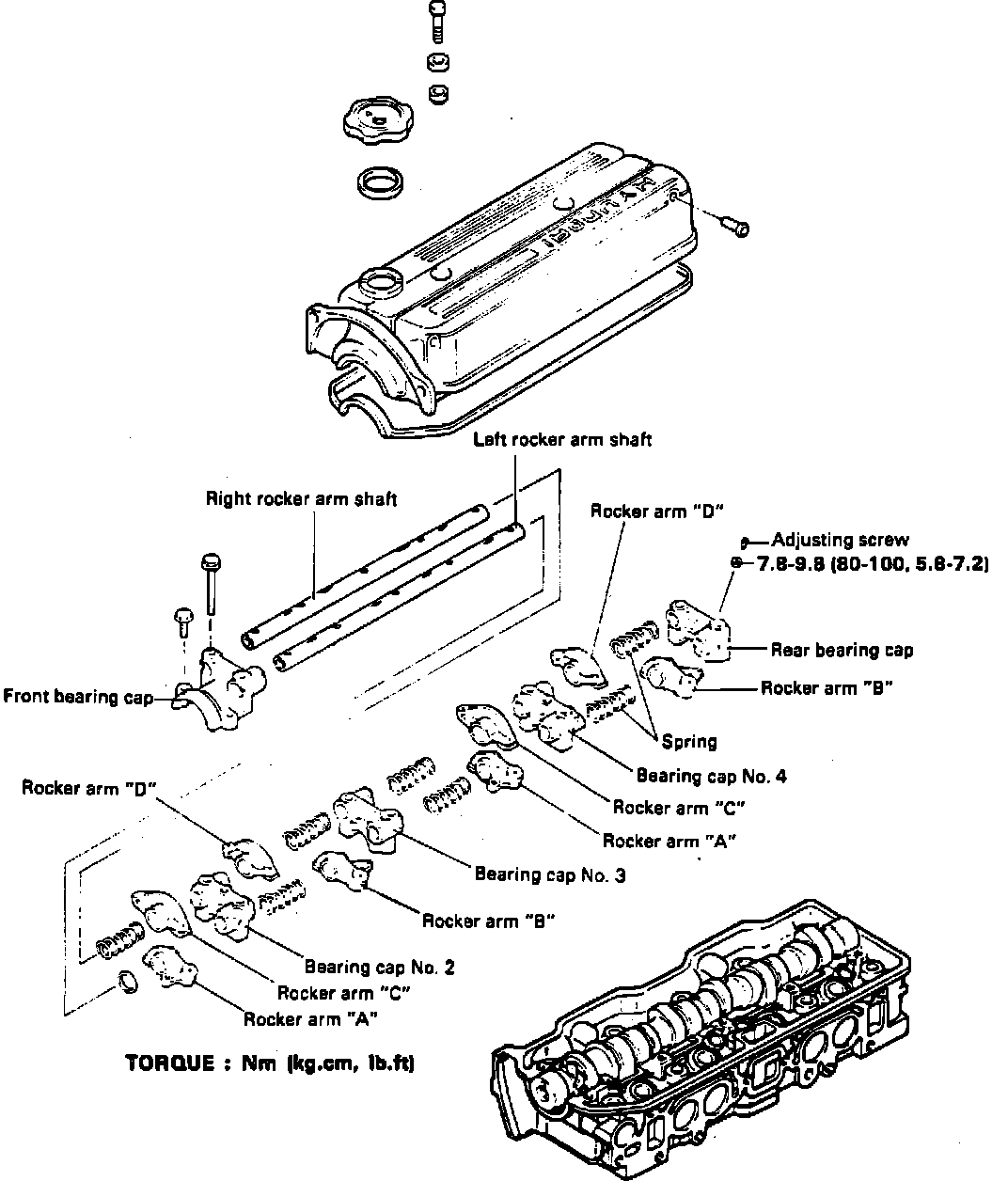

Fig. 14 Exploded View Of Rocker Arm & Rocker Arm Shaft Assemblies:

Prior to removing or installing rocker arm and rocker arm shaft assemblies, Fig. 14, use auto lash adjuster holders 09246-32000 or their equivalents to secure lash adjuster in rocker arms. Ensure intake and exhaust rocker arms and rocker arm shafts are installed in their proper positions.
