Air Injection Vacuum Control Solenoid Valve: Description and Operation

Secondary Air Control System (Federal):

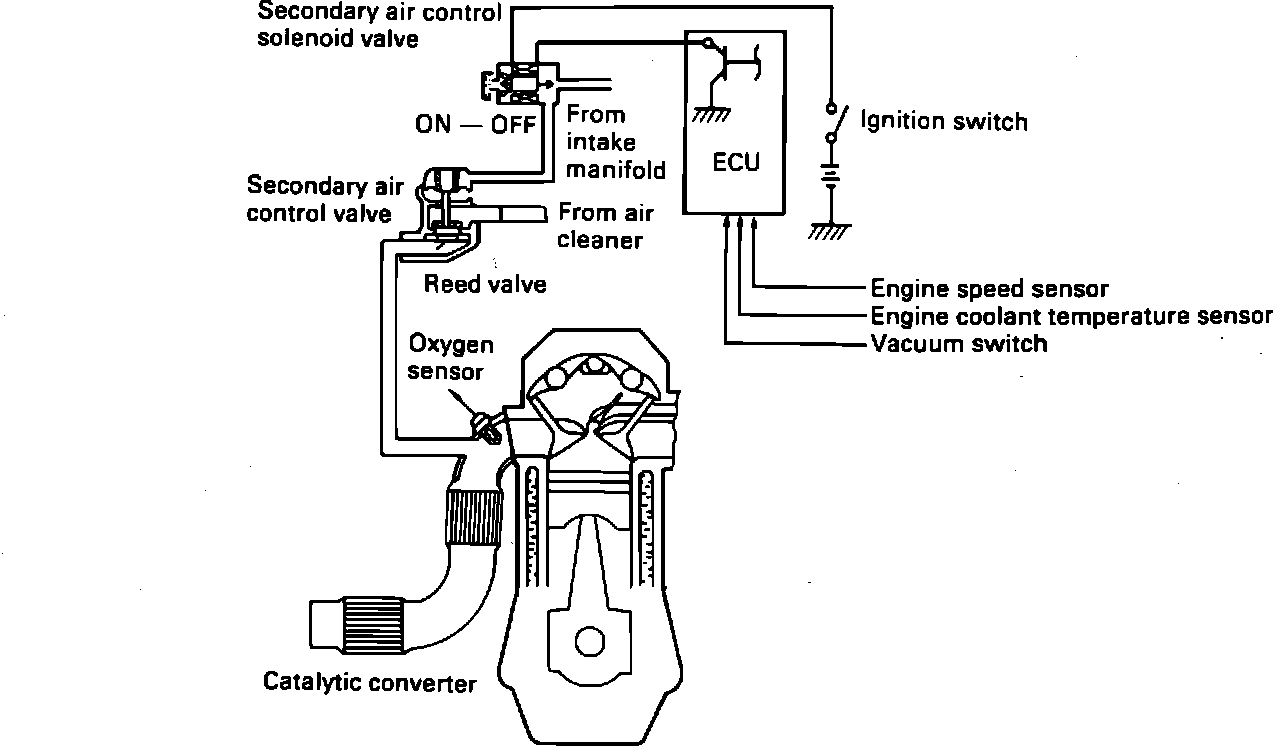

Secondary Air Control System (California):

The ECU controls the Secondary Air Control Solenoid Valve in response to the inputs it receives from the engine speed sensor, engine coolant temperature sensor and the vacuum switch. For more detail on how this affects the operation of the pulse air system, refer to EMISSIONS.
