Home
>>
Hyundai
>>
1988
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
Heated Glass Element

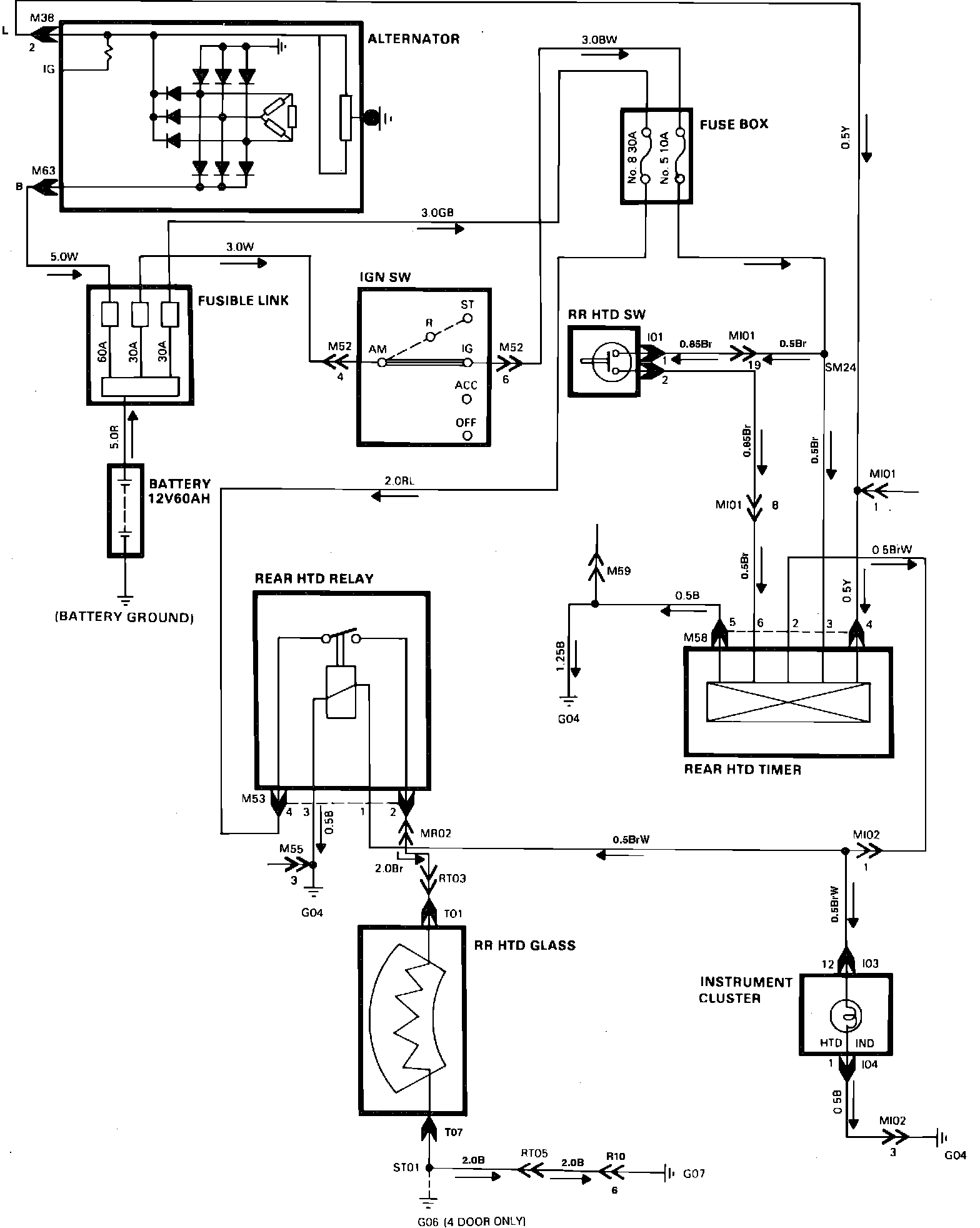

Fig. 21 Rear Defogger Wiring Diagram:
