Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

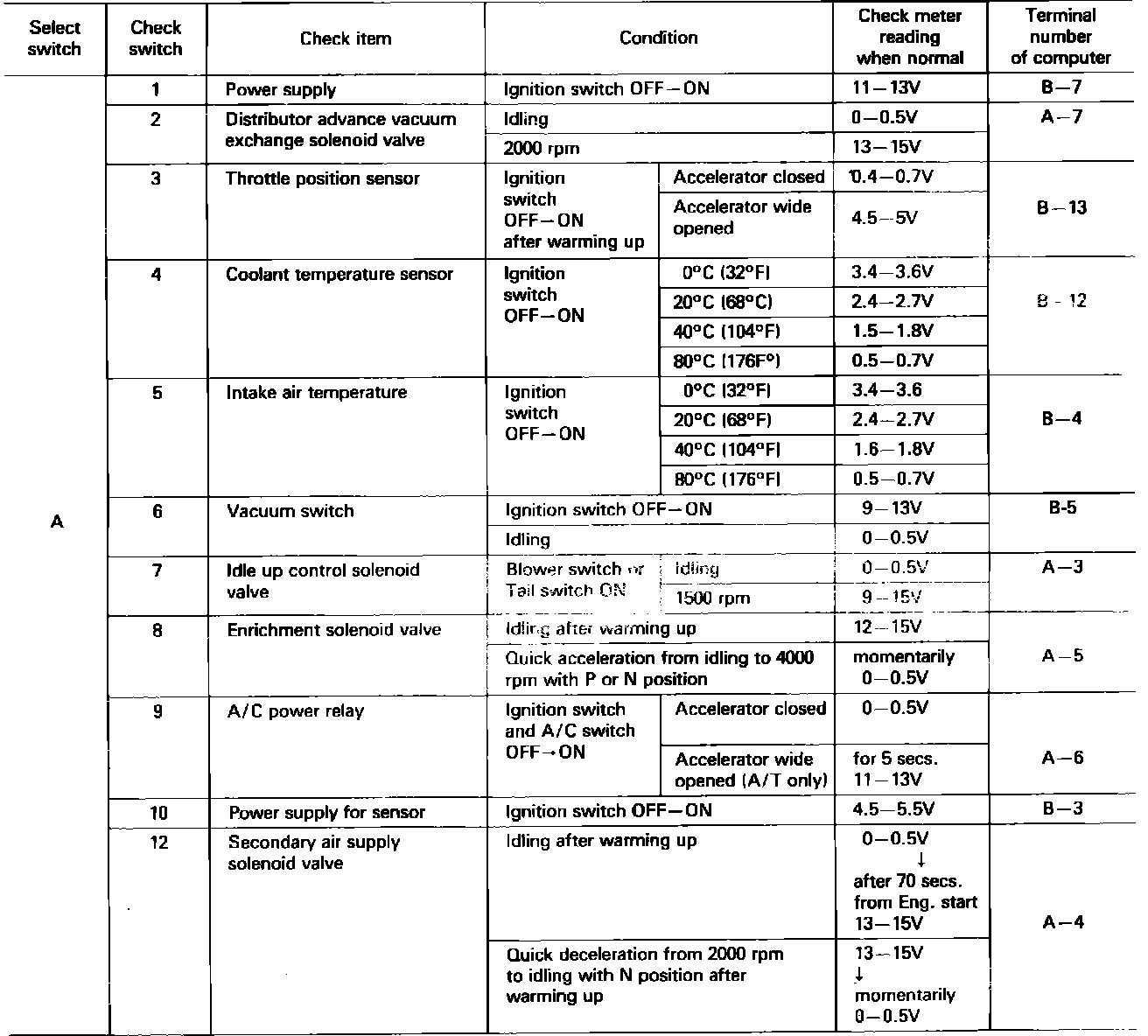

Fig. 7a Feedback carburetor system diagnostic chart.:

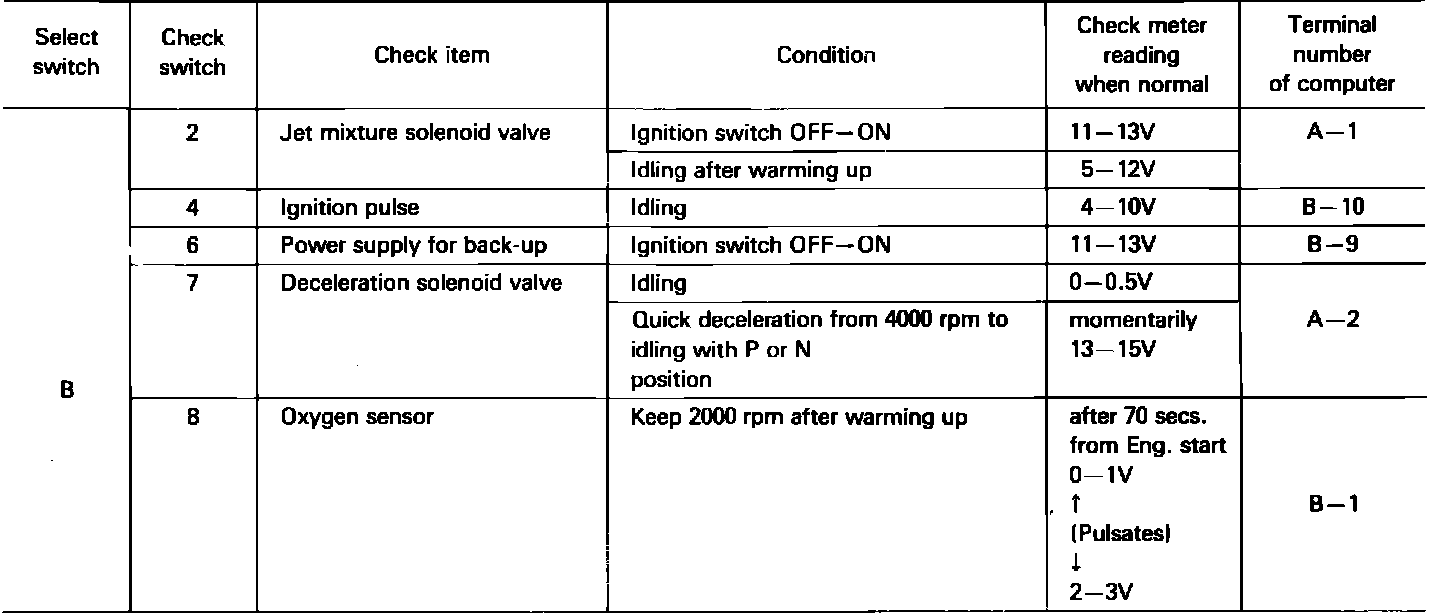

Fig. 7b Feedback carburetor system diagnostic chart.:
