Hyundai
>>
1986
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate

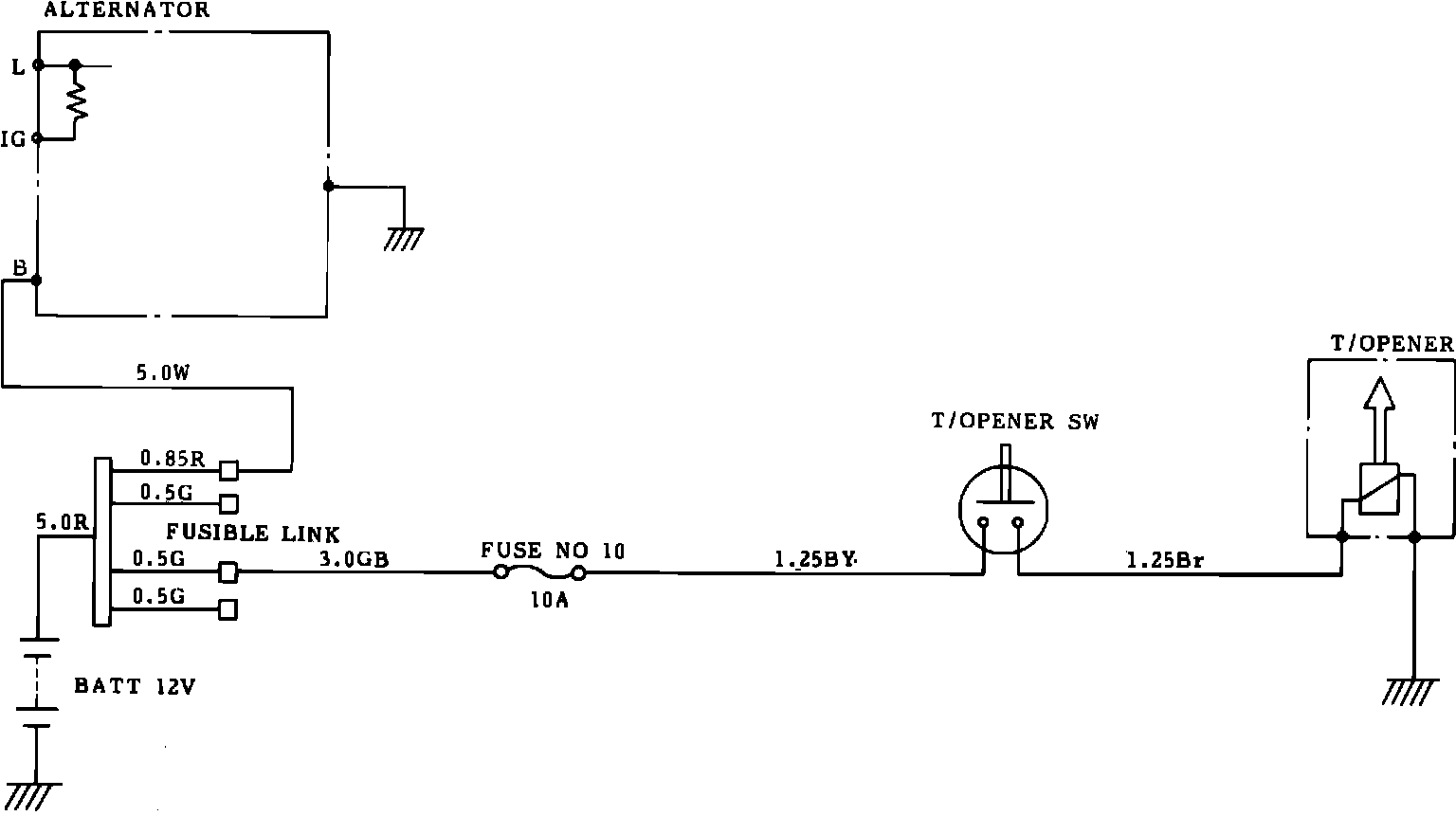

Tail Gate & Trunk Lid Opener System Wiring Circuit:
