Center Mounted Brake Lamp: Service and Repair

Removal

High Mounted Stop Lamp
1. Disconnect the negative (-) battery terminal.
2. Remove the tailgate trim.

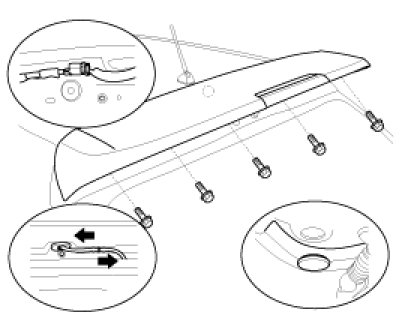

3. Remove the high mounted stop lamp assembly after removing a 1 cap nut and 5 bolts, then remove the spoiler.

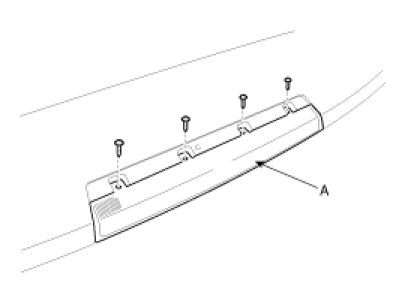

4. Remove the spoiler lamp cover and loosening the screw (4EA). And then remove the high mounted stop lamp(A).






Installation

1. Install the high mounted stop lamp and spoiler lamp cover.
2. Install the high mounted stop lamp assembly.
3. Install the tailgate trim.
