Hyundai Truck
>>
2011
>>
Veracruz AWD V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Restraints and Safety Systems
>>
System Diagram
>>
AUTOLIV
AUTOLIV

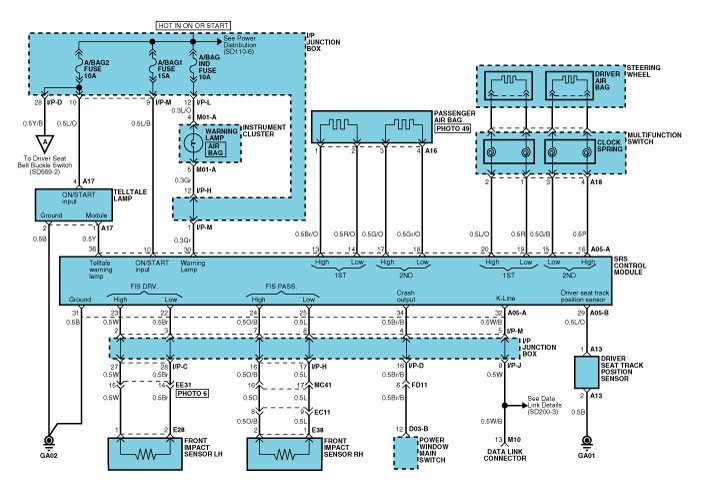

Circuit Diagram (1)

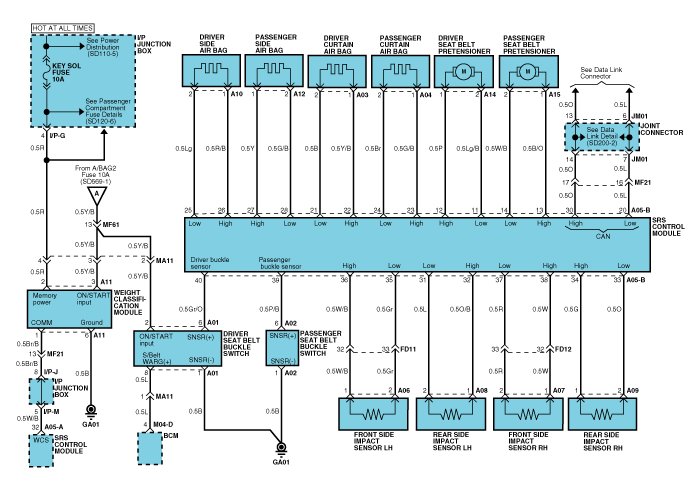

Circuit Diagram (2)

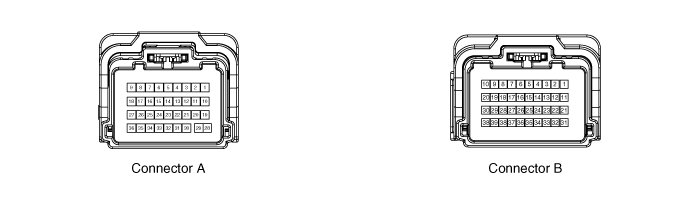

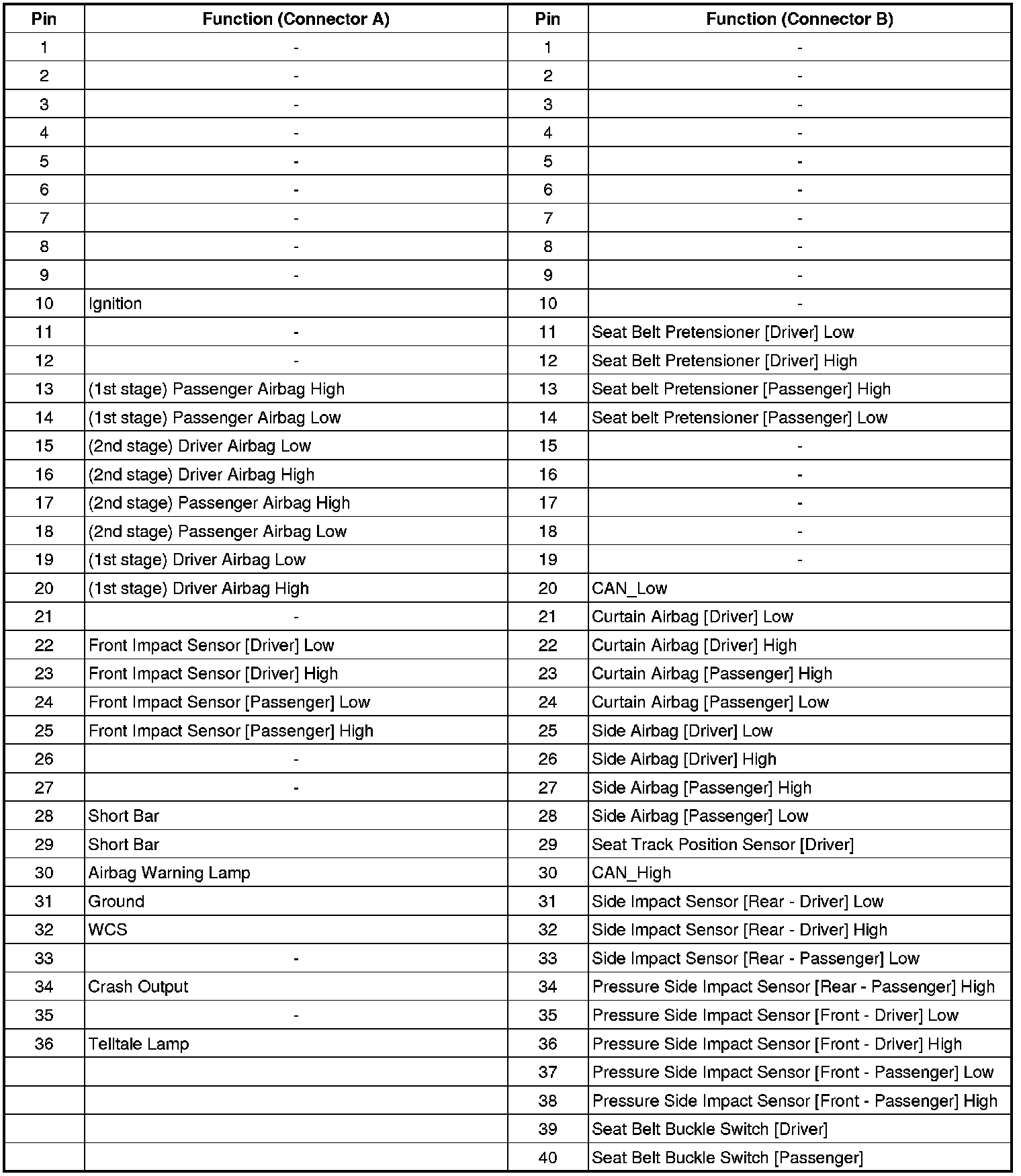

Harness Connector
