Component Tests and General Diagnostics





Inspection

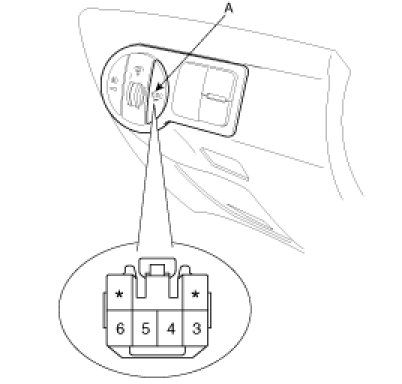

1. Remove the ESC OFF switch from the switch panel.

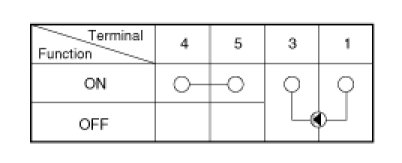

2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
