Remote Control: Service and Repair

Inspection

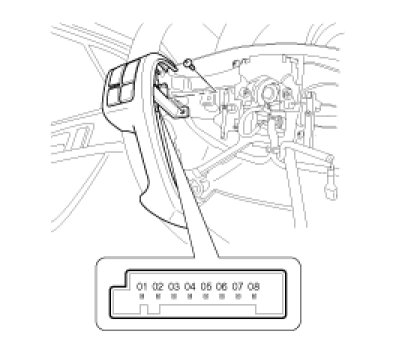

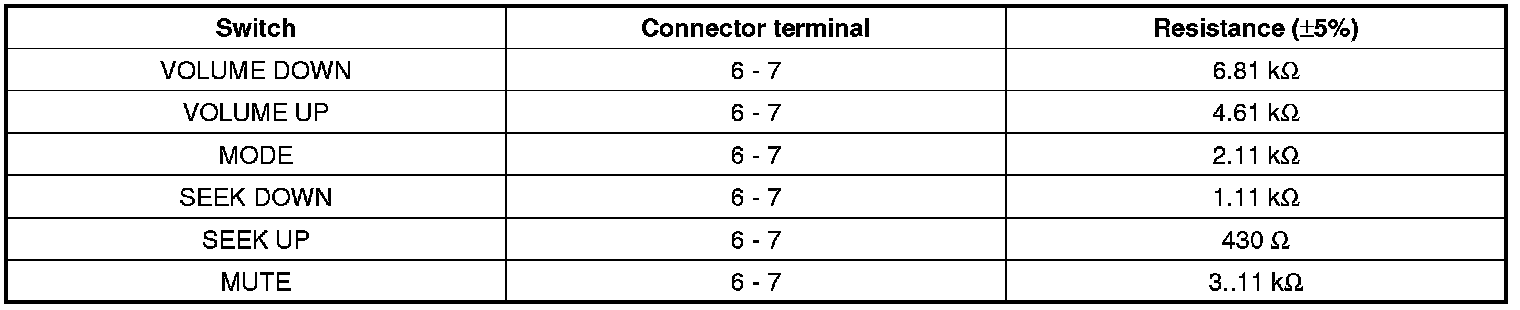

1. Check for resistance between No.6 and No.7 terminals in each switch position.










Removal

1. Disconnect the negative (-) battery terminal.

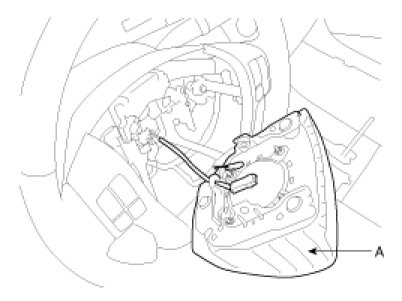

2. Remove the driver airbag module (A).

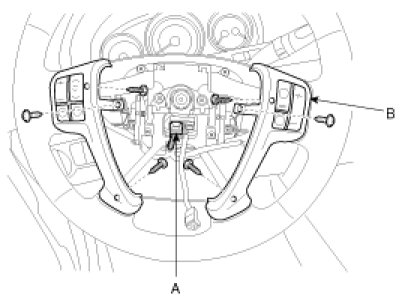

3. Remove the audio remote control switch (B) after remove the steering wheel remote control switch connector (A) and 6 screws.






Installation

1. Reassemble the steering wheel remote control switch after connecting the connector.
2. Reassemble the driver airbag module.
