General Information

Automatic Transaxle

P0997 Shift Solenoid 'F'(SLB1) Range/Performance - General Information

Component Location





General Description

TCU monitors status of "SCSV-F (SLB1) in order to maintain optimum gear shift.

DTC Description

TCU set this code, When Solenoid-valves are not working normally.

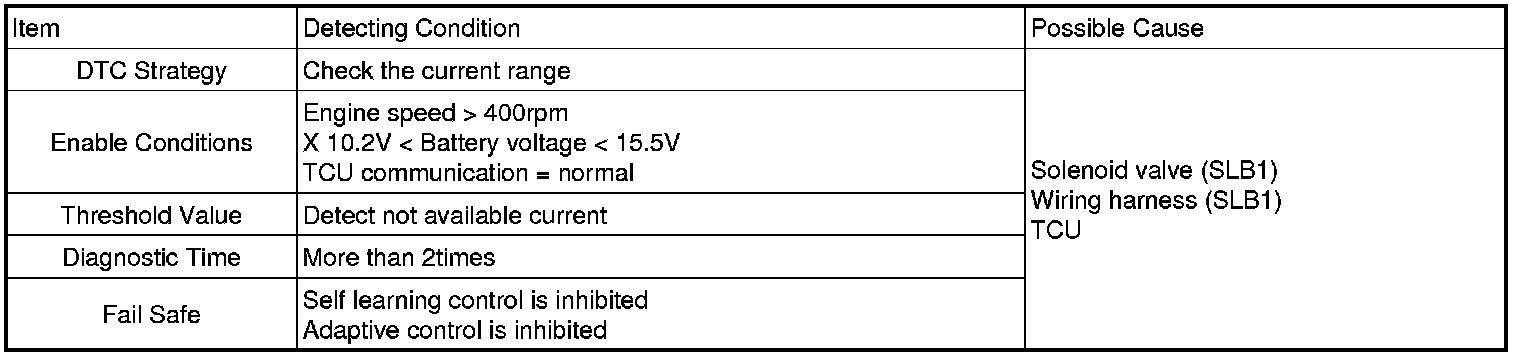

DTC Detecting Condition

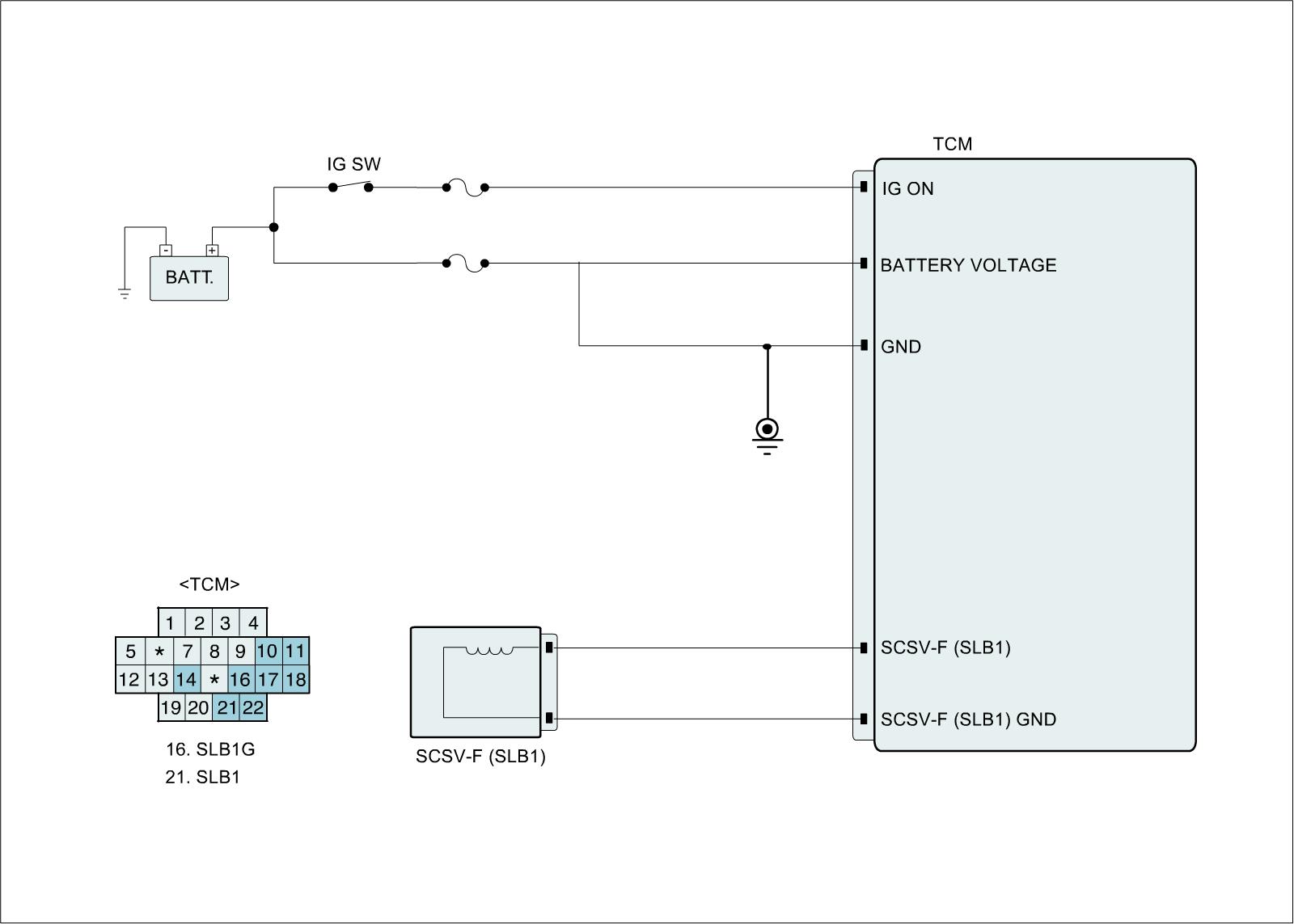

Diagnostic Circuit
