General Information

Automatic Transaxle

P0983 Shift Solenoid 'D'(SLC2) Circuit High - (Short to +B) - General Information

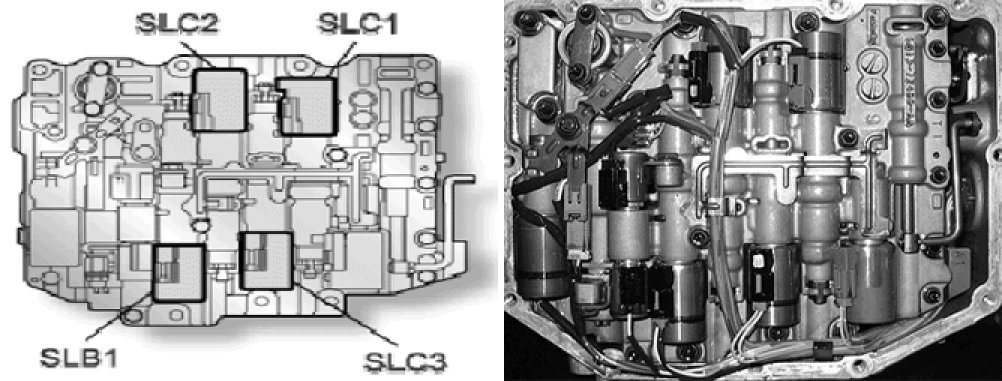

Component Location





General Description

TCU monitors status of "SCSV-D (SLC2) in order to maintain optimum gear shift.

DTC Description

TCU set this code, When Solenoid-valves are not working normally.

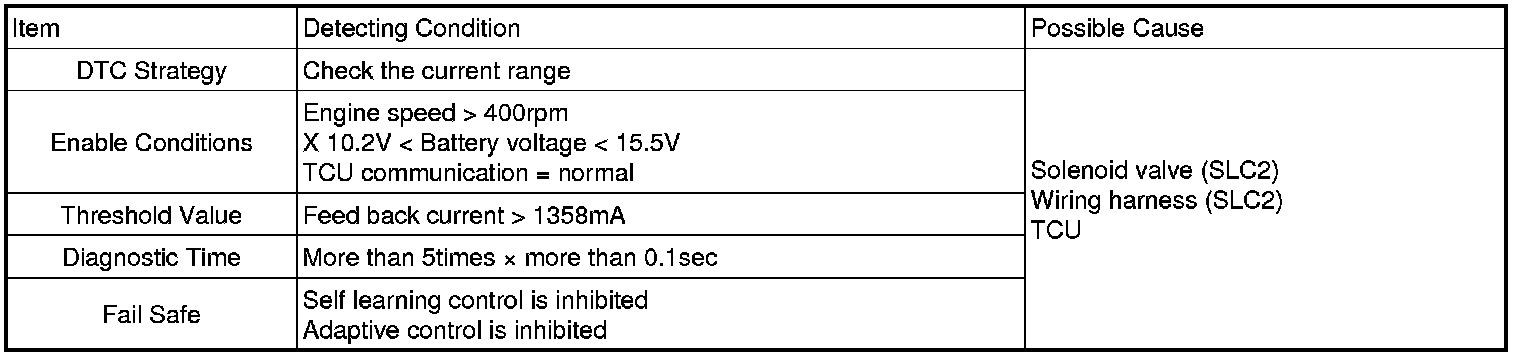

DTC Detecting Condition

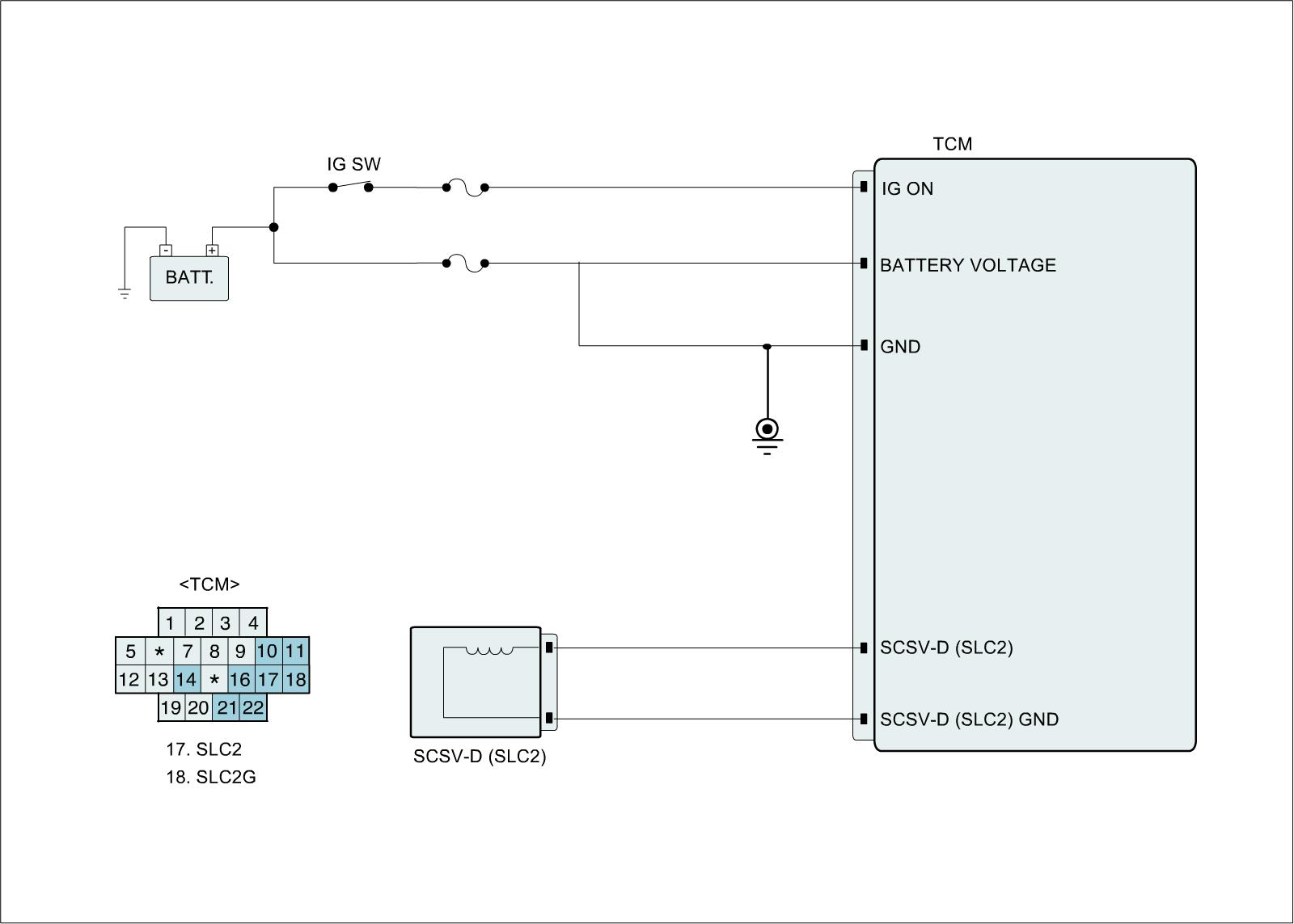

Diagnostic Circuit
