General Information

Automatic Transaxle

P0974 Shift Solenoid 'A' Circuit High (S1) - (Short to +B or Open) - General Information

Component Location





General Description

TCU monitors status of "SCSV-A (S1) in order to maintain optimum gear shift.

DTC Description

TCU set this code, When Solenoid-valves are not working normally.

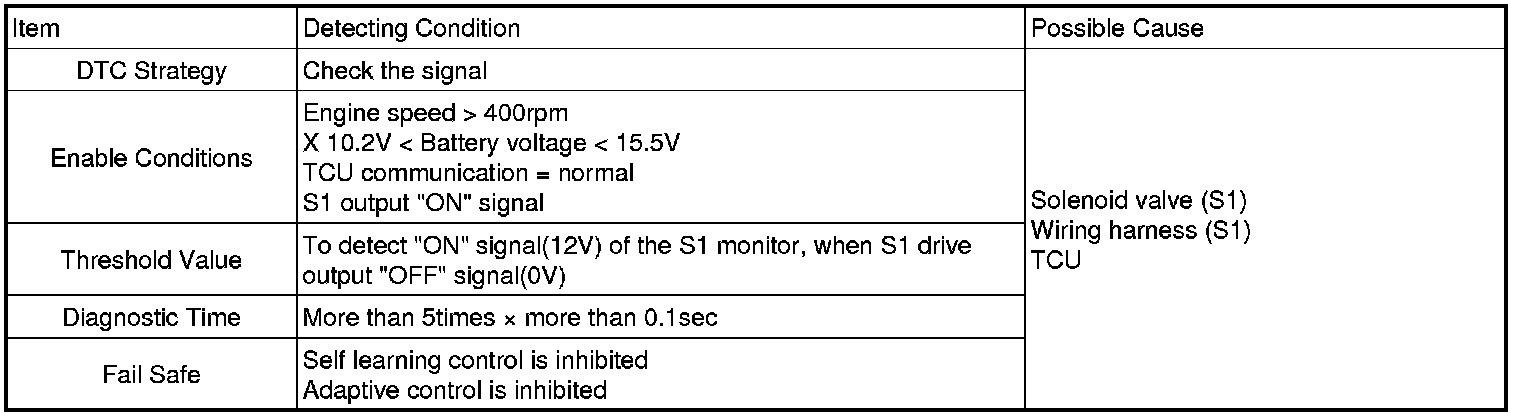

DTC Detecting Condition





Diagnostic Circuit
