General Information

Automatic Transaxle

P0973 Shift Solenoid 'A' Circuit Low (S1) - (Short to GND) - General Information

Component Location





General Description

TCU monitors status of "SCSV-A (S1) in order to maintain optimum gear shift.

DTC Description

TCU set this code, When Solenoid-valves are not working normally.

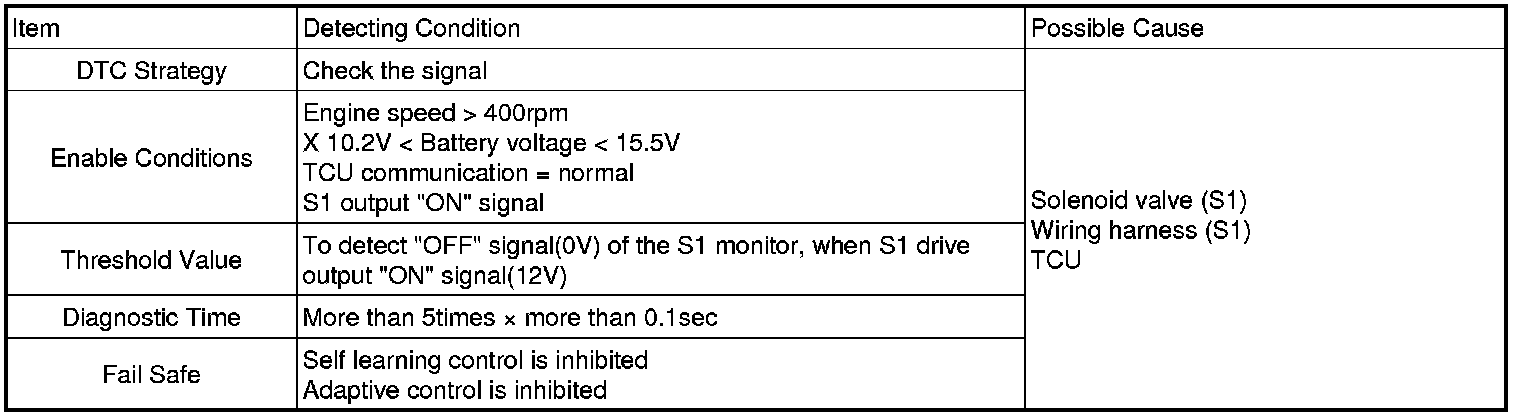

DTC Detecting Condition

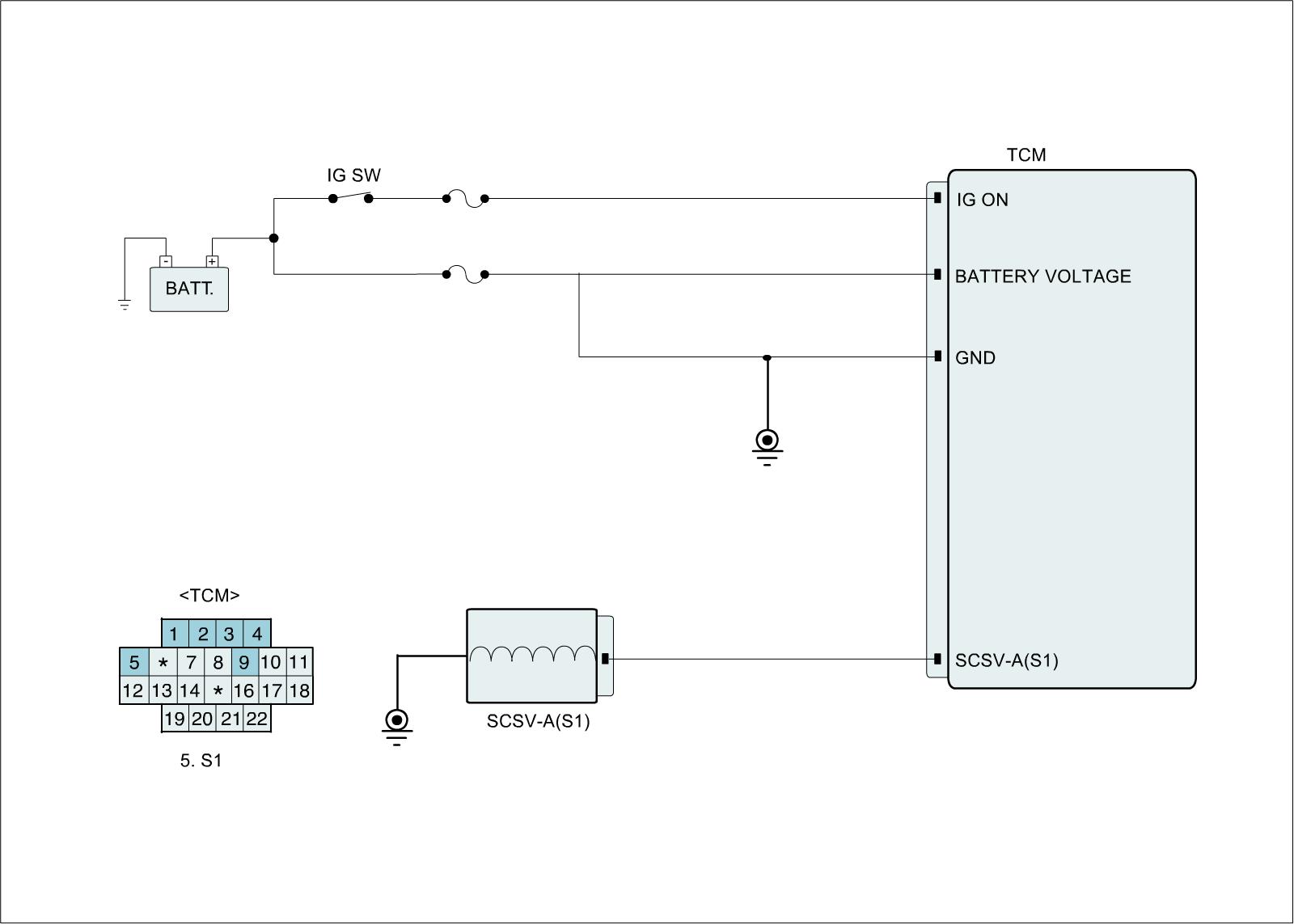

Diagnostic Circuit
