General Information

Automatic Transaxle

P0961 PCSV A (SLT)-Range/Performance - General Information

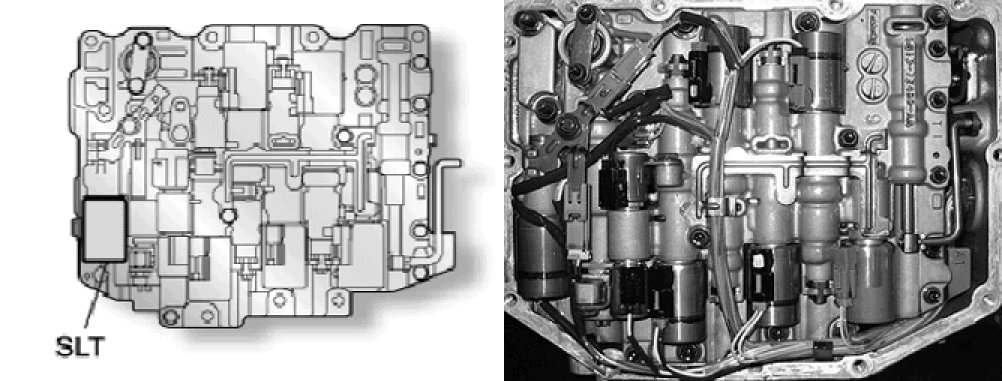

Component Location





General Description

TCU monitors status of "PCSV-A (SLT) in order to maintain optimum gear shift.

DTC Description

TCU set this code, When Solenoid-valves are not working normally.

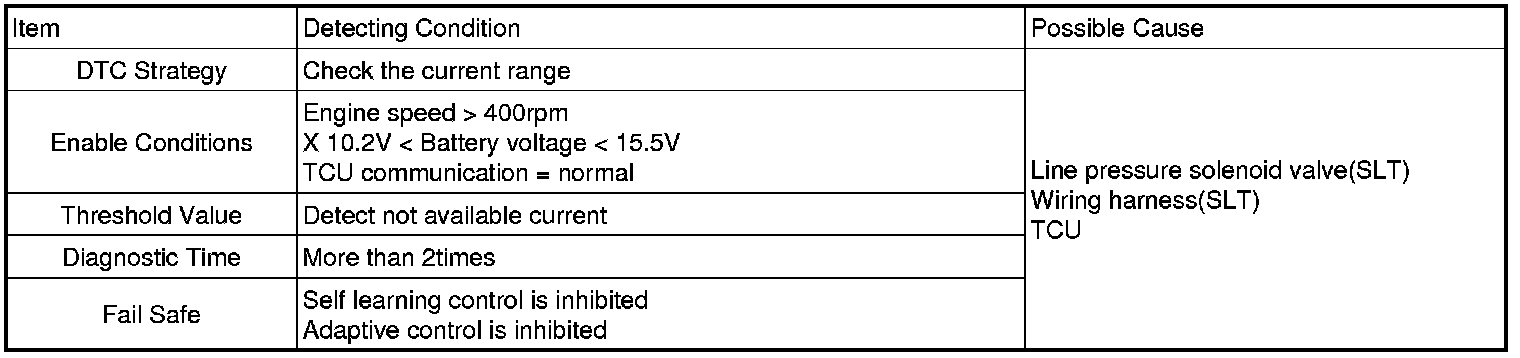

DTC Detecting Condition

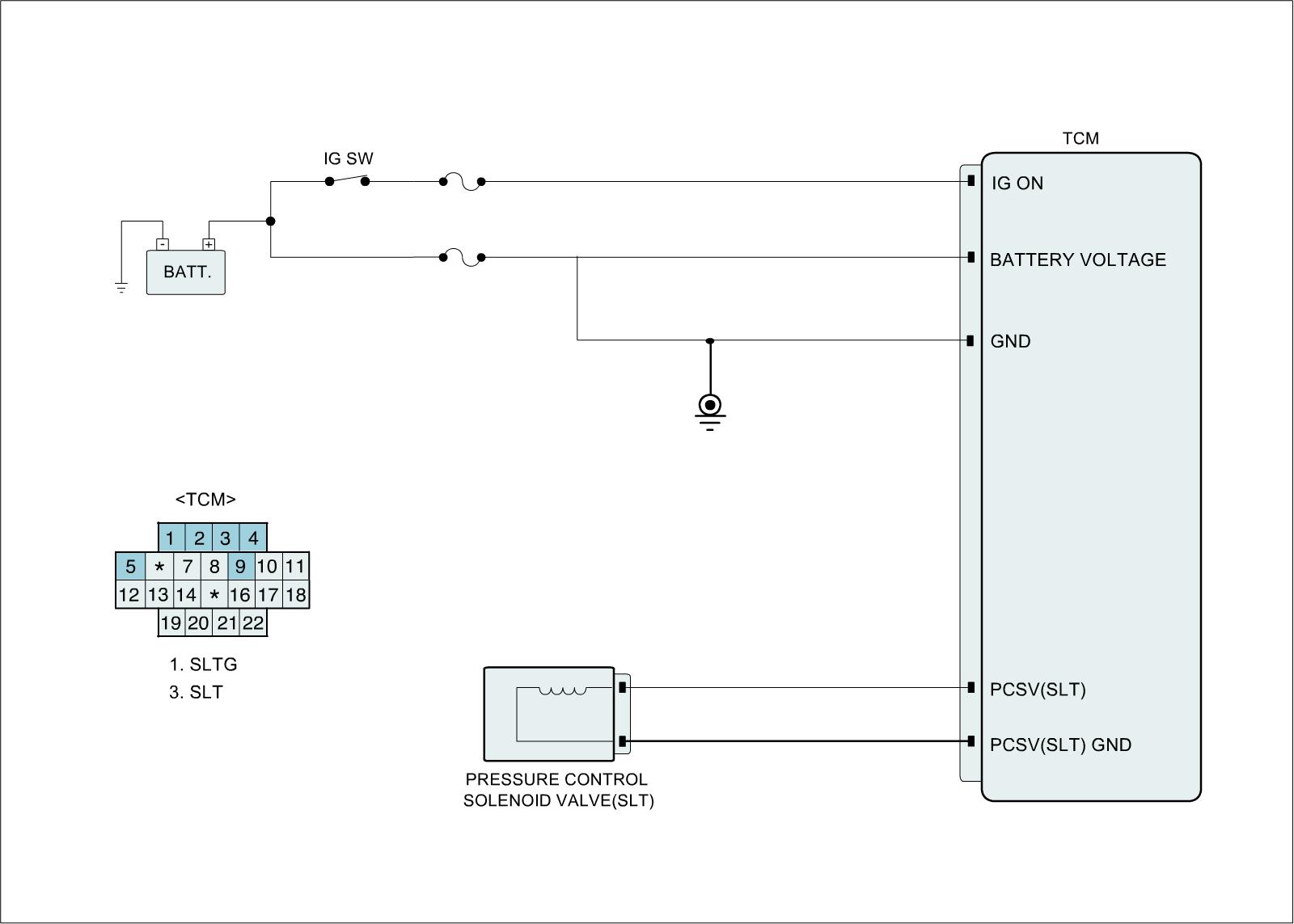

Diagnostic Circuit
