Scantool Diagnostics

ESC (MGH-60)(2009.12.21~)

C1237 Primary Pressure Sensor-Signal - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Press the brake pedal.
4. Monitor the "PRESSURE SENSOR" parameter on the Scantool.

Specification : Approx. 60 bar ~150 bar (There is difference in displayed parameter according to braking force)

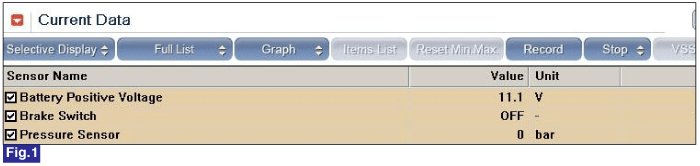

Fig.1) Test Condition : Ignition "ON" & Engine "ON".
Normal data

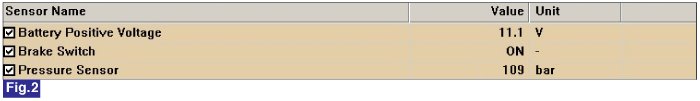

Fig.2) Test Condition : Ignition "ON" & Engine "ON" & Brake "ON".
Normal data (There is difference in displayed parameter according to braking force)

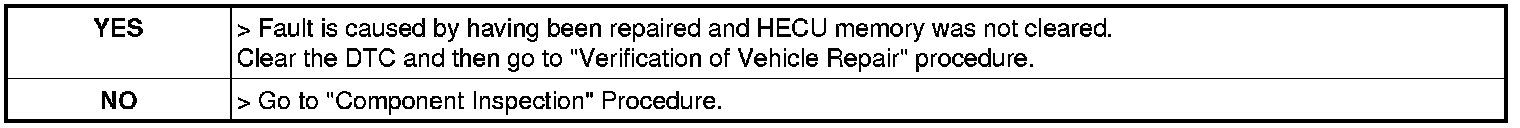

5. Whenever brake pedal is pushed down, is the pressure sensor's scantool data changed?
