Center Mounted Brake Lamp: Service and Repair

Replacement

High Mounted Stop Lamp
1. Disconnect the negative (-) battery terminal.
2. Remove the tailgate.

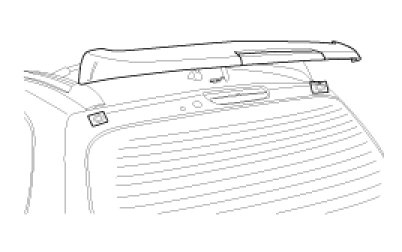

3. Remove the high mounted stop lamp assembly after removing 2 nuts, then remove the spoiler.

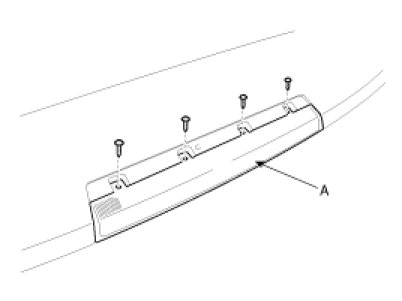

4. Remove the spoiler lamp cover (A) and loosening the screw (4EA). And then remove the high mounted stop lamp.




5. Installation is the reverse of removal.
