Hyundai Truck
>>
2011
>>
Santa Fe AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

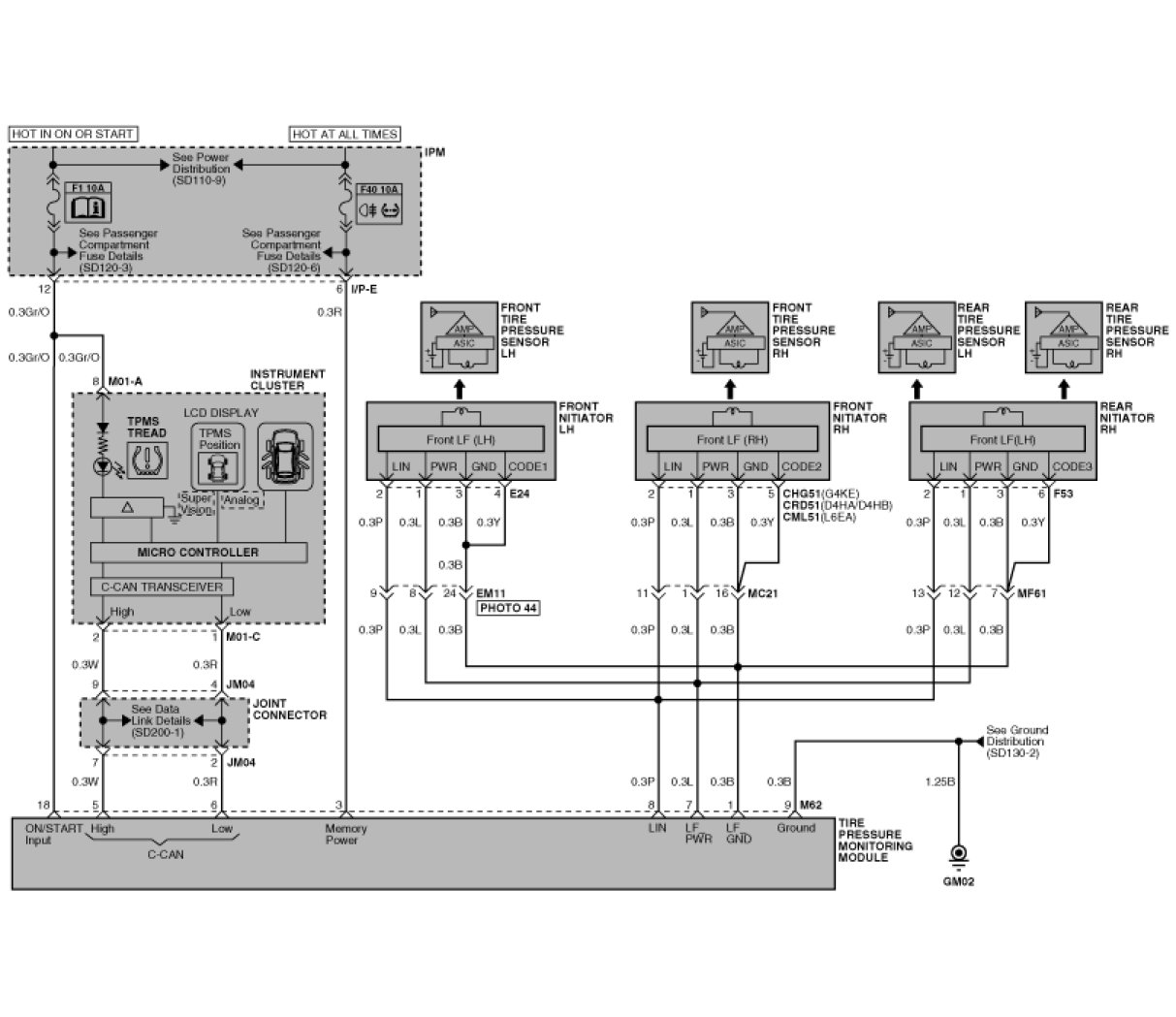

Tire Monitoring System
>>
Schematic Diagra
Schematic Diagra
Circuit Diagram
