System Diagram

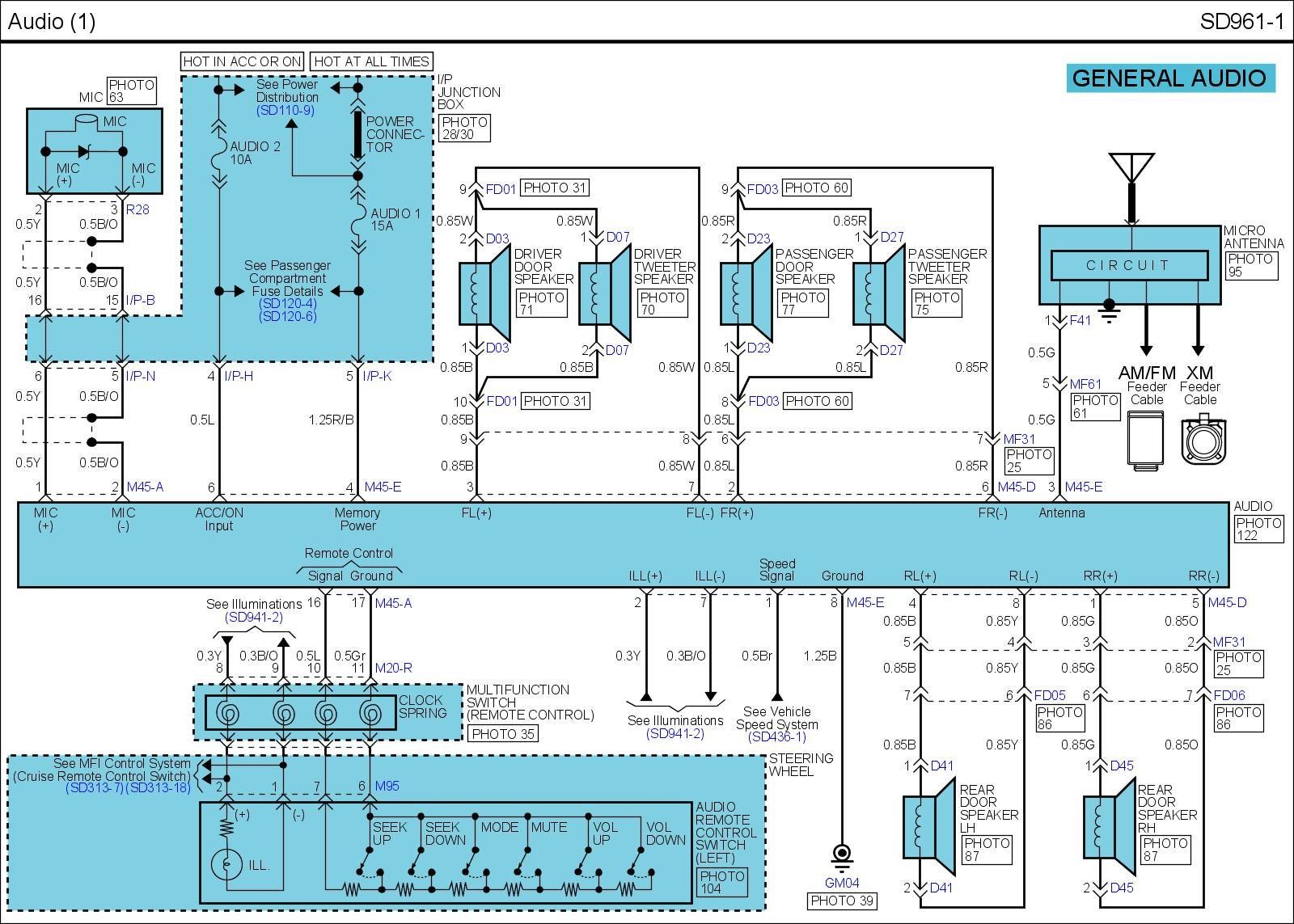

SD961-1 Audio (1):

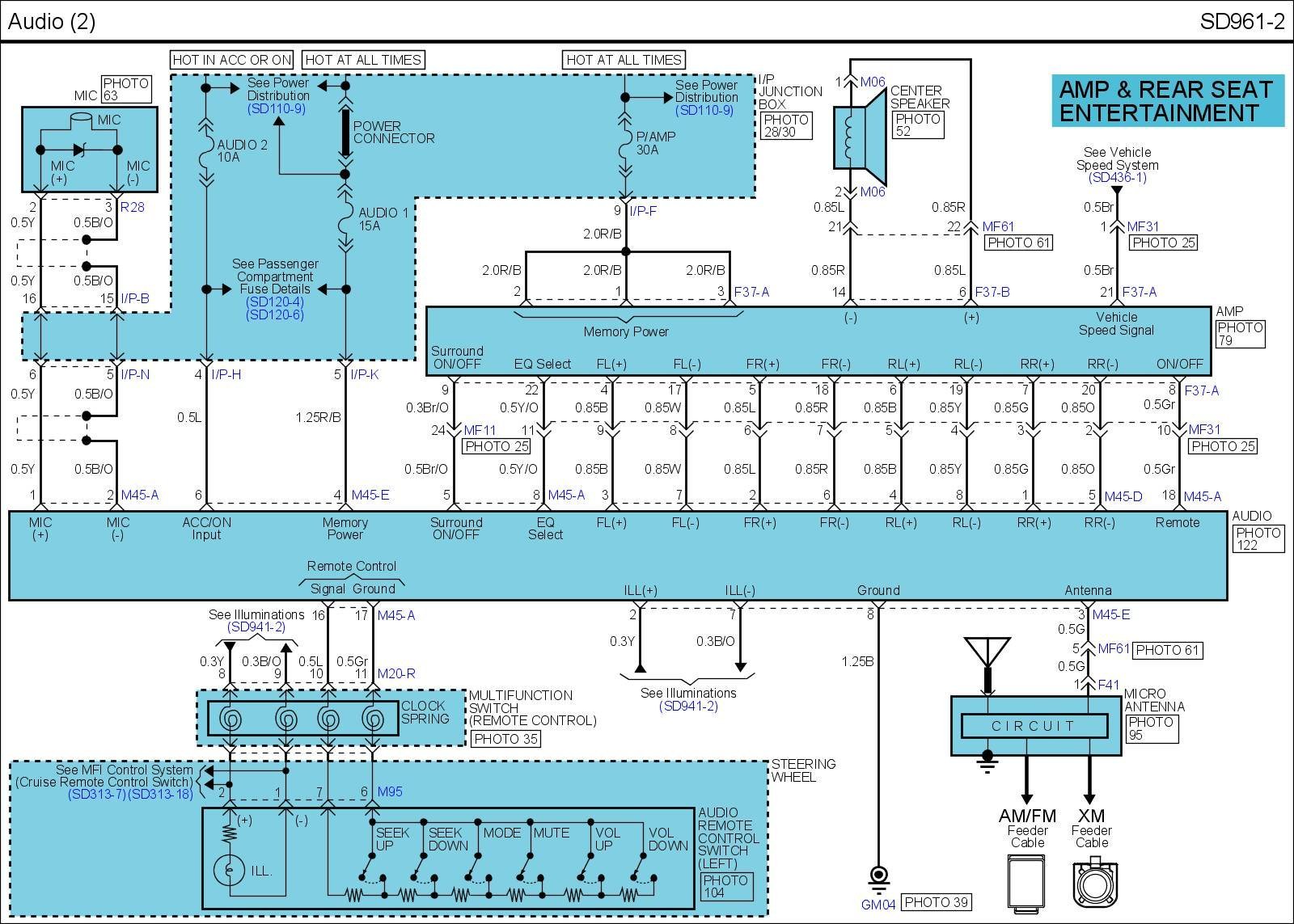

SD961-2 Audio (2):

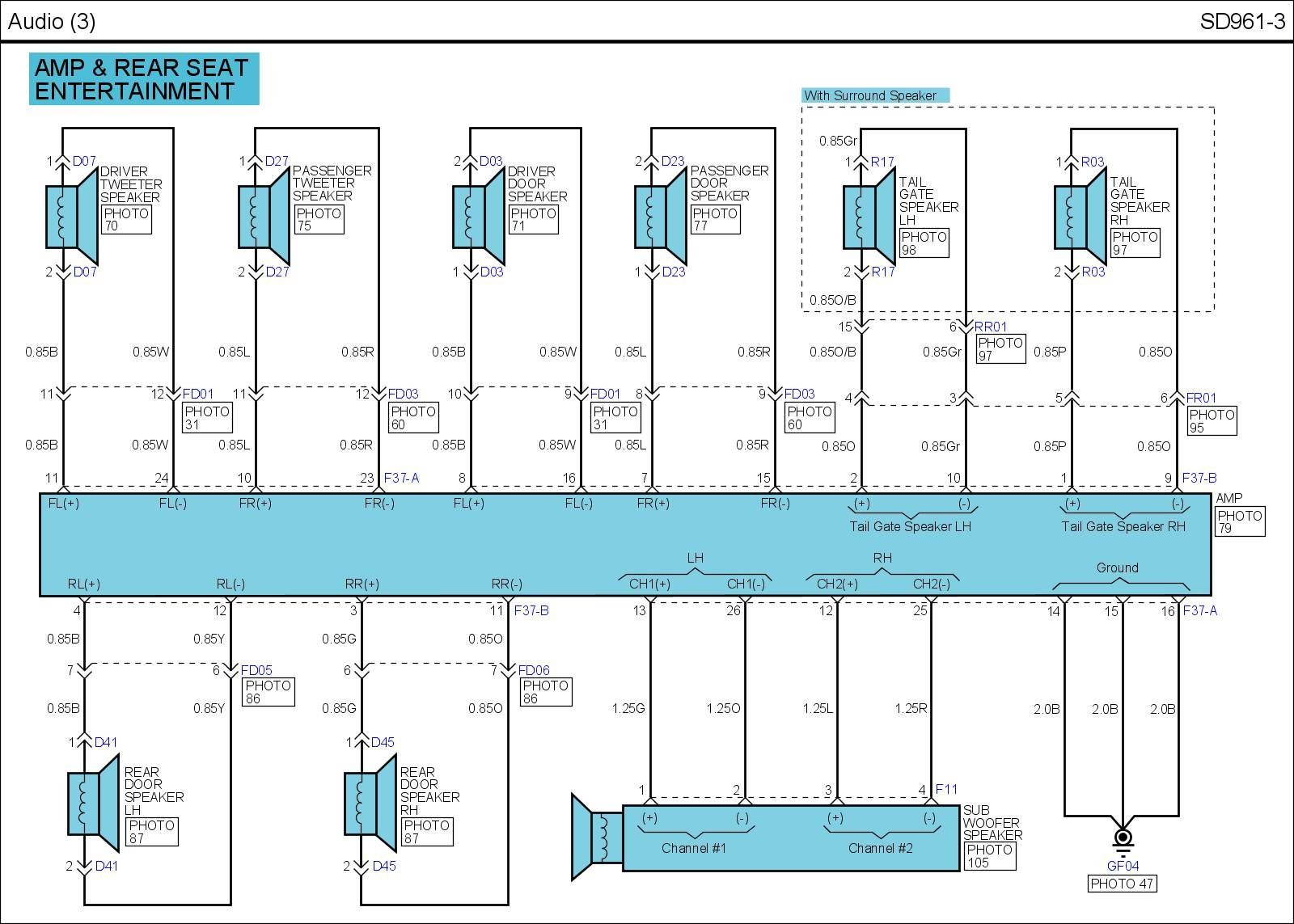

SD961-3 Audio (3):

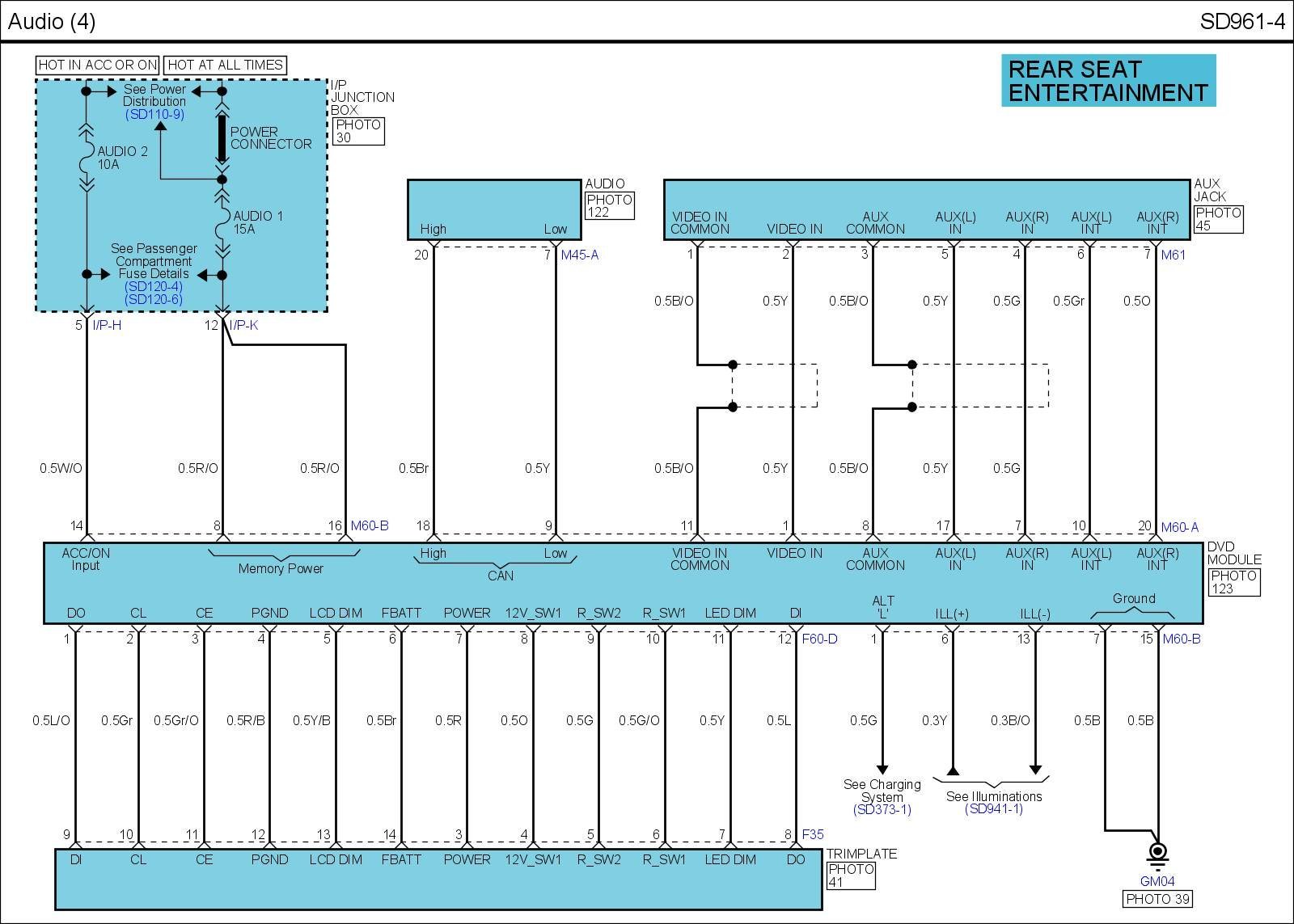

SD961-4 Audio (4):

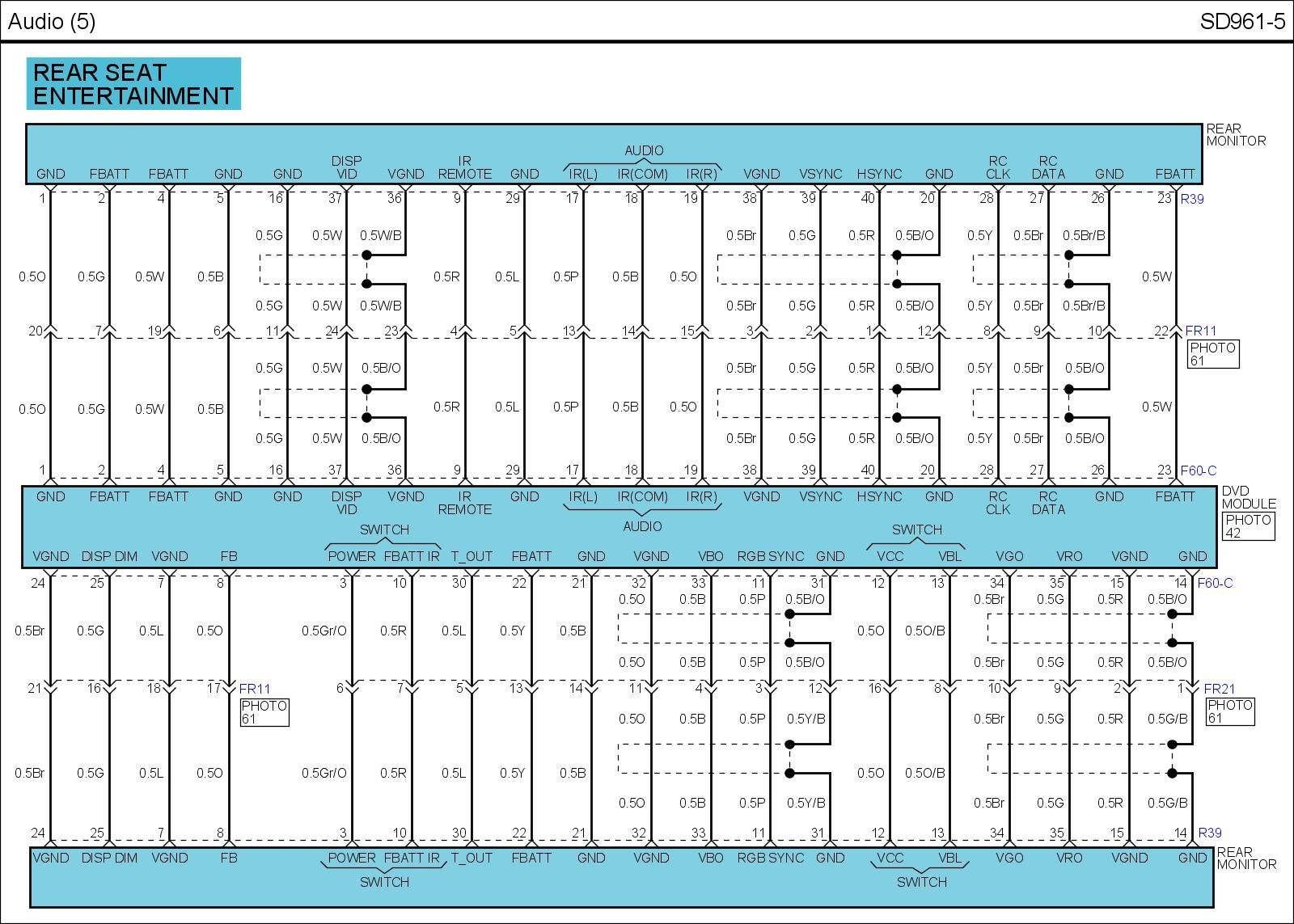

SD961-5 Audio (5):

SD961-6 Audio (6):

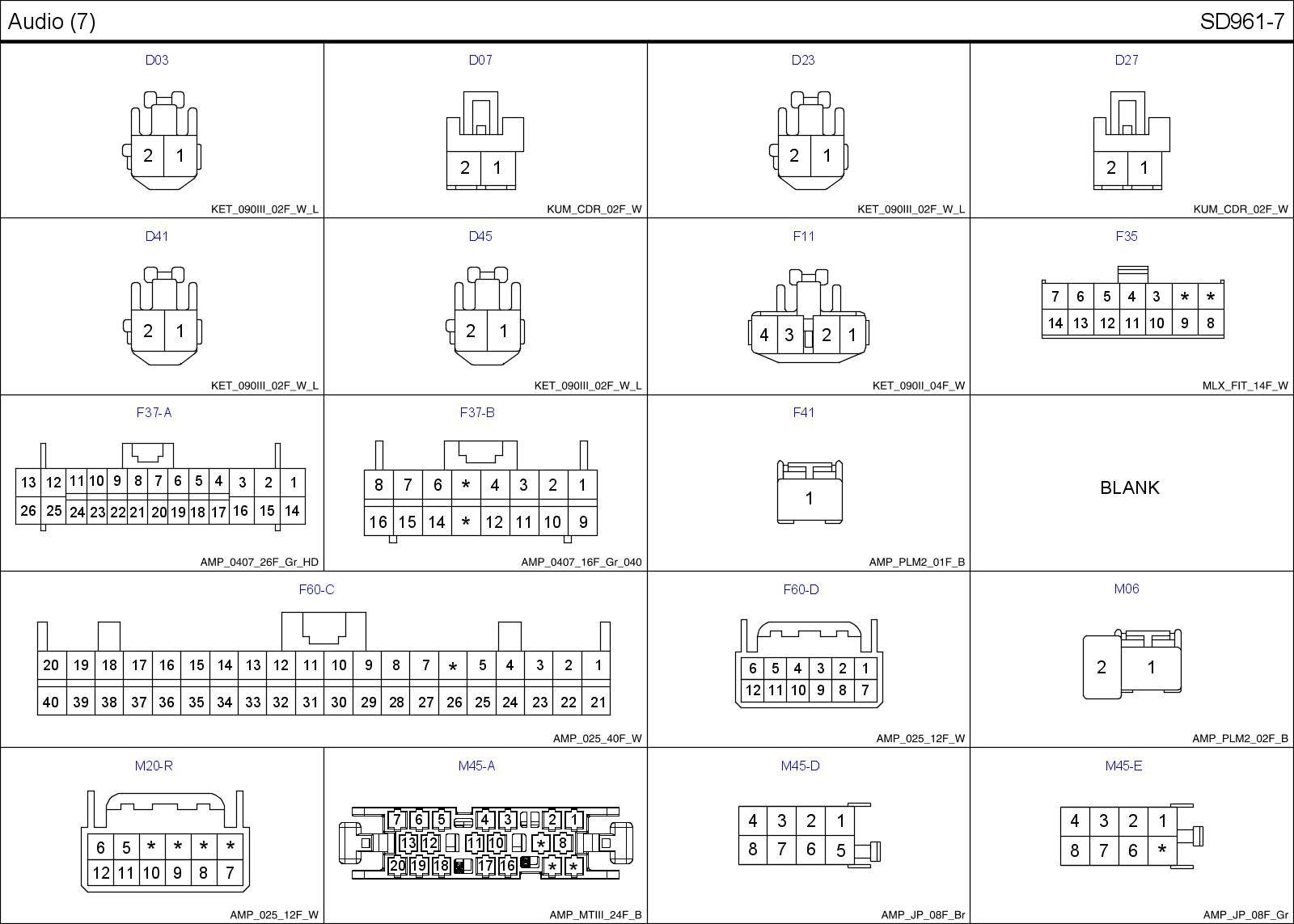

SD961-7 Audio (7):

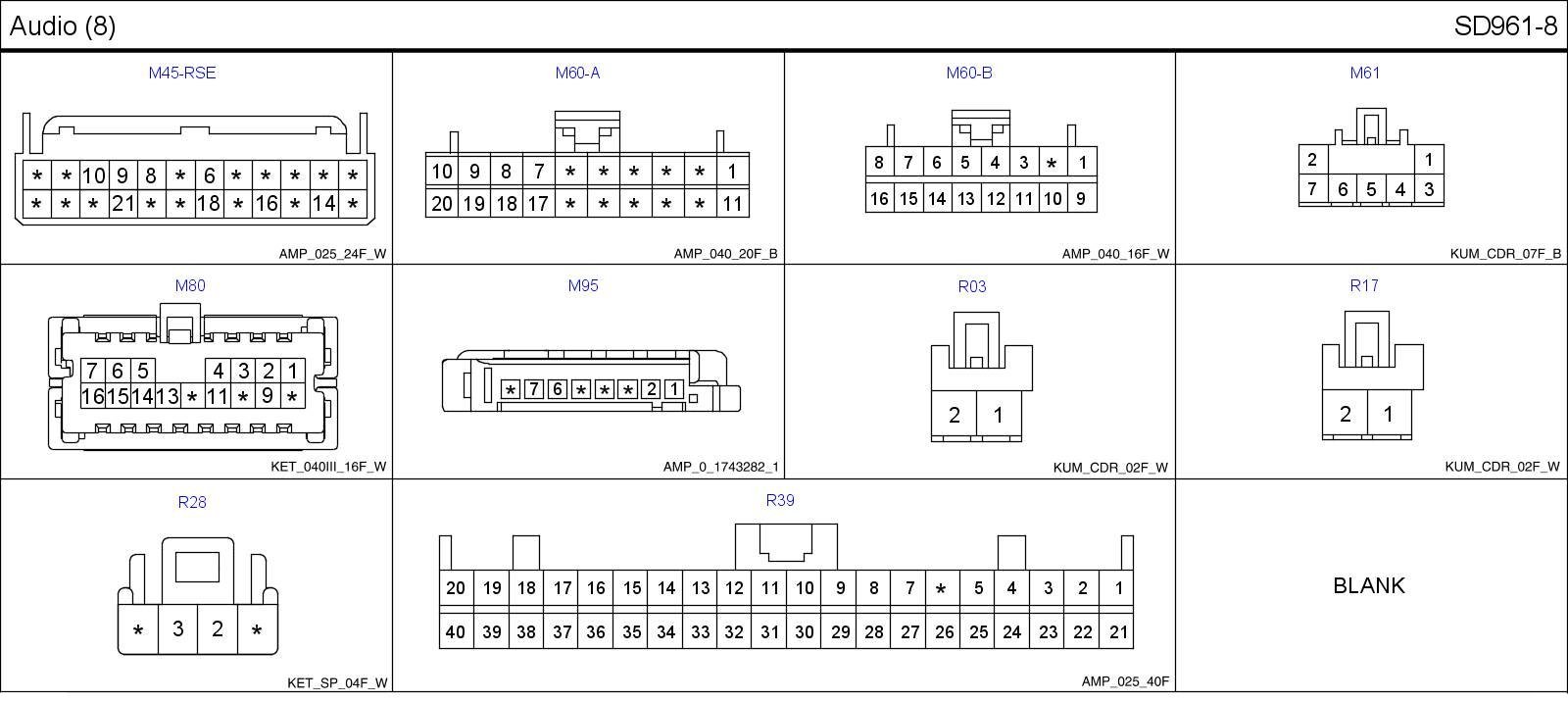

SD961-8 Audio (8):

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
