Repair Procedures

Removal

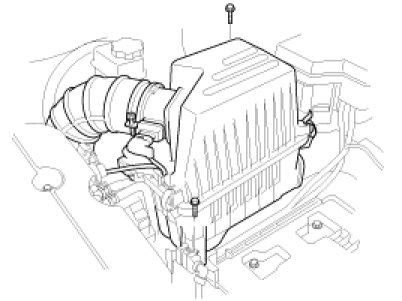

1. Remove the air cleaner assembly.

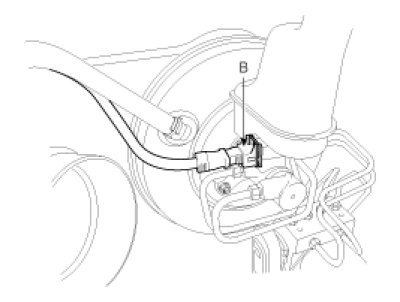

2. Disconnect the brake fluid level switch connector(B) from the reservoir.





CAUTION:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.

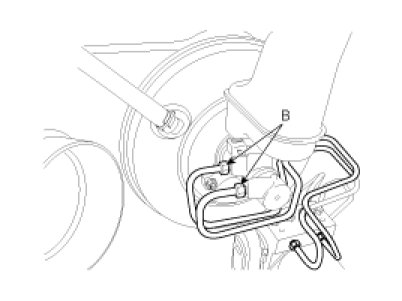

3. Disconnect the brake tube from the master cylinder by loosening the tube flare nut (B).

Tightening torque
: 18.6 - 22.6 Nm (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

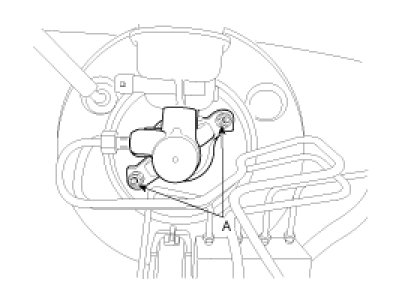

4. Remove the master cylinder from the brake booster after loosening the mounting nuts(A).

Tightening torque
: 12.7 - 16.7 Nm (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft)





Installation

1. Installation is the reverse of removal.
2. After installation, bleed the brake system.
