Remote Control: Service and Repair

Inspection

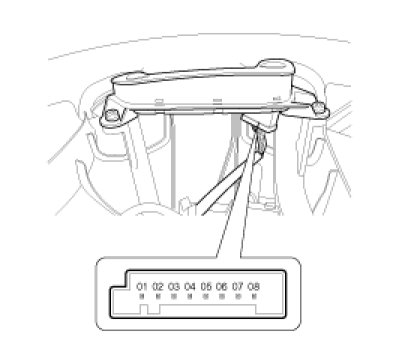

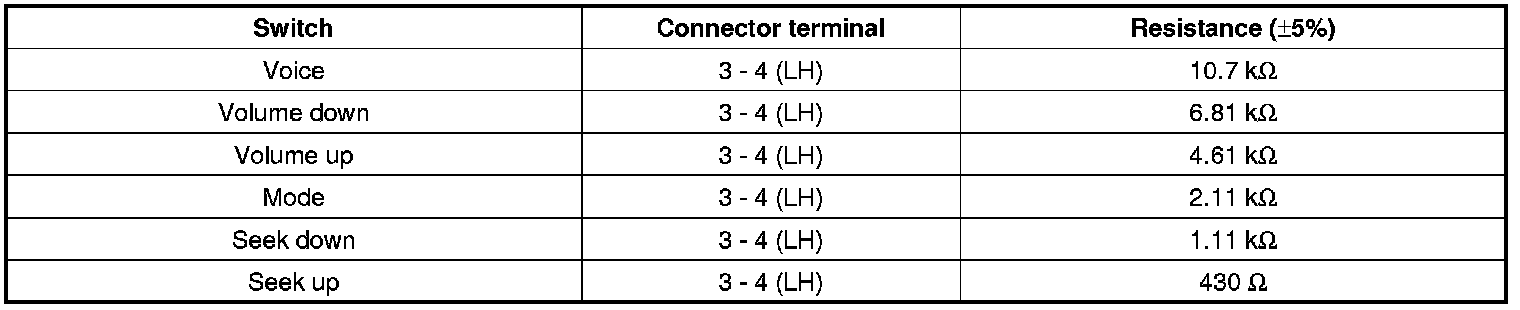

1. Check for resistance between No.6 and No.7 terminals in each switch position.




[Audio + Voice]






Replacement

1. Disconnect the negative (-) battery terminal.

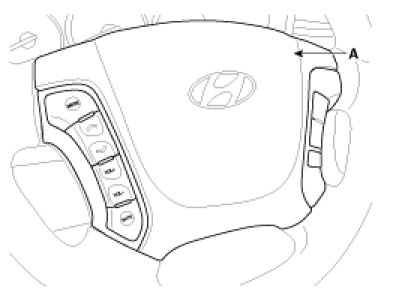

2. Remove the driver airbag module.

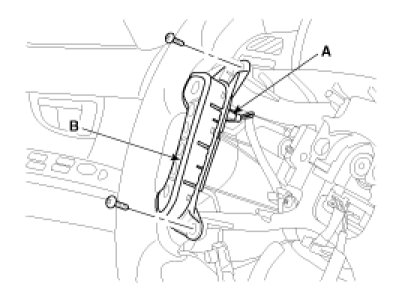

3. Remove the audio remote control switch (B) after remove the steering wheel remote control switch connector (A) and 2 screws.




4. Installation is the reverse order of removal.
