P2009 Intake Manifold Runner Control Circuit Low (Bank 1) - Component Inspection

Component Inspection

Check VCMA
1. IG "OFF" and install a GDS.
2. Connect probe to VCMA commend signal terminal and to check signal waveform by using oscilloscope function.
3. Measure signal waveform of VCMA by executing 'VCM Type vis 1' of actuation test in GDS menu.

Specification : Refer to Signal Waveform & Data

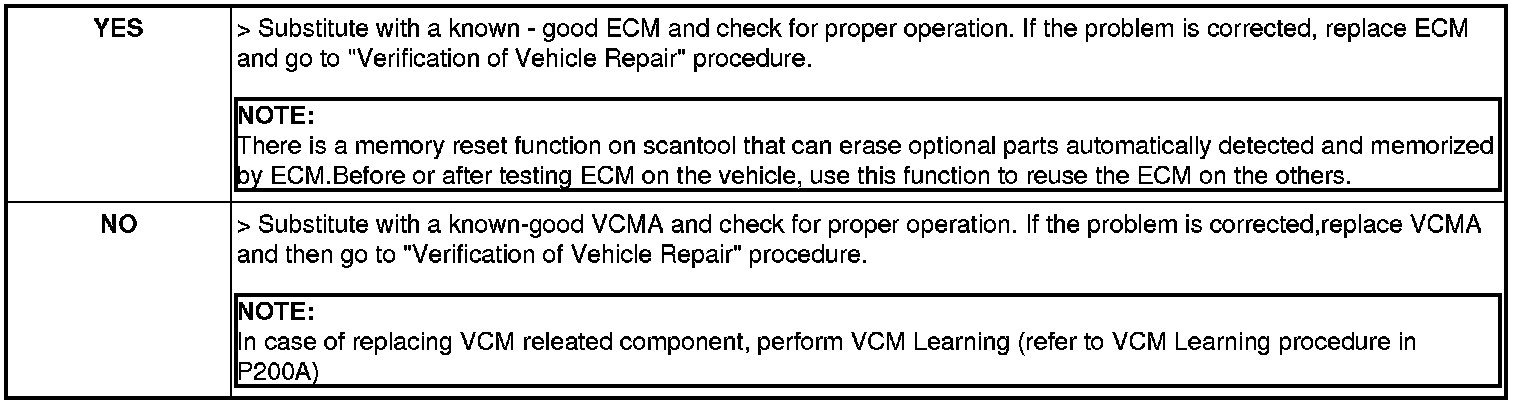

4. Is the measured signal waveform O.K?
