General Information

4WD Control

P1782 Invalid Transmission Gear - General Information

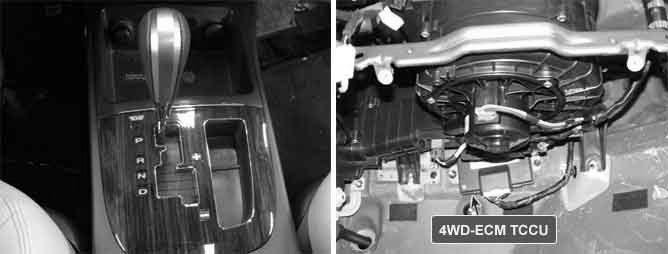

Component Location





General Description

The CAN communication is one of various communication type and this has a parallel circuit in order to interchange various information among units, for example, PCU, ESP (or FTCS), TCCU. This type of communication can share a lot of information with units faster by using specified language. The ITM-ECU performs active control by sharing signals of engine RPM, APS, shift position, torque reduction.

DTC Description

If the 4WD ECM gets an invalid signal of transaxle gear, it sets this DTC in order to protect its engine from damage.

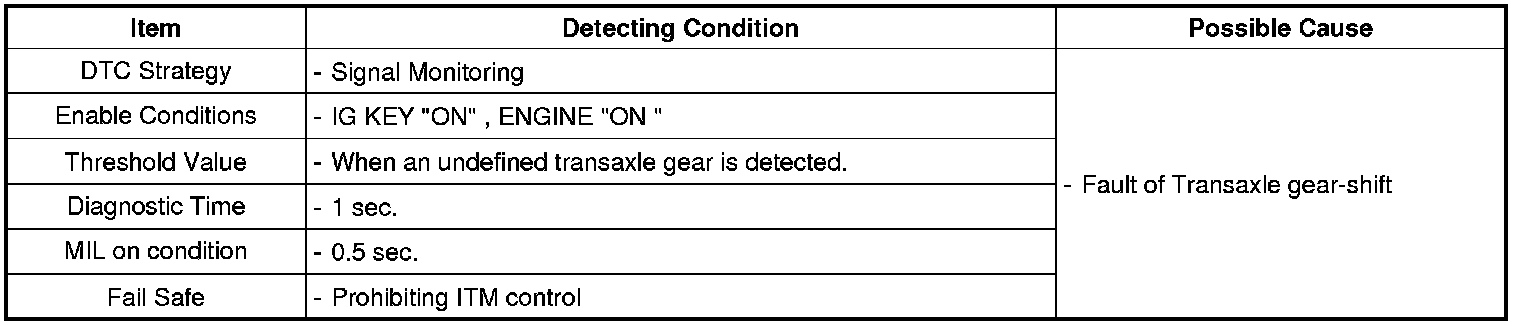

DTC Detecting Condition

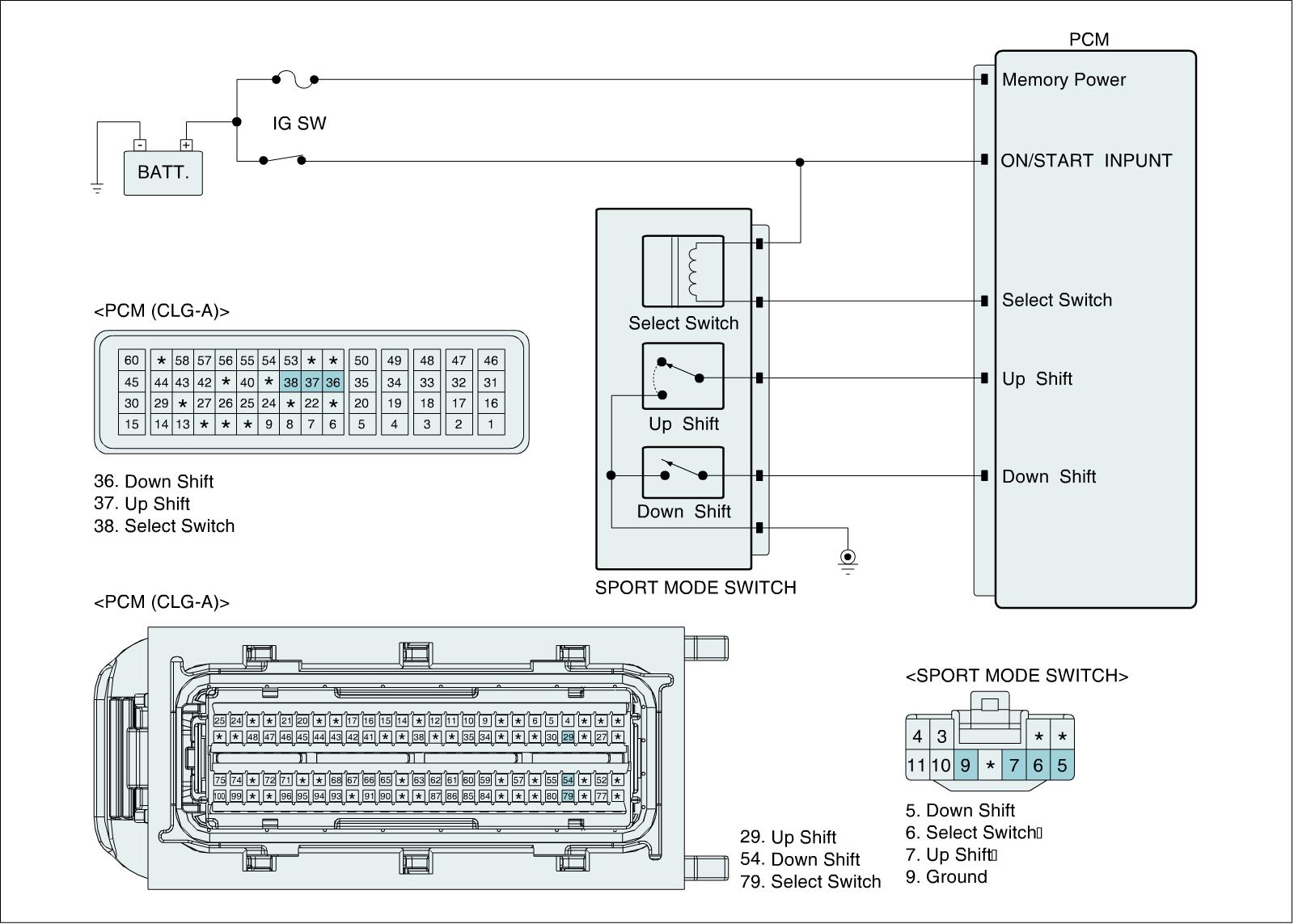

Diagnostic Circuit Diagram
