General Information

A6LF2

P0748 Pressure Control Solenoid Valve (VFS) 'A' Electrical - General Information

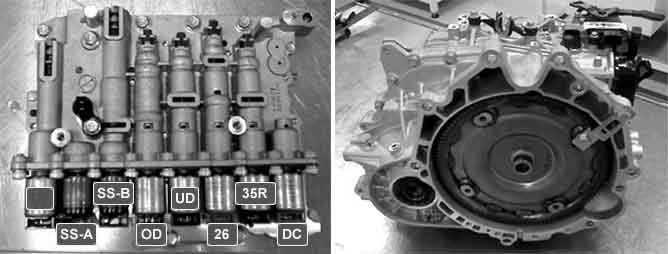

Component Location





General Description

PCM/TCM control Pressure control solenoid valve by changed current for reducing shift shock.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

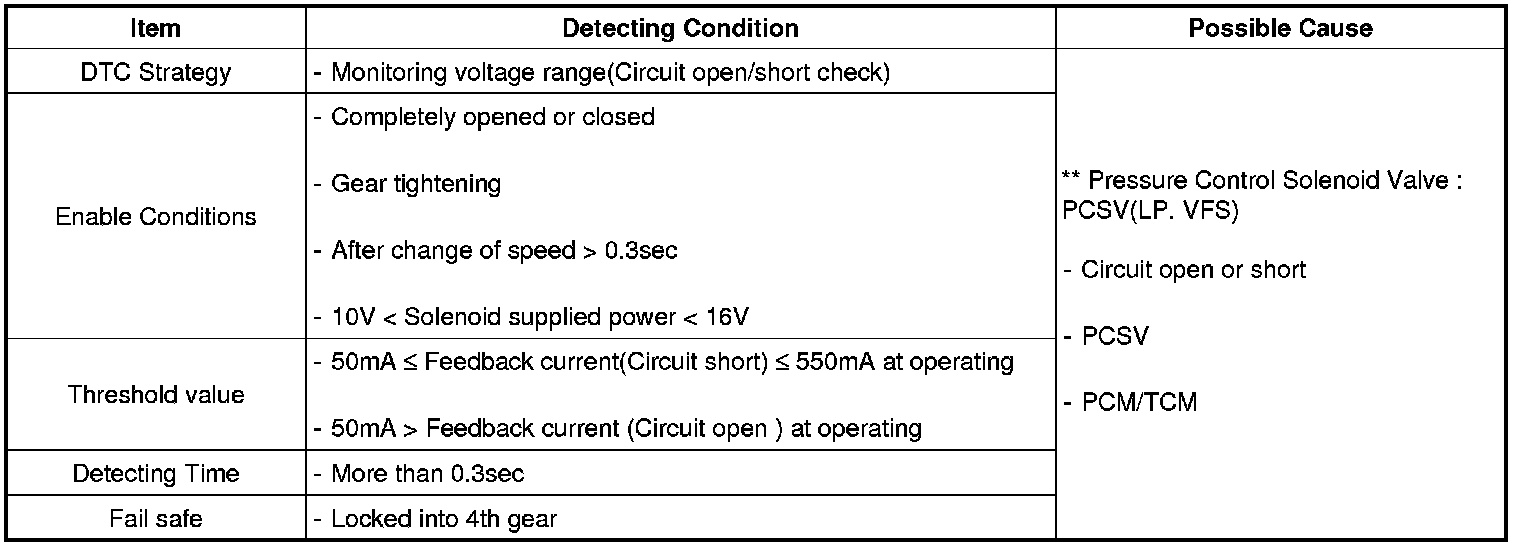

DTC Detecting Condition





Specification

- Working temperature : -40 °C~150 °C
- Internal resistance : 5.1 ± 0.3 Ohms (25 °C normal temperature)

Diagnostic Circuit Diagram

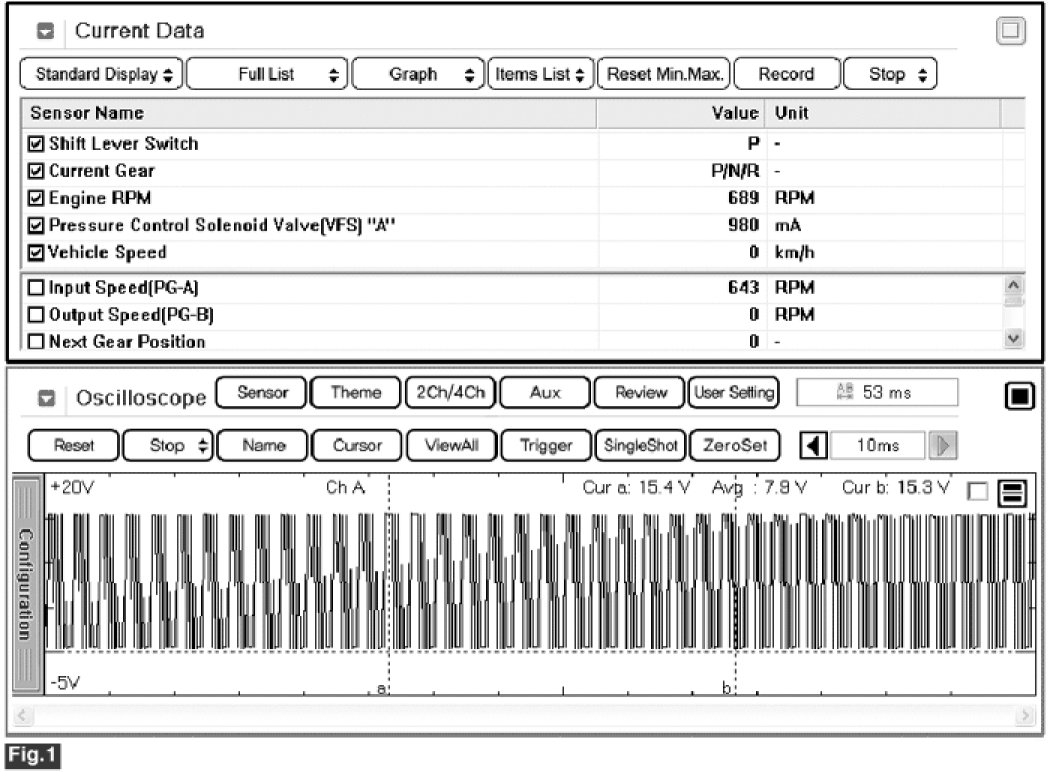

Signal Waveform & Data




Fig.1) Wave form of LP-VFS
