Component Inspection

A6LF2

P0743 Torque Converter Clutch Circuit Electrical - Component Inspection

Component Inspection

DC solenoid valve Inspection
1. Ignition OFF.

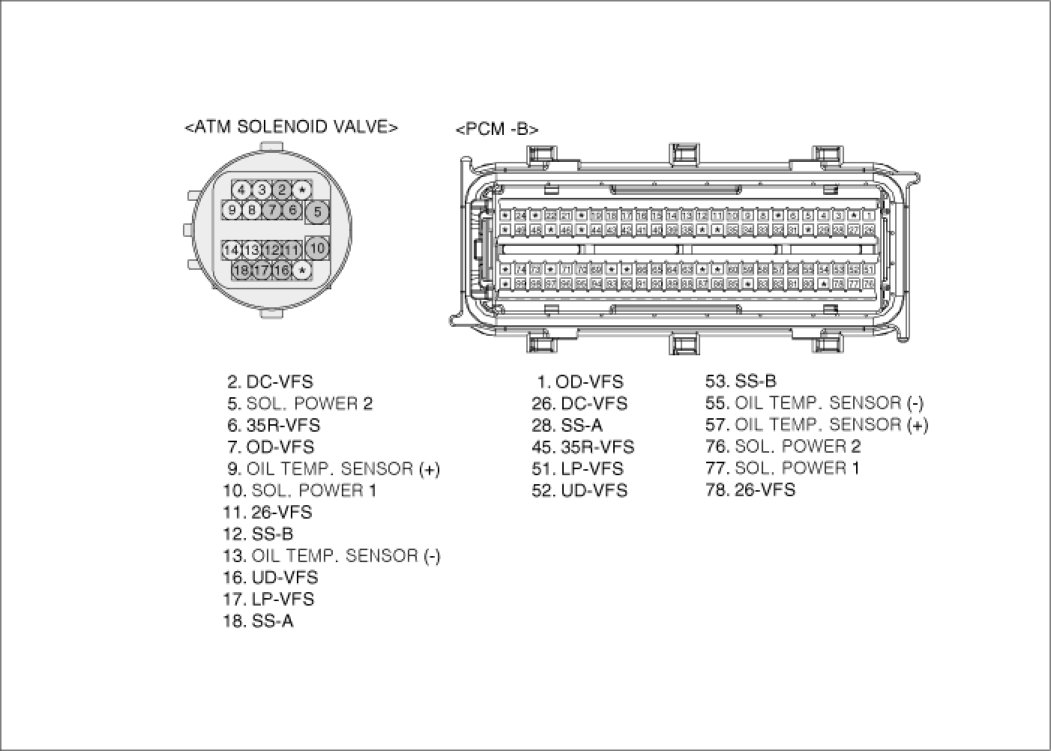

2. Disconnect ATM solenoid valve connector.

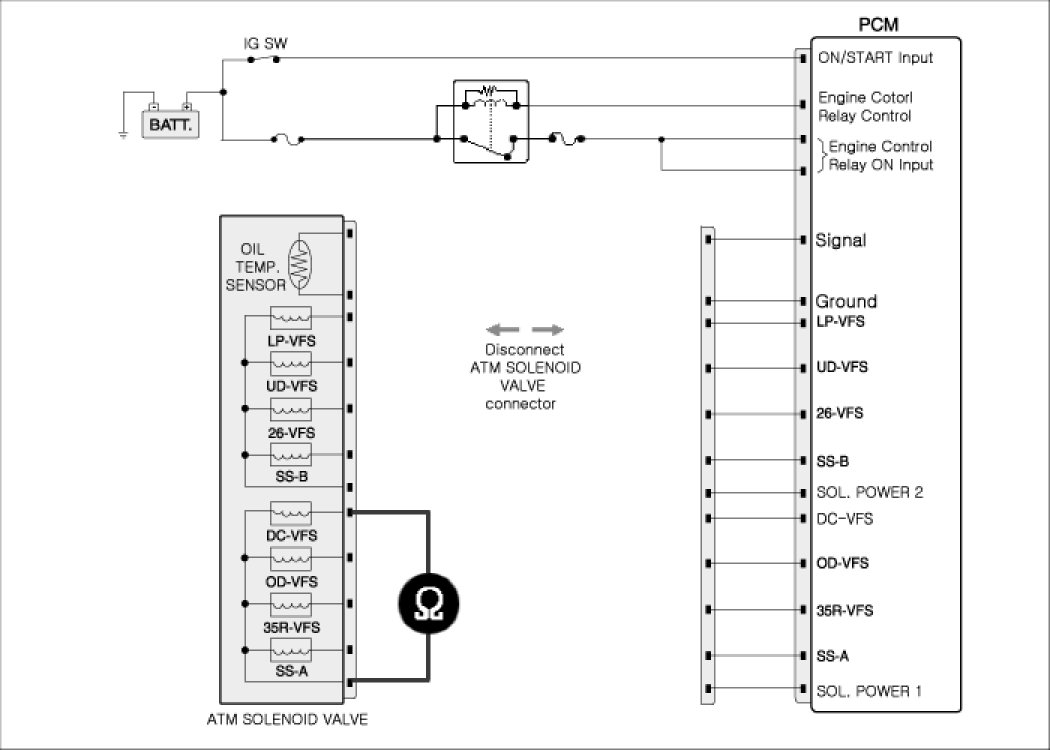

3. Measure resistance between DC solenoid vale terminal of ATM solenoid valve component and ON/START power.

Specification : 5.1 ± 0.3 Ohms (25 °C)

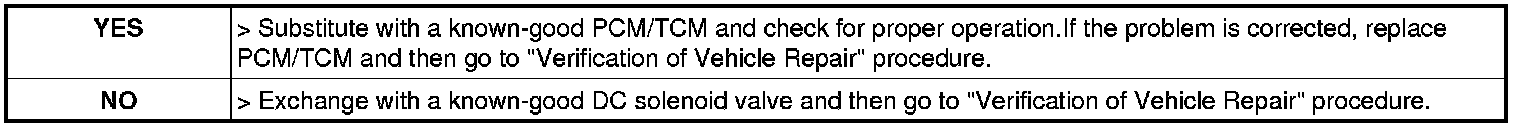

4. Is measured resistance within specification?
