P0663 Intake Manifold Tuning Valve Control Circuit/Open (Bank 2) - Component Inspection

Component Inspection

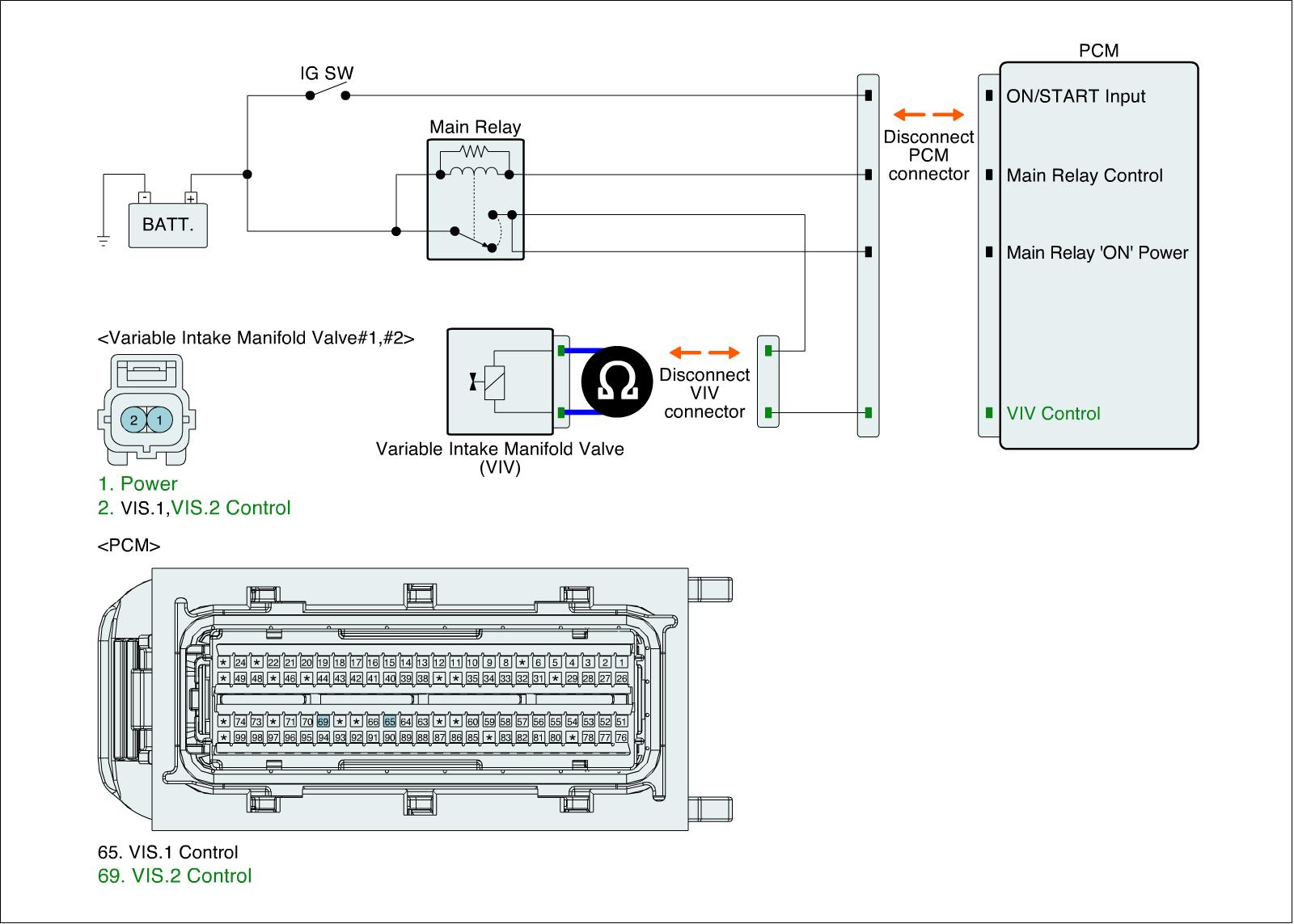

Check VIV
1. IG "OFF" and disconnect VIV connector.
2. Measure resistance between power and control terminals of VIV connector. (Component side)

Specification : 30 - 35 Ohms (22 °C/71.6 °F)

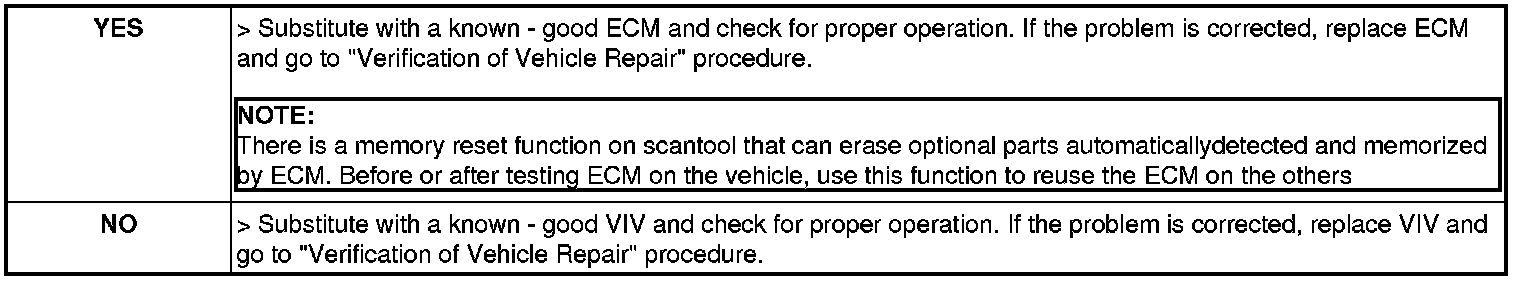

3. Is the measured resistance within specification?
