Component Inspection

Tire Pressure Monitoring System

C1660 Receiver Radio Frequency Circuit Failure - Component Inspection

Component Inspection

1. Connect 'TPMS exciter' or scantool to Data Link Connector (DLC).
2. Clear DTC.
3. IG OFF & IG ON.
4. Execute "Diagnostic Trouble Codes (DTCs)" mode.

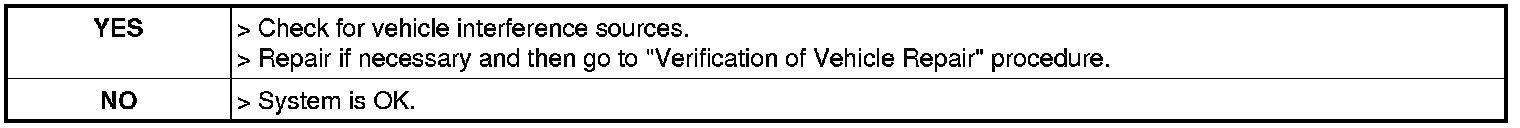

5. Is 'C1660' present?
