C1605 CAN Hardware Error - General Information

Component Location





General Description

The HECU send requirement data, such as Torque reduction, the number of fuel cut cylinders, and ESP control requests, to the Engine PCM (ECM & TCM) through CAN bus line.
The Engine PCM (ECM) performs fuel cut functions according to requests from the HECU and retards ignition timing by torque reduction requests.
The PCM (TCM) maintains current gear positions during ESP control time, in order not to increase power which causes a Kickdown shift.

DTC Description

The HECU checks the CAN control module for normal ESP control, and sets this code if CAN control module malfunction is detected.

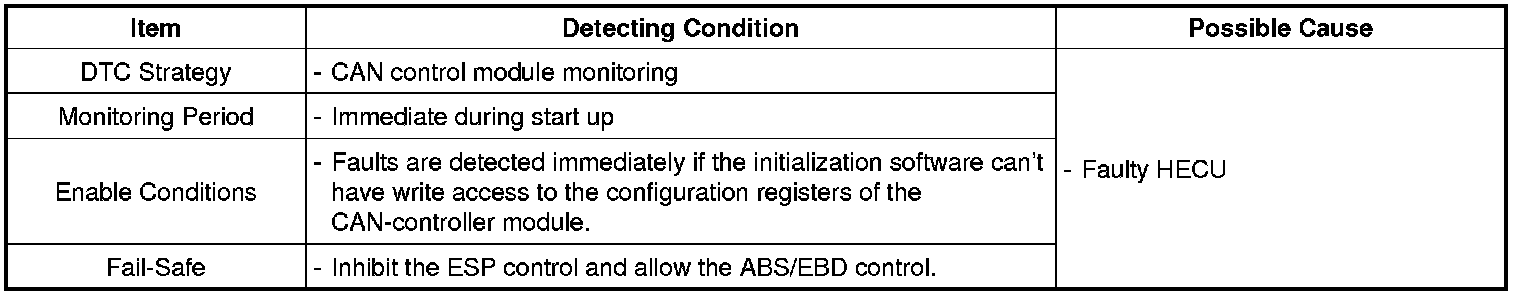

DTC Detecting Condition

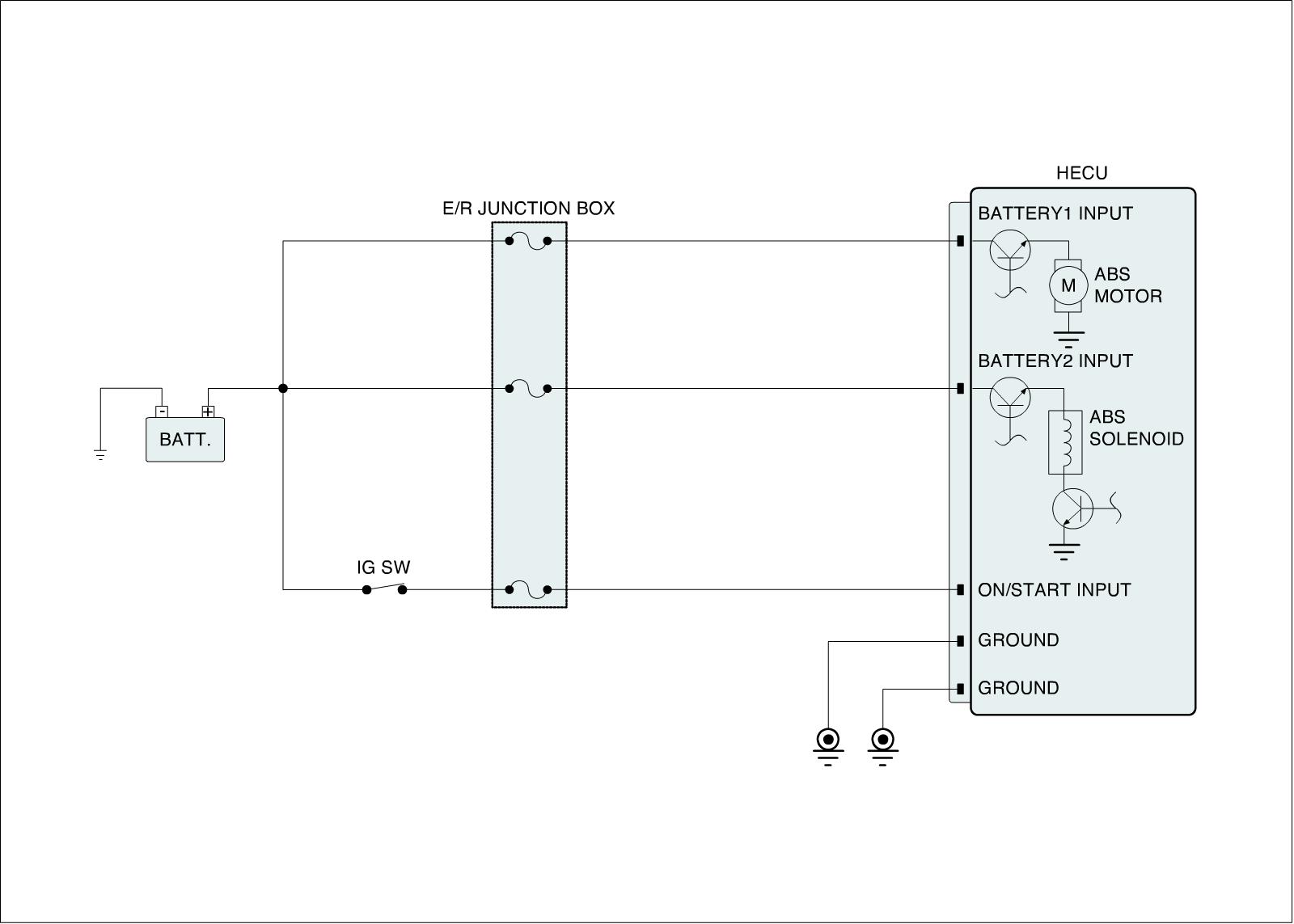

Diagnostic Circuit Diagram
