Component Inspection

Tire Pressure Monitoring System

C1319 Sensor 3 Wrong Type Installed - Component Inspection

Component Inspection

1. Turn ON 'TPMS exciter'.
2. Select "TIRE SNSR CONFIG (EXCITER)" mode.
3. Execute "SET SENSOR STATUS" of Rear Left WE sensor.
4. Monitor the parameter of Rear Left WE sensor on the 'TPMS exciter'.

Specification : 'SENSOR OPTION' is 'LOW'.




Fig.1) Sensor status (normal)
Fig.2) Executing "SET SENSOR STATUS"

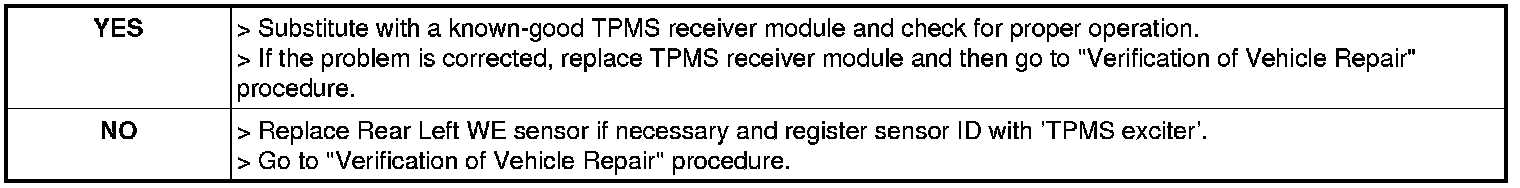

5. Is parameter within specifications?
