Starter Motor
Starter Motor
Component Connector End Views

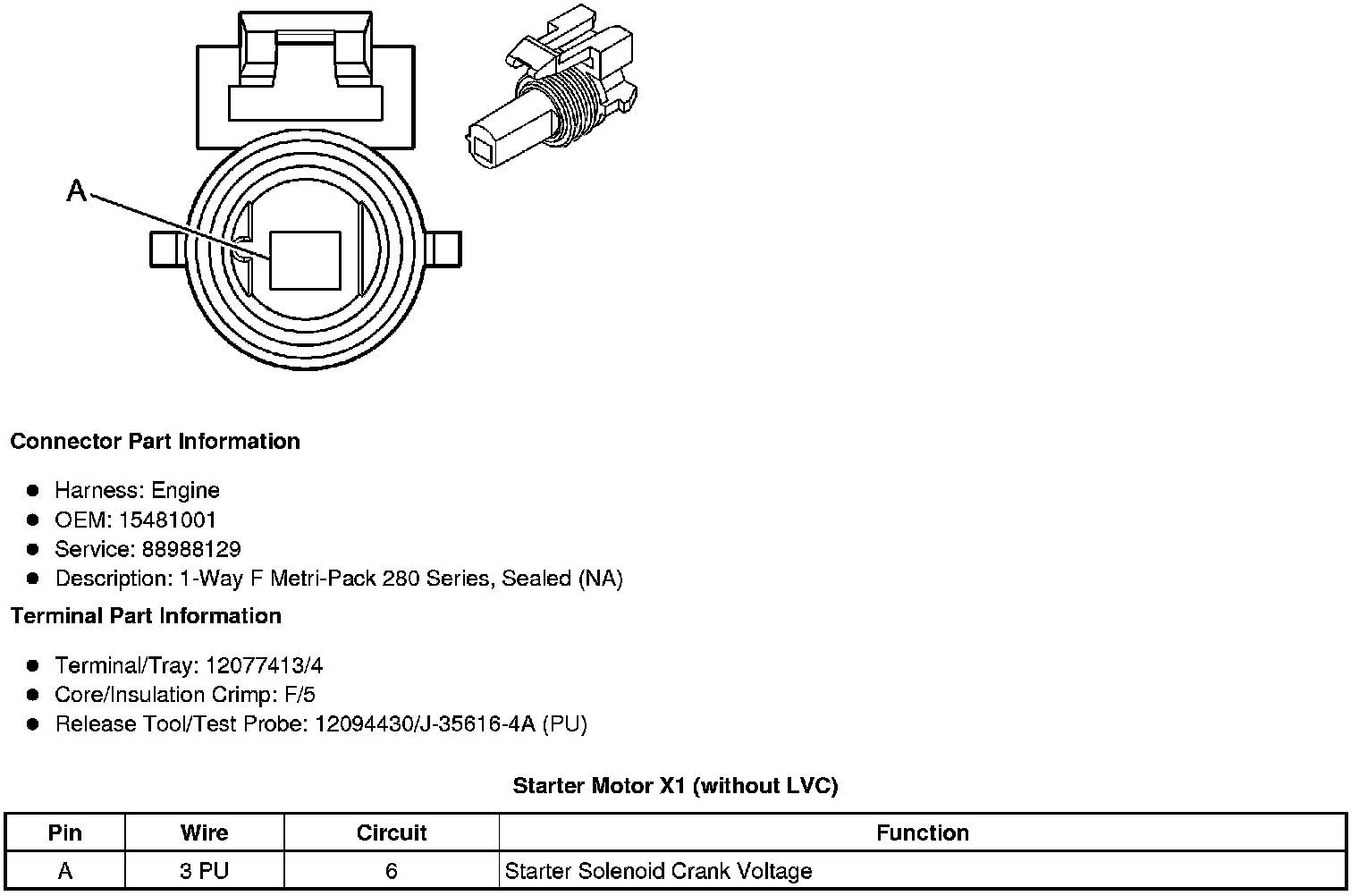

Starter Motor
X1 (without LVC)

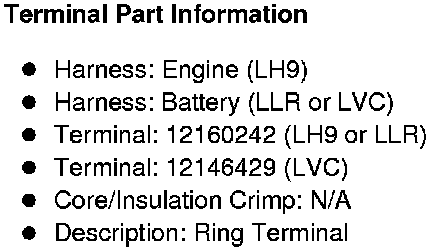

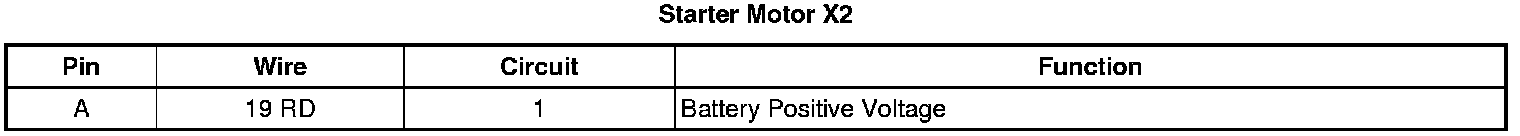

Starter Motor
X2
