Connector Views
>>
Fuel Tank Unit
Fuel Tank Unit

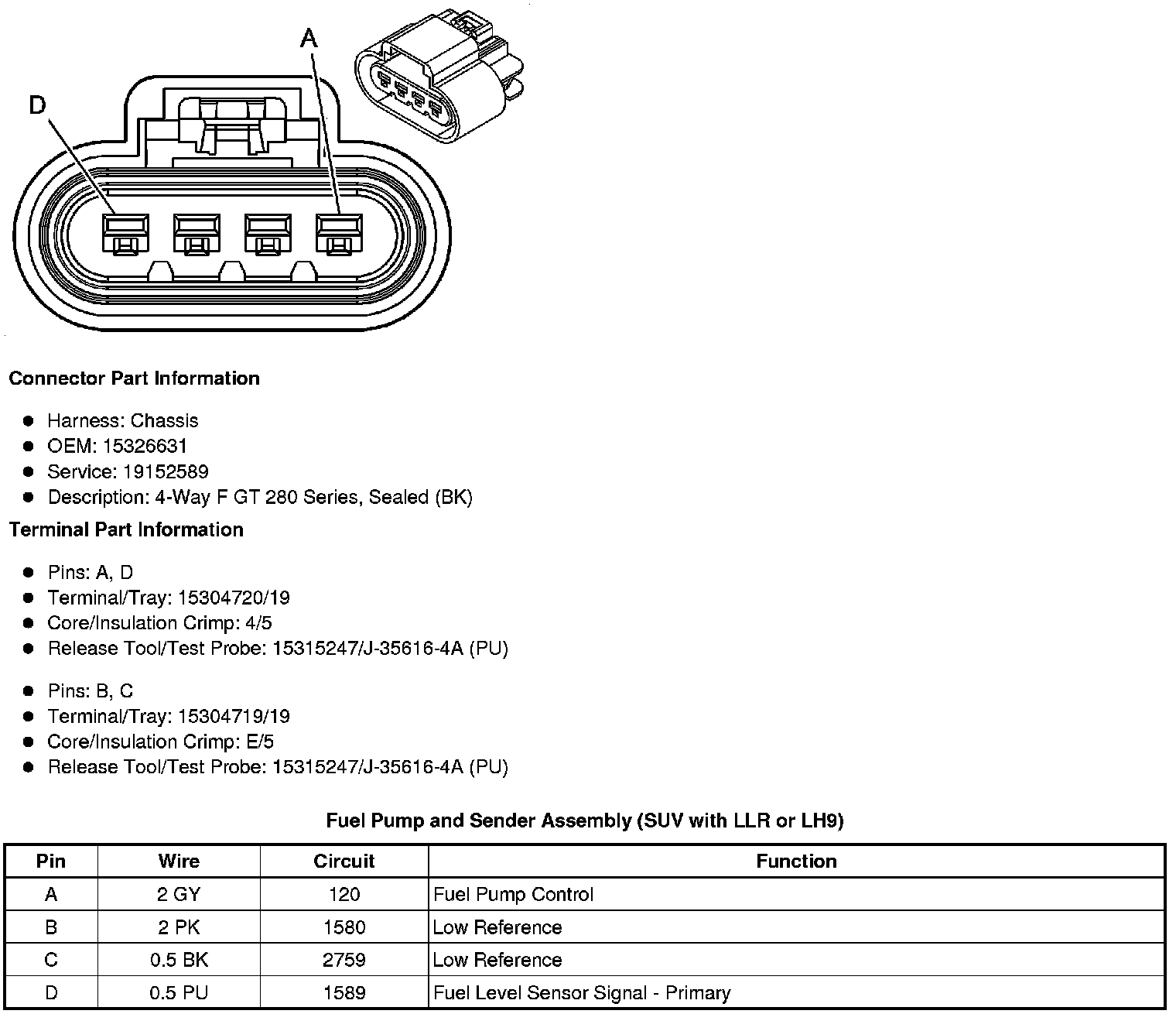

Fuel Pump and Sender Assembly (SUV with LLR or LH9)

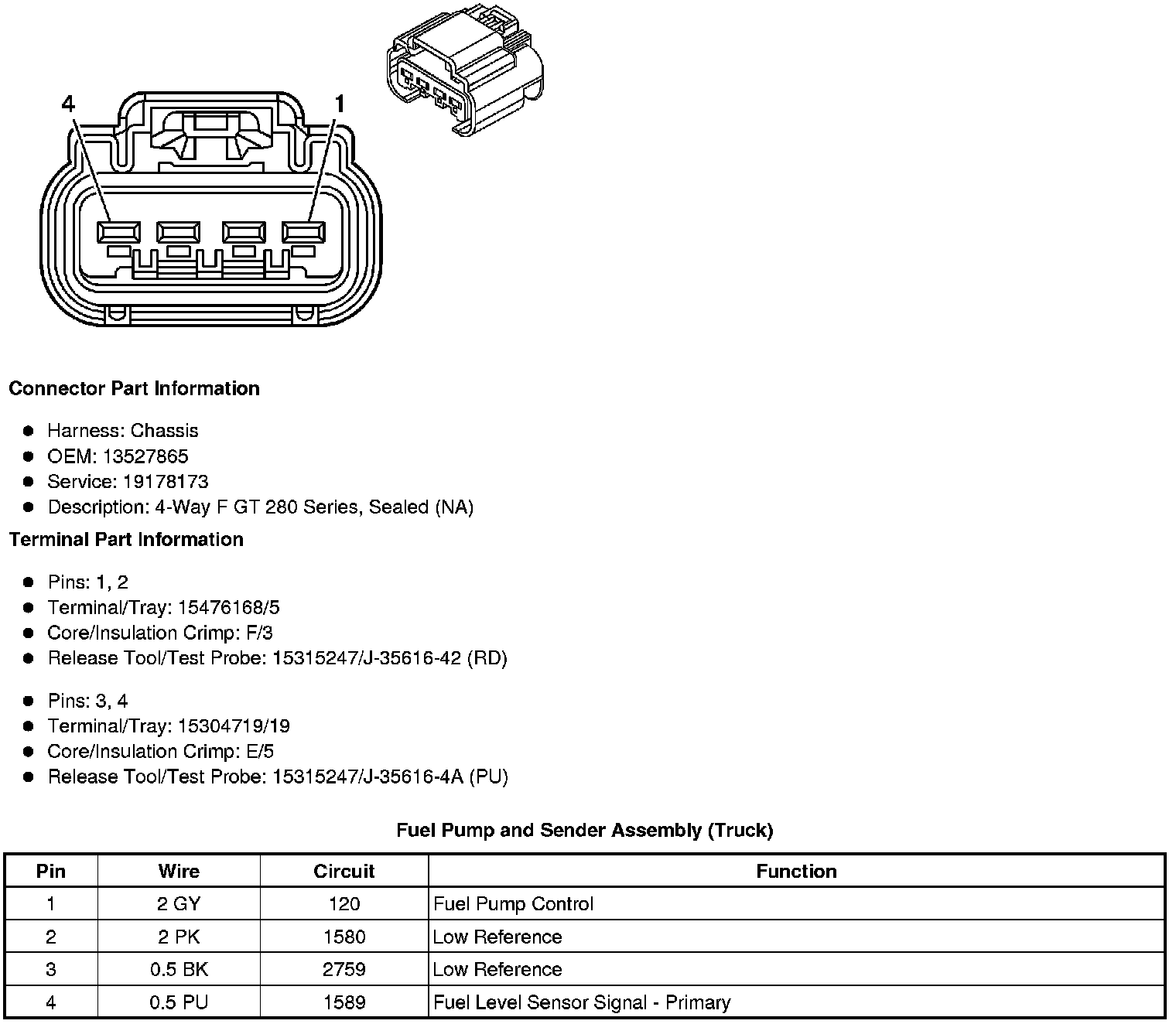

Fuel Pump and Sender Assembly (Truck)
