Home
>>
Hummer
>>
2009
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

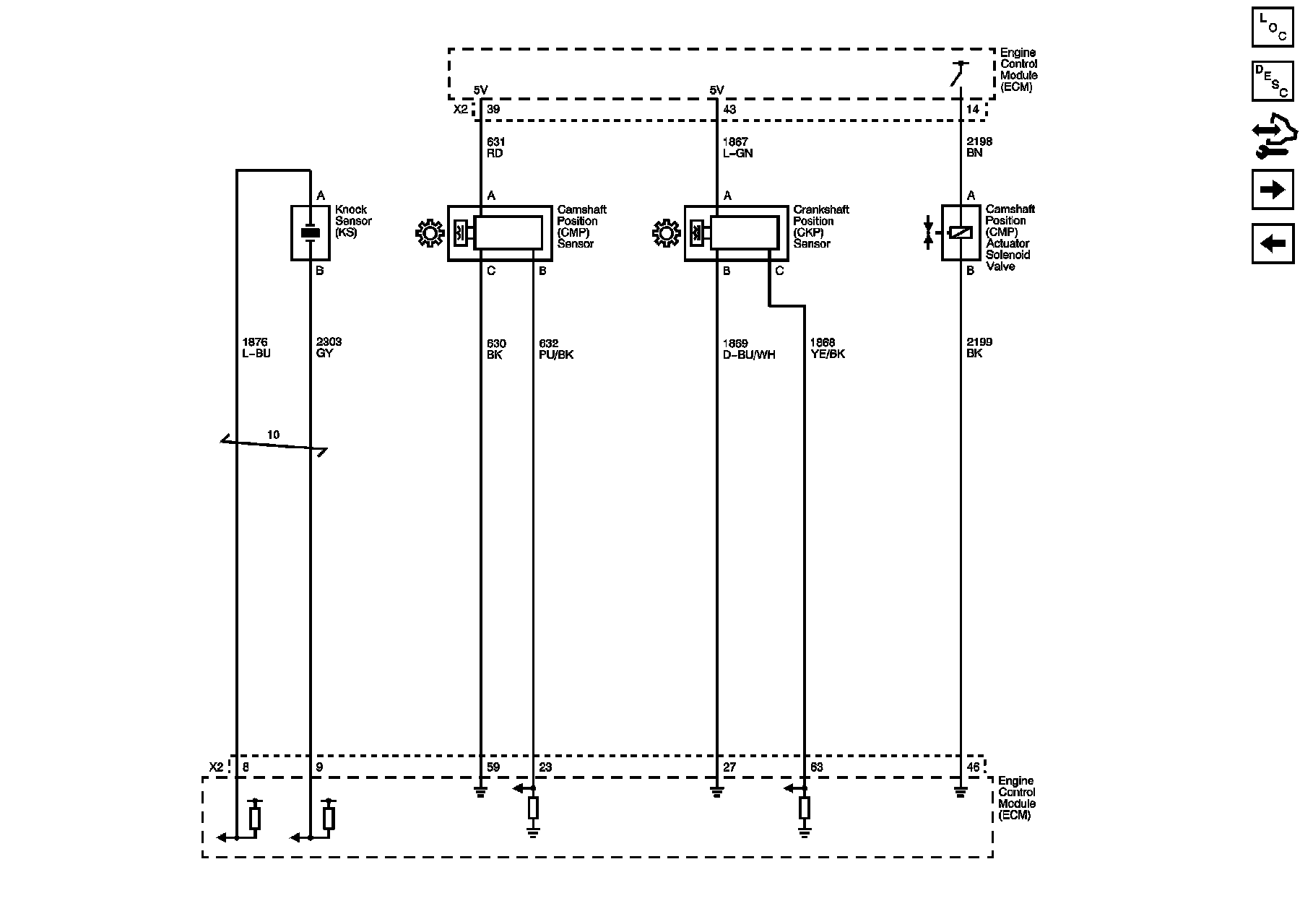

Engine Controls Schematic 6
Engine Controls Schematic 6
Engine Controls Schematics
Ignition Controls - Sensors
