Power Distribution Schematic 5
Power Distribution Schematic 5

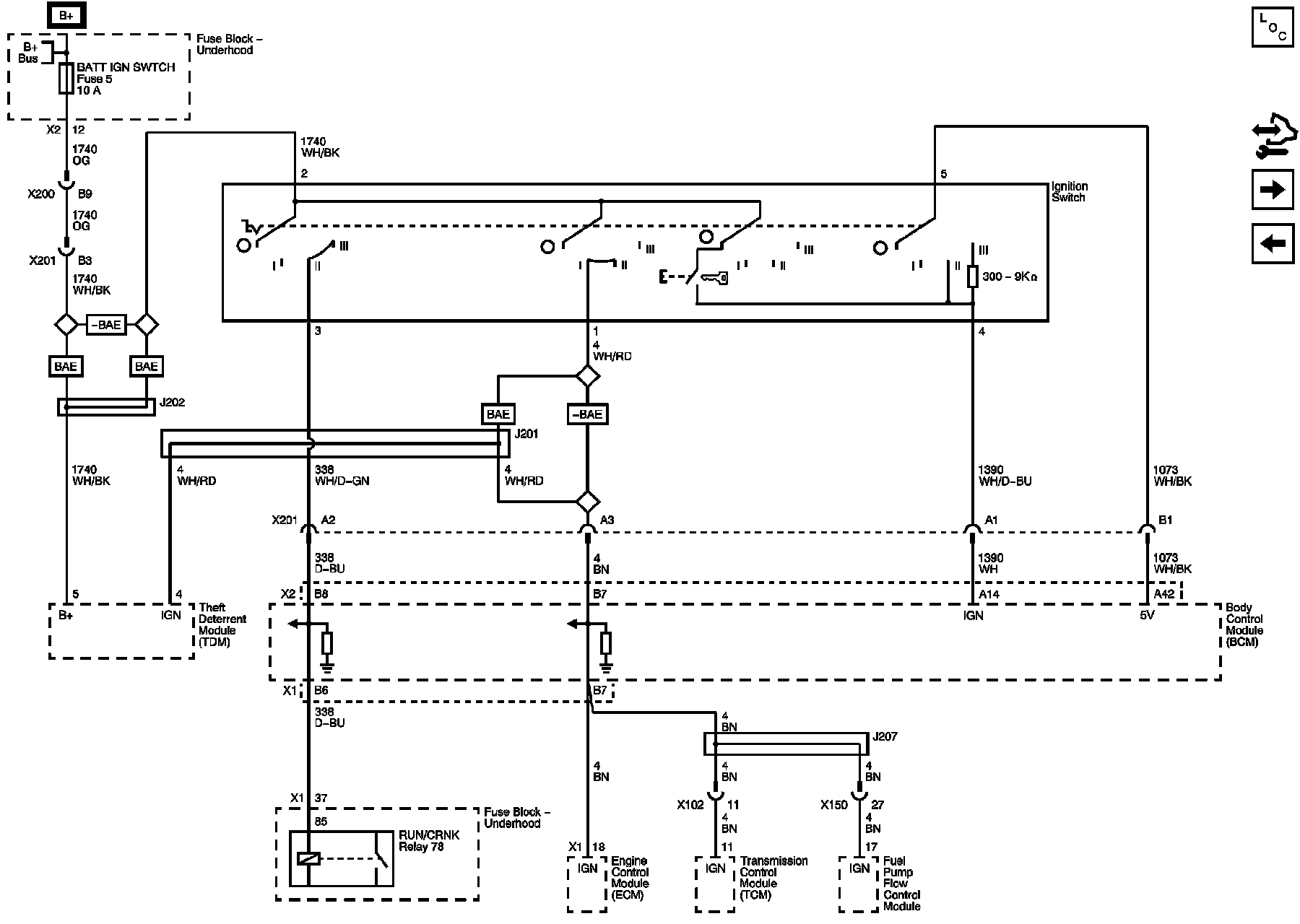

Power Distribution Schematics
Ignition Switch
and BATT IGN SWTCH Fuse
