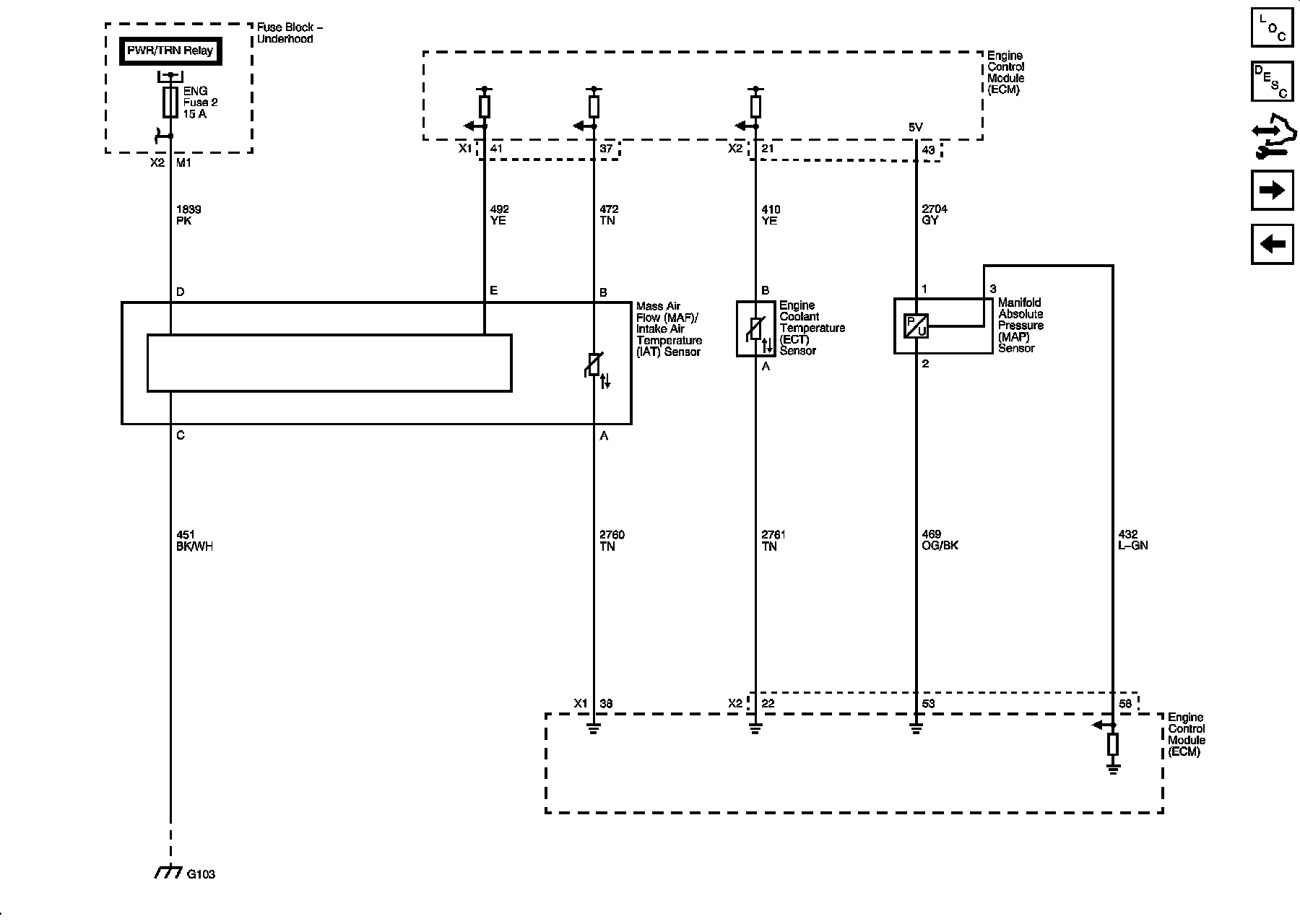

Engine Controls Schematic 3




Engine Controls Schematics

Engine Data Sensors - Pressure and Temperature
