Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

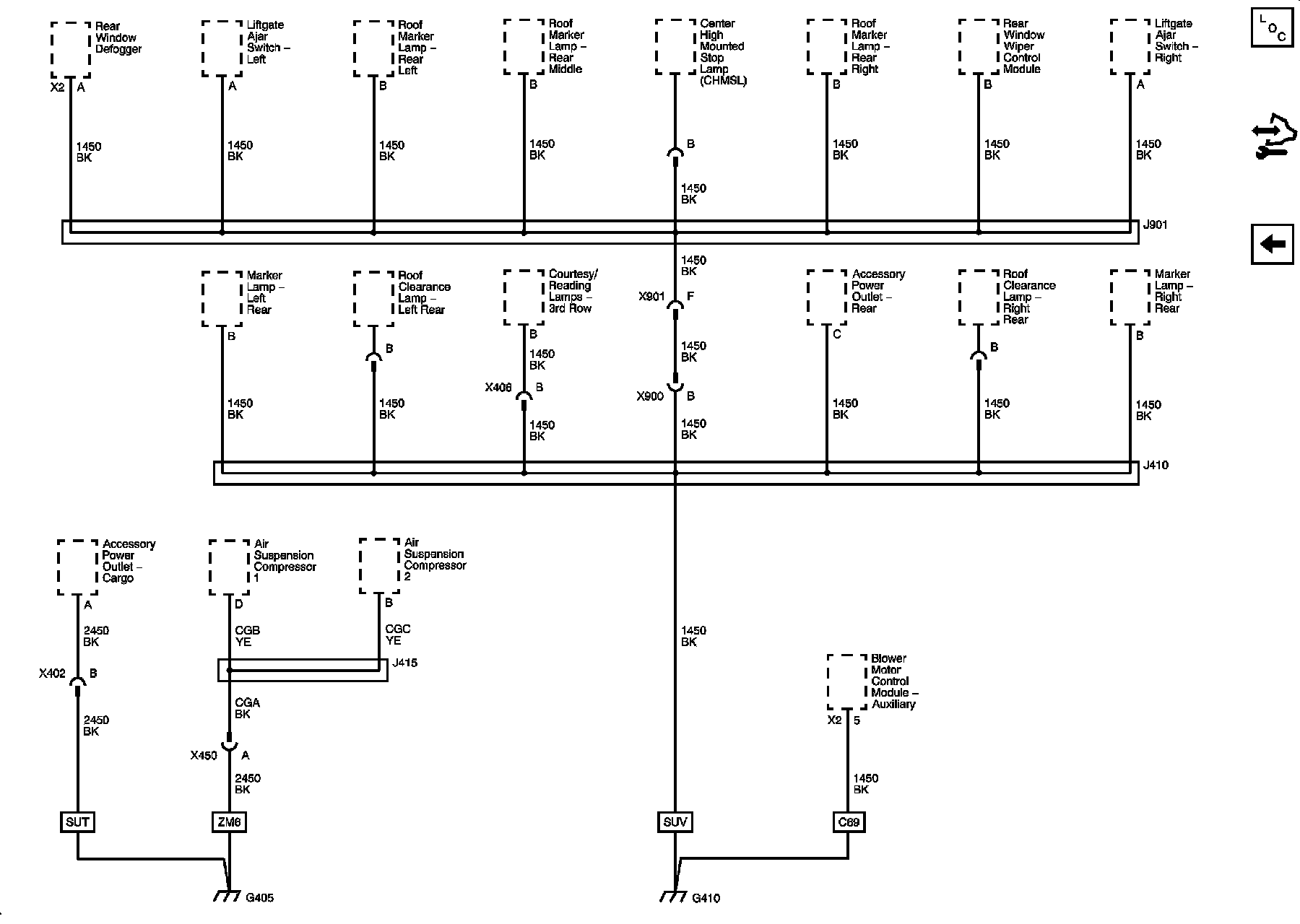

Ground Distribution Schematics
>>
G410
G410
Ground Distribution Schematics
G410
