Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
Transfer Case
Transfer Case
Control Schematics

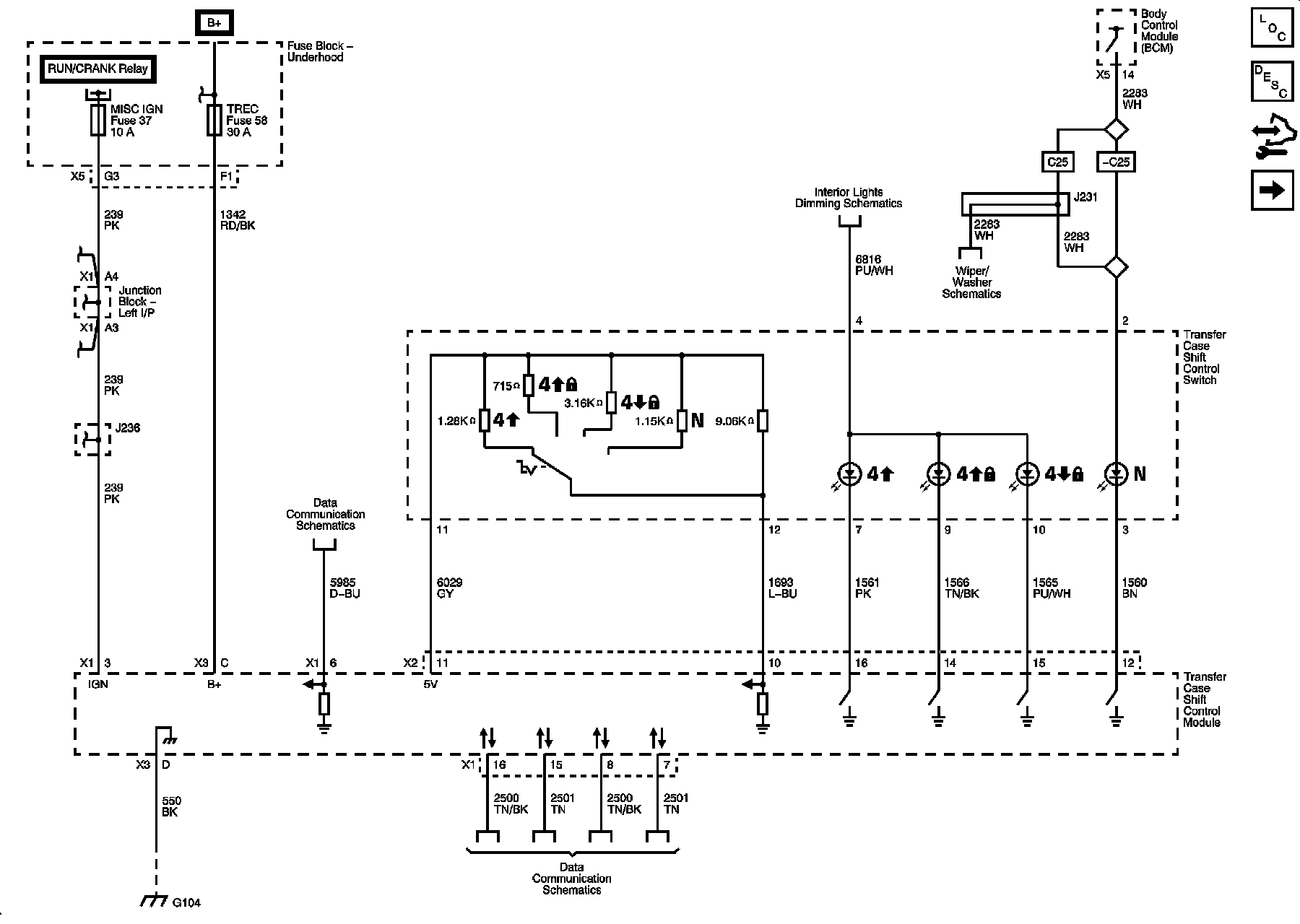

Power Ground and Shift Controls

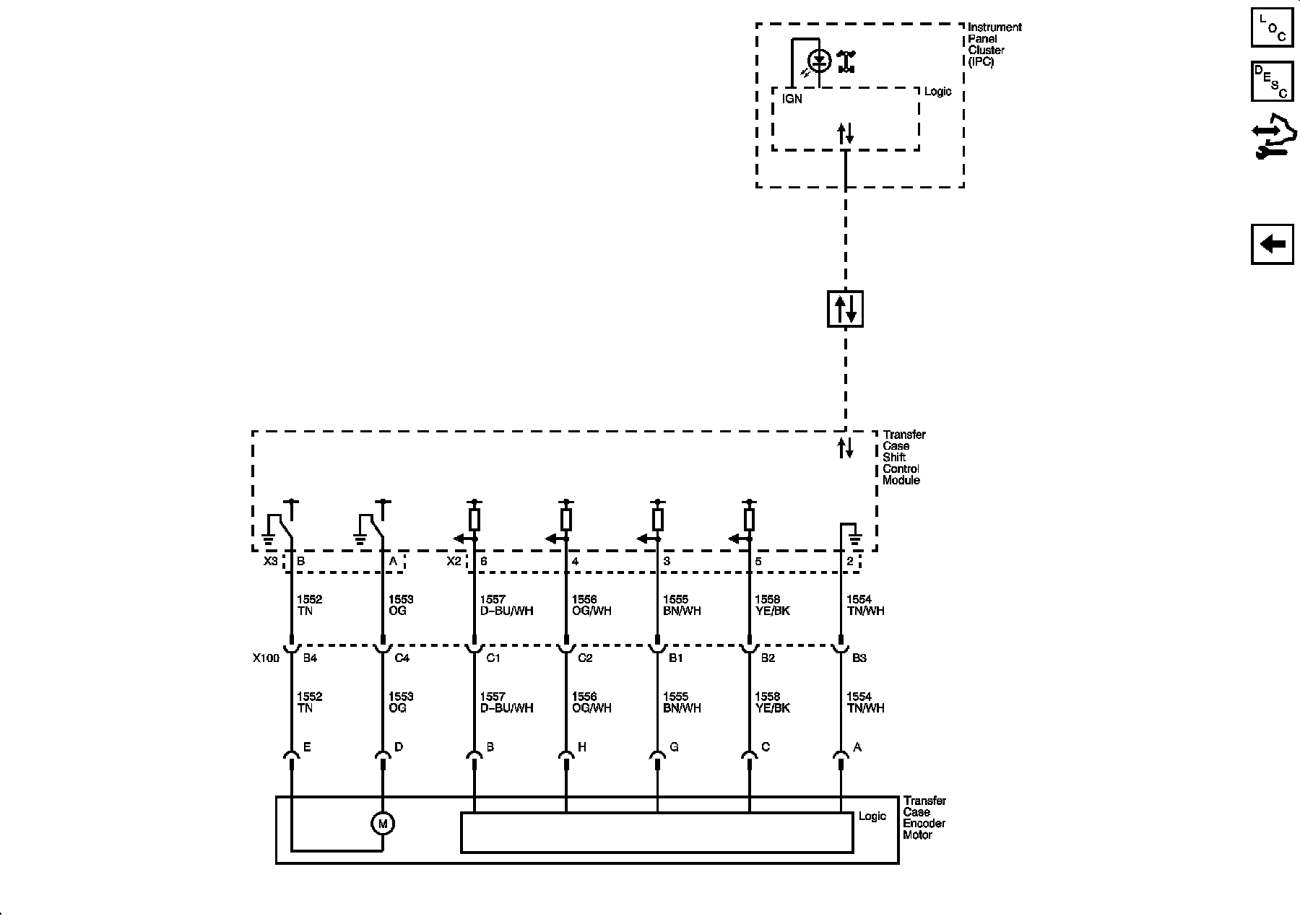

Transfer Case
Controls
