Seat Lumbar Vertical Motor Position Sensor - Driver
Seat Lumbar Vertical Motor Position Sensor - Driver

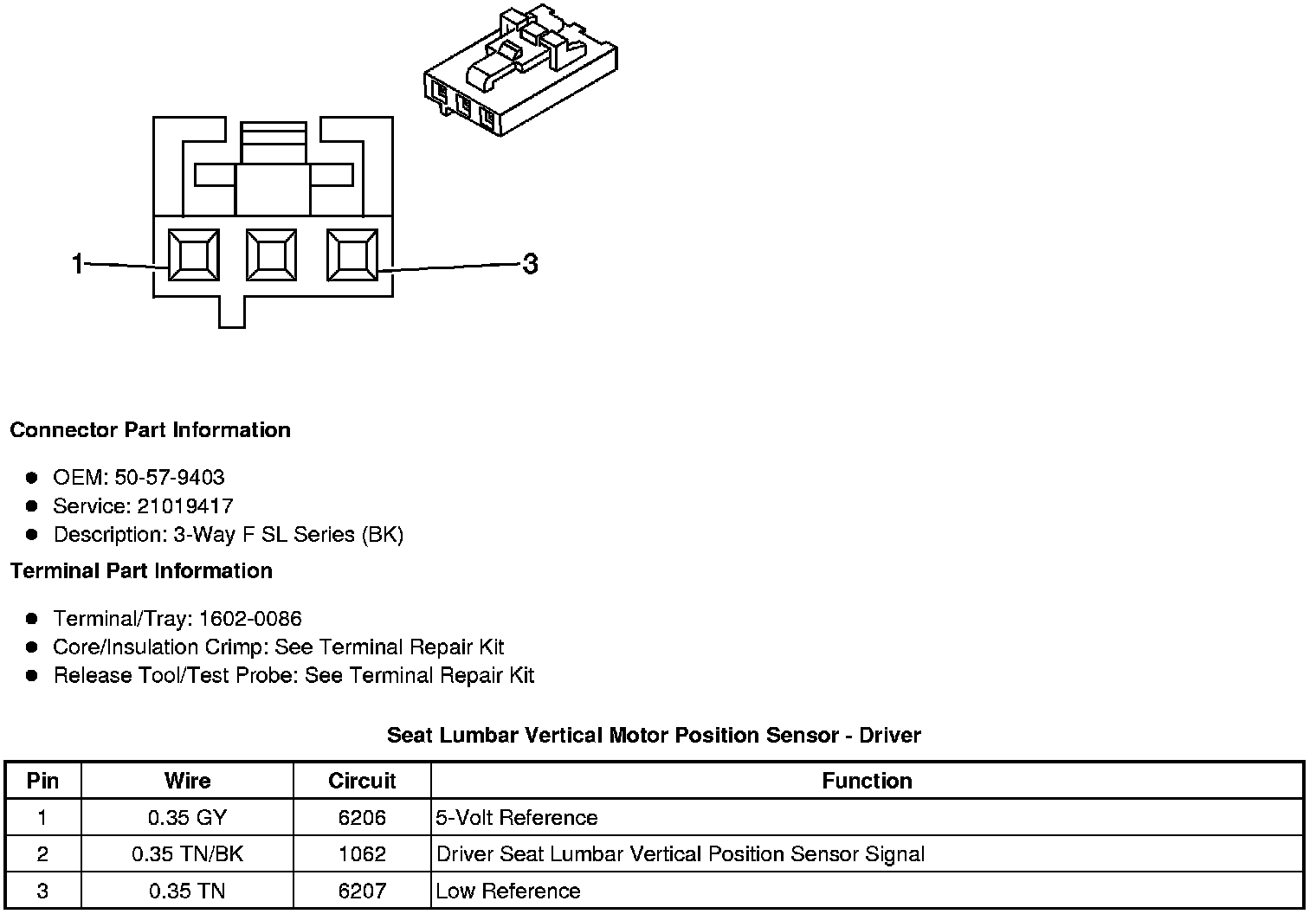

Component Connector End Views
Seat Lumbar Vertical Motor Position Sensor - Driver
