Home
>>
Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor Position Sensor
>>
Seat Front Vertical Motor Position Sensor - Driver
Seat Front Vertical Motor Position Sensor - Driver

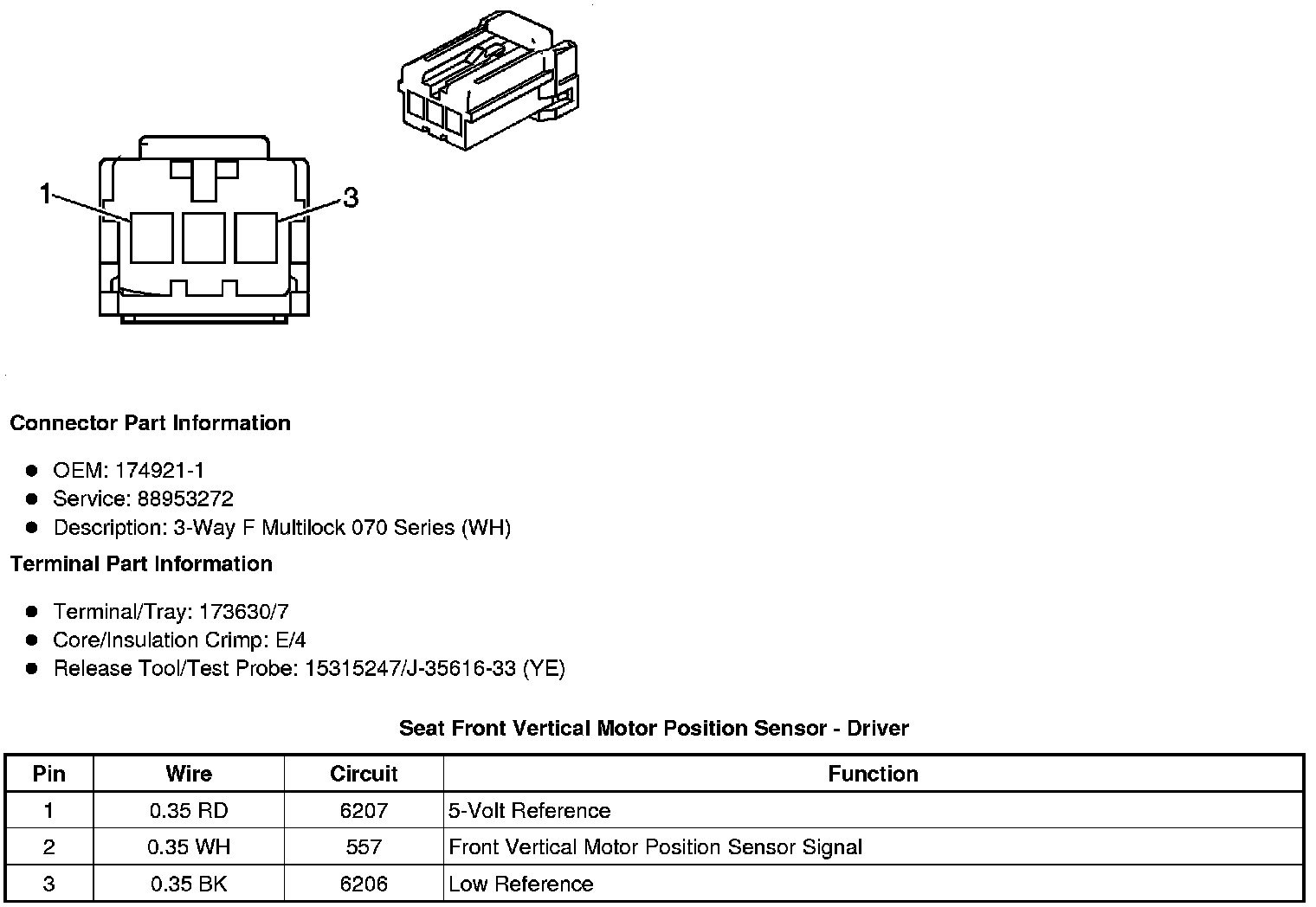

Component Connector End Views
Seat Front Vertical Motor Position Sensor - Driver
