Engine Controls Schematic 6



Engine Controls Schematics

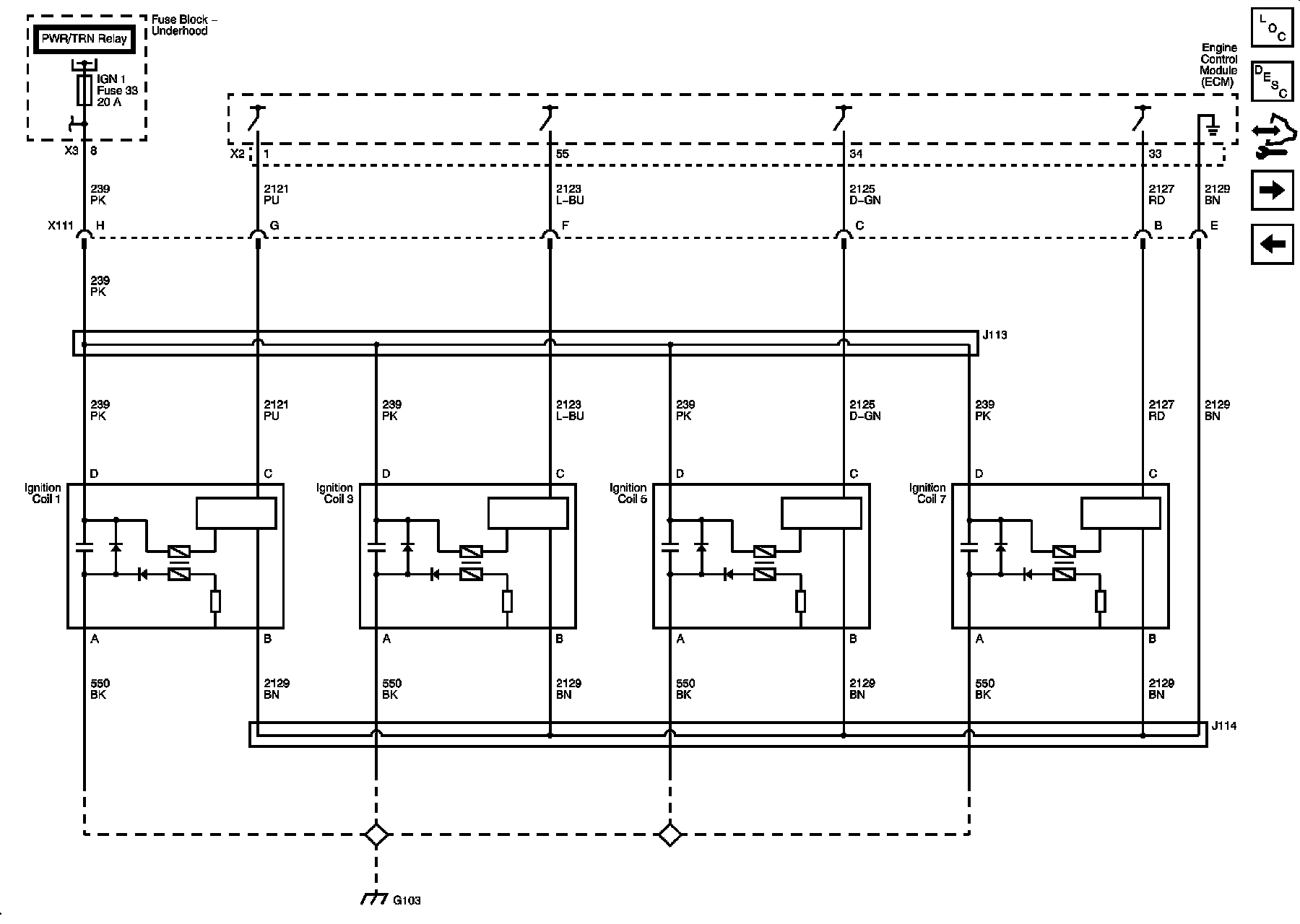

Ignition Controls - Ignition Coils 1, 3, 5, and 7
