Engine Controls Schematic 2
Engine Controls Schematic 2
Engine Controls Schematics

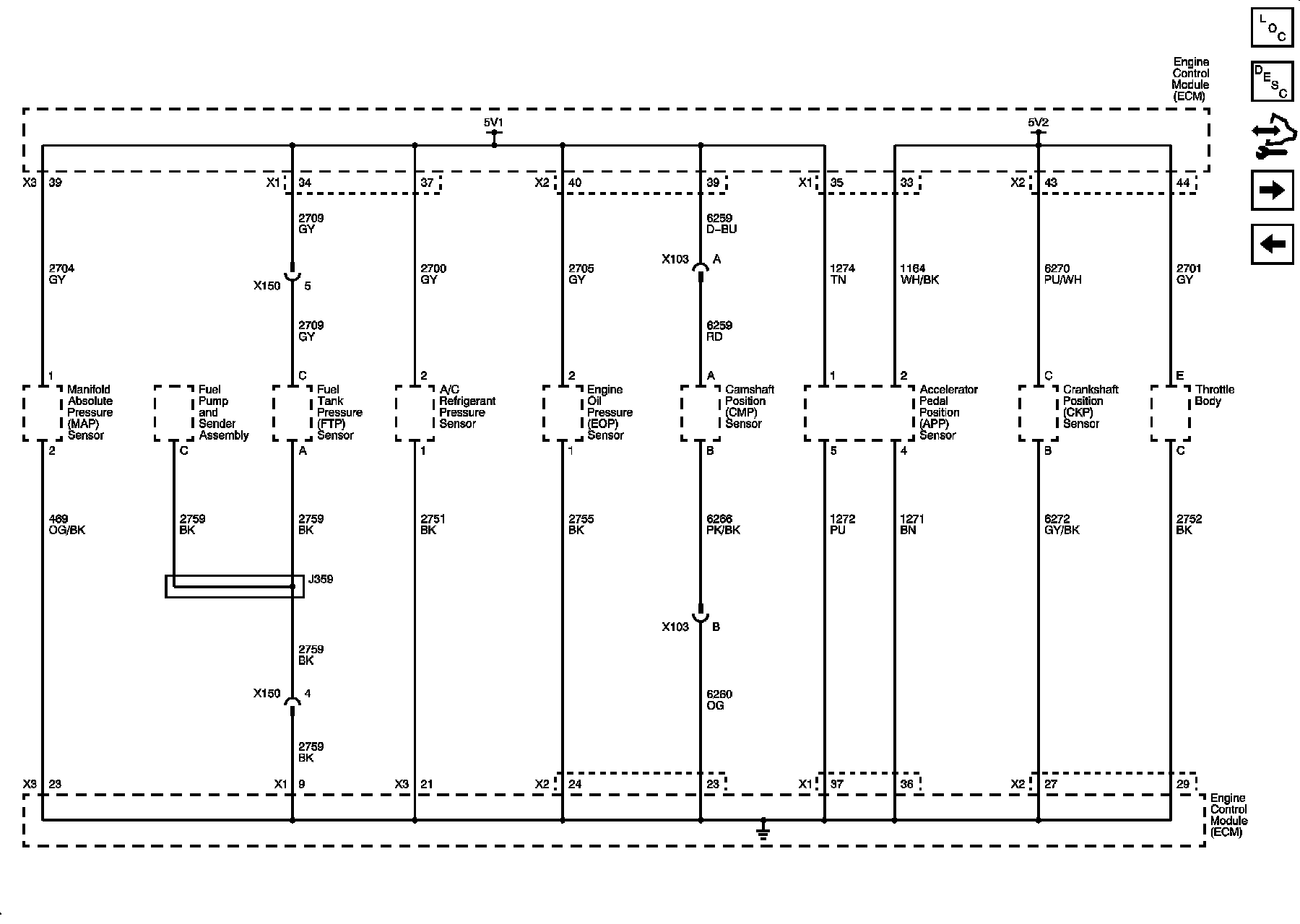

Engine Data Sensors - 5-Volt and Low Reference
