Engine Controls Schematic 9

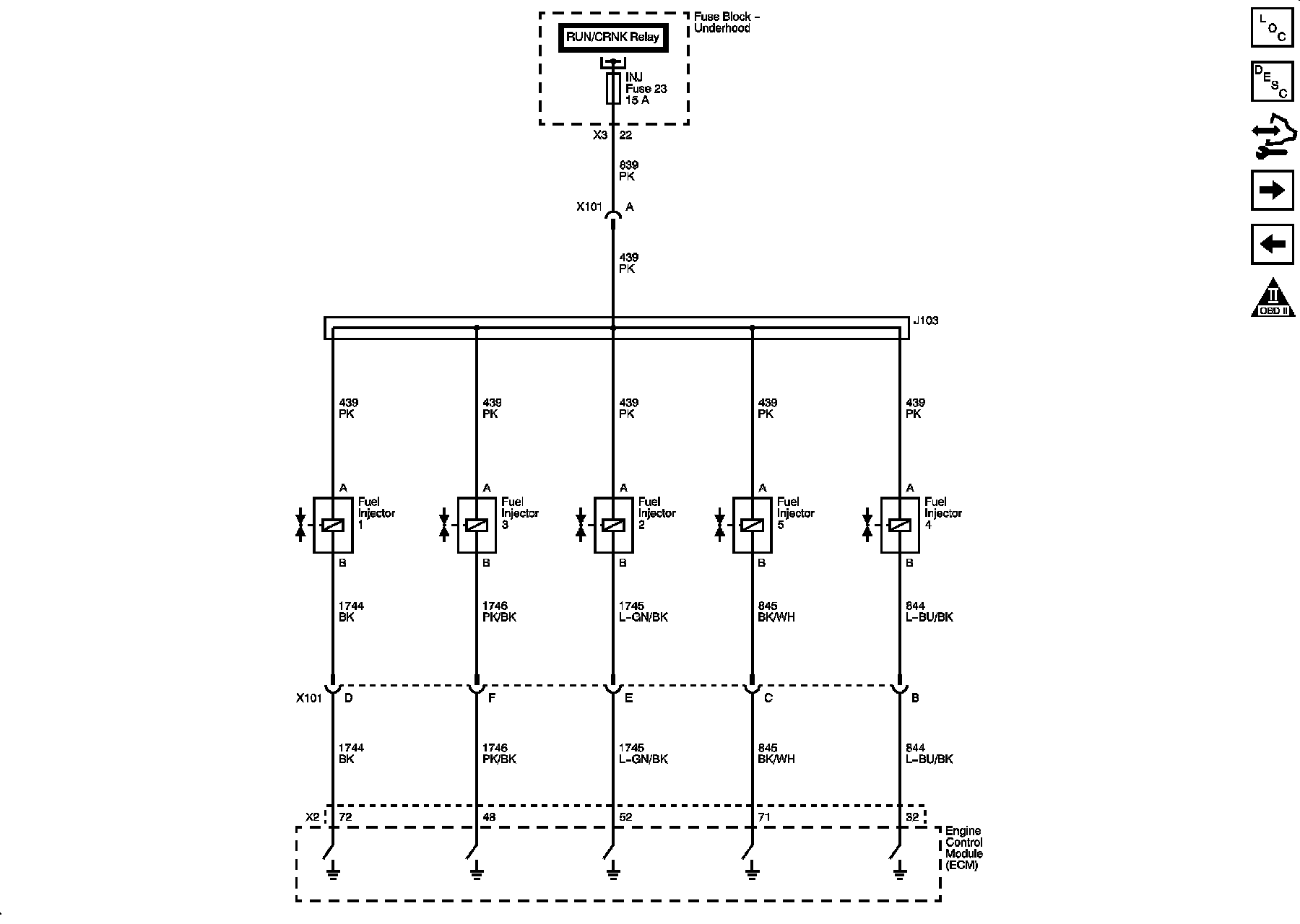

Engine Controls Schematic 9
Engine Controls Schematics
Fuel Controls - Fuel Injectors
