Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G 320
G 320

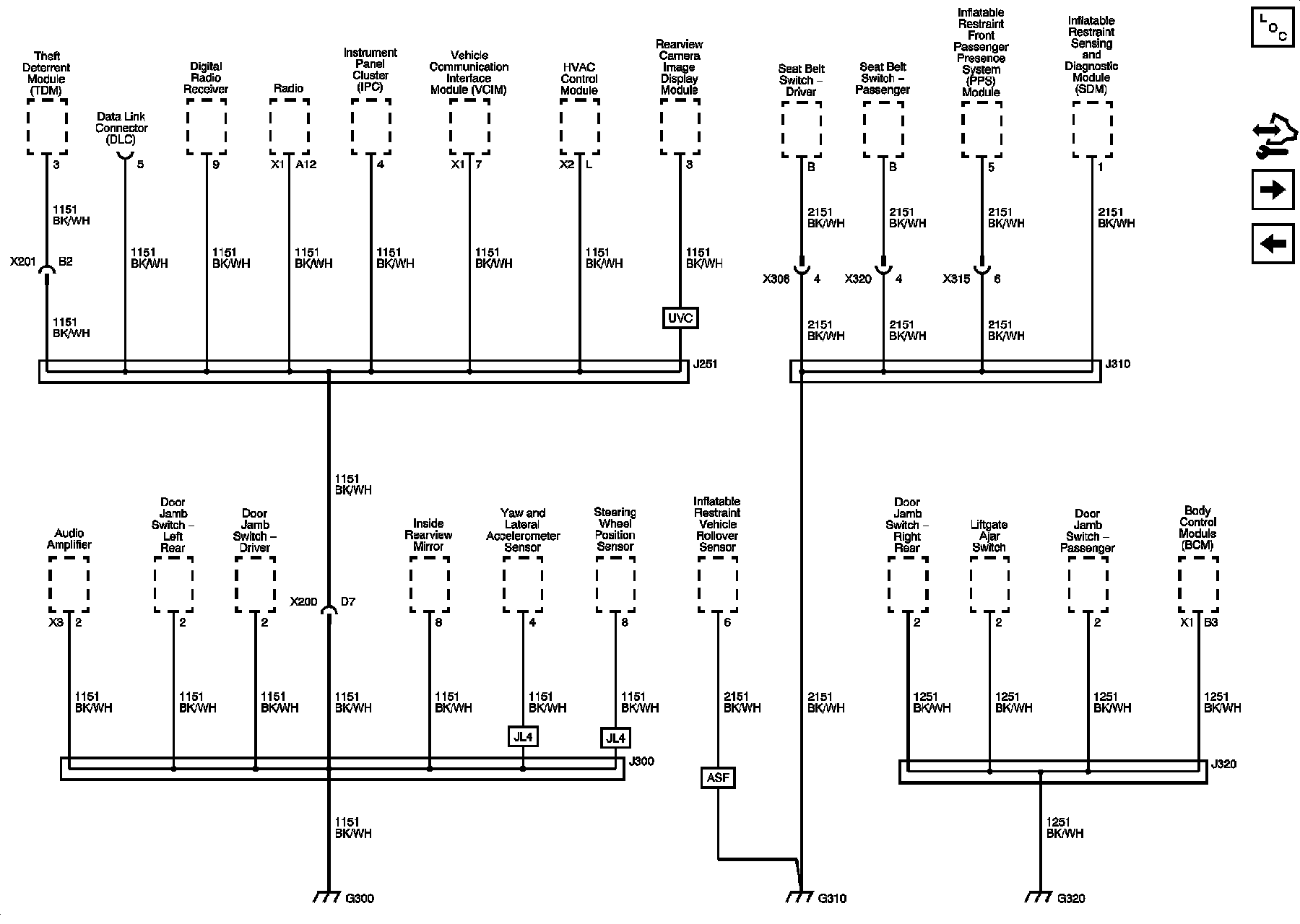

Ground Distribution Schematics
G300, G310, G320
